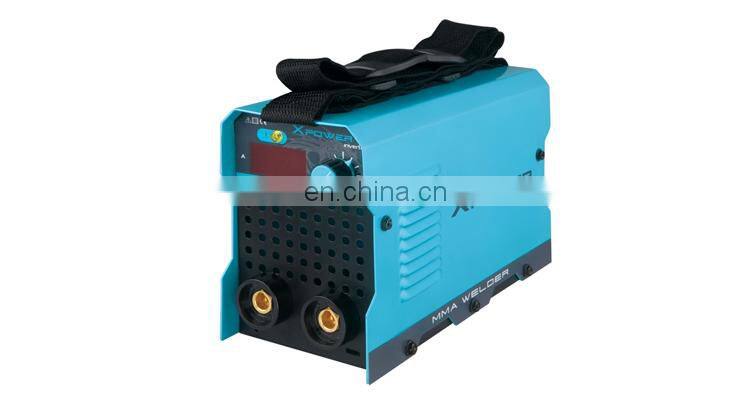

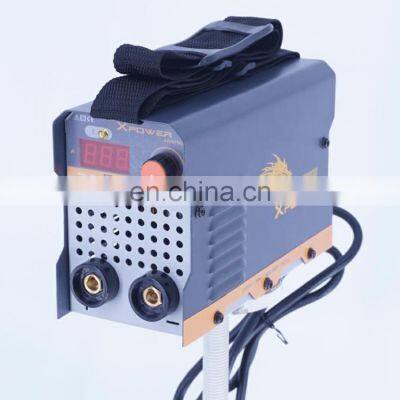

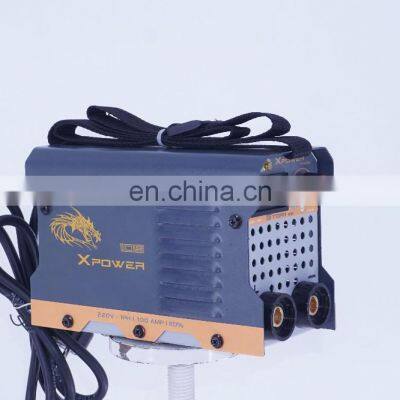

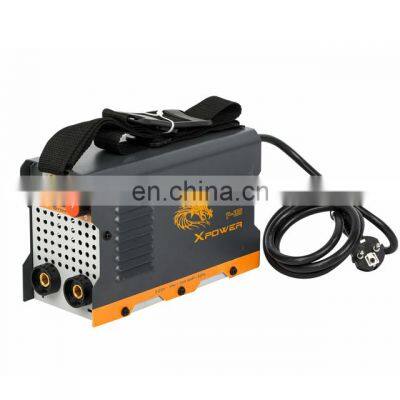

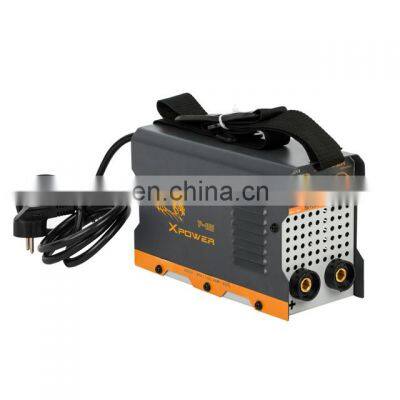

Portable Electric MOSFET Inverter DC ARC Welder MMA110 Mini Tractor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MIG Soldador Design MAG MMA Lift TIG 200PRO in StockNegotiableMOQ: 1 -
06mm 0810mm Wire 110220v Co2 Maquina de Soldar Mig Welding MachineNegotiableMOQ: 1
-
Mig Hylong Double Pulse Machine Welding AluminiumNegotiableMOQ: 1
-
RETOP Soldadores Tig Mma Mag Mig 4in1 200 AmpNegotiableMOQ: 1
-
MIG-250E CHINESE MIG MAG WELDER Portable Igbt dc Inverter Welding MachineNegotiableMOQ: 1
Product Description
Features
1. Single board IGBT technology, energy-efficient and low noise.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
Technical Specifications
ITEM | UNIT | STORM-105 | STORM-125 | STORM-145 | STORM-165 | STORM-185 | STORM-205 |
Input Power Voltage | V | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3 | 3.8 | 4.5 | 5.4 | 6.2 | 7.1 |
Output Current Range | A | 20-100 | 20-120 | 20-140 | 20-160 | 20-180 | 20-200 |
No-load Voltage | V | 62 | 62 | 60 | 60 | 60 | 60 |
Rated Duty Cycle | % | 40 | 40 | 40 | 40 | 40 | 40 |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Protection Grade | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S | |
Dimensions | MM | 220*92*135 | 246*102*155 | 246*102*155 | 246*102*155 | 286*102*155 | 286*102*155 |
weight | Kg | 2 | 2.45 | 2.65 | 2.75 | 3 | 3.25 |
Related products
Company Introduction
Certifications
Exhibition
FAQ
MOQ:
- The different products with different MOQ. Contact us with more details.
- If with stock, 1-5 sets could be acceptable as well.
Payment:
- TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
- Within 20 days after confirming the payment
Sample Issue
- Once price and order confirmed, we will be glad to send you the required samples for reference.
First time to use this kind of machine
- There is an English manual or guide video that show you how to use machine.
- If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
- 24 hours to support by E-mail/calling
- Free parts could be sent to you in machine warranty period.
Why choose us?
- We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
- We use all new components,IGBT tube, diode,capacitor and so on imported components.
- We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
- We provide Warranty period of 1 to 2 years for all our items.
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
