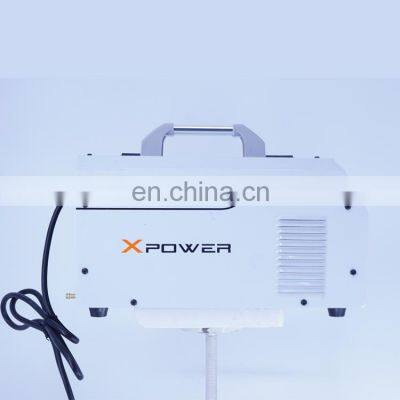

Mig-250 Igbt Inverter Co2 Mag Mma 220v Mig/mma 250 Mini Mig Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Pulse MIG Welder Advance IGBT Technology and Energy Saving Welding MachineNegotiableMOQ: 1 -
Double Pulse MIG Welder Advance IGBT Technology and Energy Saving Welding MachineNegotiableMOQ: 1
-
Automatic Tig 160AFactory Best New Design Tig-mma-mig-mag-welder Portatil Machine Mma Tig Mag Mig Welding MachineNegotiableMOQ: 1
-
New Tig Welder Machine Play Well Performance Other Welding Equipment Portable Tig Welding MachineNegotiableMOQ: 1
-
TIG-200PACDC Tig Welding Machine Ac Dc 200a Aluminum Inverter AC/DC Pulse Tig 1 Year,i Year 200A/160A 10.45KG 387*192*315mm 220VNegotiableMOQ: 1
Product Description
Main Features
1. MIG & MMA function in one machine.
2. Advanced IGBT technology, compact design, lightweight, and energy saving.
3. Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
4. Automatic over-current, over-heat and over-voltage protection.
5. Integrated design with a wire feeder built-in. Facilitate mobility operations.
6. Can be used with gas or without gas.
7. Applicable for welding low carbon steel and low alloy steel of different thickness.
ITEM | MIG-M145 | MIG-M165 | MIG-M185 | MIG-M205 |
Input Power Voltage V | AC230V | AC230V | AC230V | AC230V |
Input Power Frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 |
Rated Input Capacity KVA | 3.7 | 4.5 | 5.2 | 6.1 |
Output Current Range | 3.7 | 4.5 | 5.4 | 7.1 |
Output Current Range(MIG) A | 40-140 | 40-160 | 40-180 | 40-200 |
Output Current Range (MMA) A | 20-120 | 20-140 | 20-160 | 20-180 |
Load Voltage V | 16-21 | 16-22 | 16-23 | 16-24 |
Rated Duty Cycle % | 60 | 60 | 60 | 60 |
Wire Feed Speed M/min | 3-15 | 3-15 | 3-15 | 3-15 |
Gas Flow L/min | 15-20 | 15-20 | 15-20 | 15-20 |
Dimensions mm | 442*184*246 | 442*184*246 | 442*184*246 | 442*184*246 |
Related products
Company Introduction
Certifications
Packing & Delivery
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
