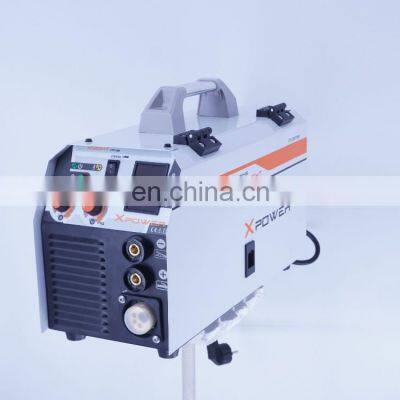

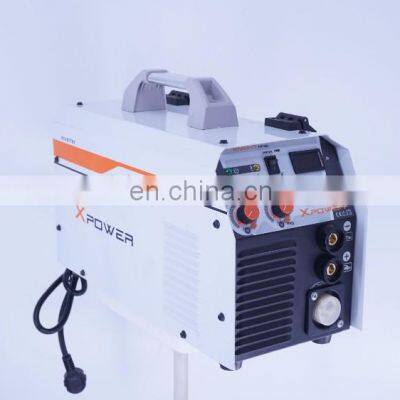

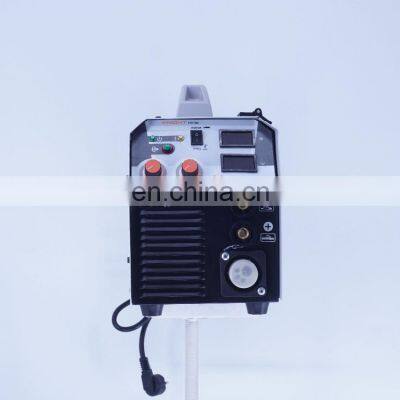

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > Gas Gasless Aluminium 200 Gas Mig Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Soldadura Tig Tig and Arc WelderNegotiableMOQ: 1 -
Multi-functional Inverter Welding Portable Mini 0810mm Wire Saldatrice Mig Mag Mma Tig 110v 220v Inverter Welding MachineNegotiableMOQ: 1
-
Mma Mig Tig 3 in 1 Gasno Gas Mig Inverter Welding MachineNegotiableMOQ: 1
-
Mig Welder Single Phase DCMIG/MAG Welder MIG 195 Metal Negotiable 1 Sets 31.8kg New Accessories 60% Rated Duty CycleNegotiableMOQ: 1
-
Double Pulse 200A IGBT Inverter MIG MAG MMA ARC Welding Aluminum Welding IGBT Technology 15-20l/min 50/60 Hz PWM Tech 60% /NegotiableMOQ: 1
Product Description
Main Features
1. MIG & MMA function in one machine.
2. Advanced IGBT technology, compact design, lightweight, and energy saving.
3. Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
4. Automatic over-current, over-heat and over-voltage protection.
5. Integrated design with a wire feeder built-in. Facilitate mobility operations.
6. Can be used with gas or without gas.
7. Applicable for welding low carbon steel and low alloy steel of different thickness.
ITEM | MIG-M145 | MIG-M165 | MIG-M185 | MIG-M205 |
Input Power Voltage V | AC230V | AC230V | AC230V | AC230V |
Input Power Frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 |
Rated Input Capacity KVA | 3.7 | 4.5 | 5.2 | 6.1 |
Output Current Range | 3.7 | 4.5 | 5.4 | 7.1 |
Output Current Range(MIG) A | 40-140 | 40-160 | 40-180 | 40-200 |
Output Current Range (MMA) A | 20-120 | 20-140 | 20-160 | 20-180 |
Load Voltage V | 16-21 | 16-22 | 16-23 | 16-24 |
Rated Duty Cycle % | 60 | 60 | 60 | 60 |
Wire Feed Speed M/min | 3-15 | 3-15 | 3-15 | 3-15 |
Gas Flow L/min | 15-20 | 15-20 | 15-20 | 15-20 |
Dimensions mm | 442*184*246 | 442*184*246 | 442*184*246 | 442*184*246 |
ACCRESSIORES
The default accessories
3M 15AK MIG torch 1.8M Electerde holder 1.2M earth clamp Brush & Mask
Can match it with something else
CO2 pressure reducing valve
Welding wire
gas tube
Company Introduction
Certifications
Exhibition
FAQ
MOQ:
- The different products with different MOQ. Contact us with more details.
- If with stock, 1-5 sets could be acceptable as well.
Payment:
- TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
- Within 20 days after confirming the payment
Sample Issue
- Once price and order confirmed, we will be glad to send you the required samples for reference.
First time to use this kind of machine
- There is an English manual or guide video that show you how to use machine.
- If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
- 24 hours to support by E-mail/calling
- Free parts could be sent to you in machine warranty period.
Why choose us?
- We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
- We use all new components,IGBT tube, diode,capacitor and so on imported components.
- We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
- We provide Warranty period of 1 to 2 years for all our items.
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
