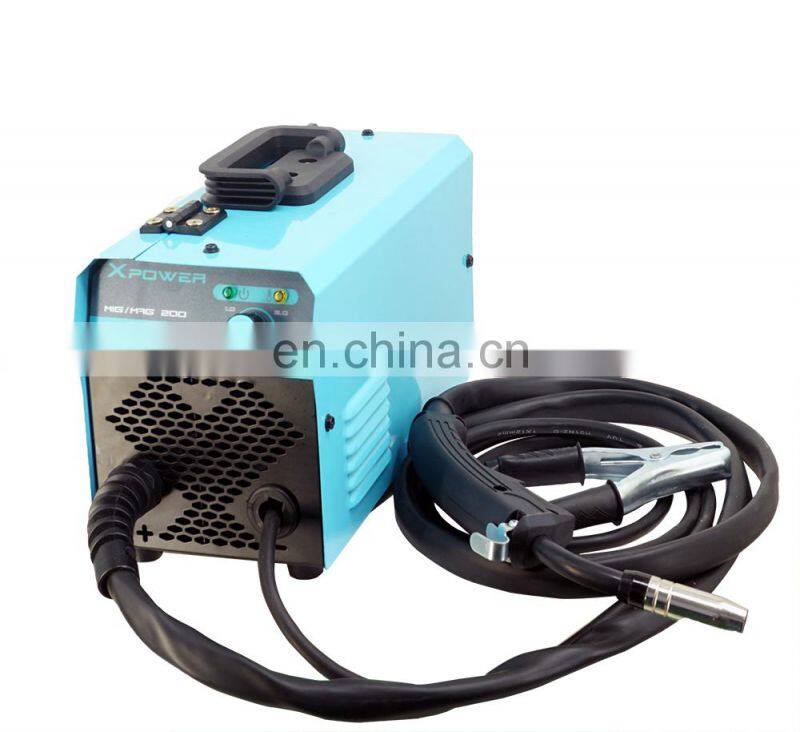

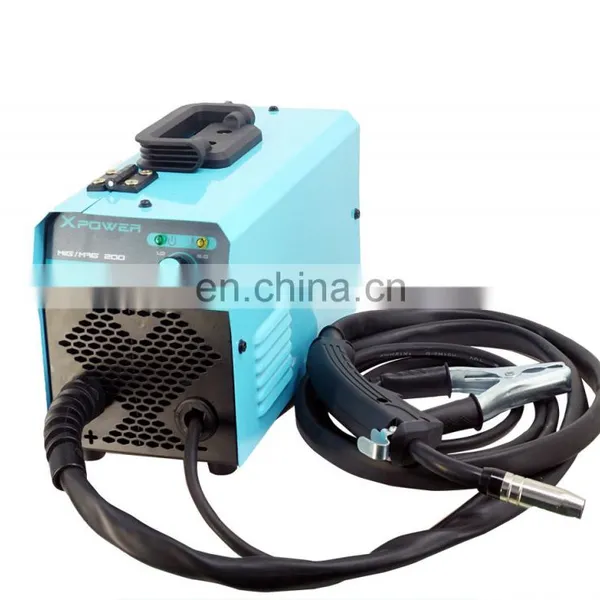

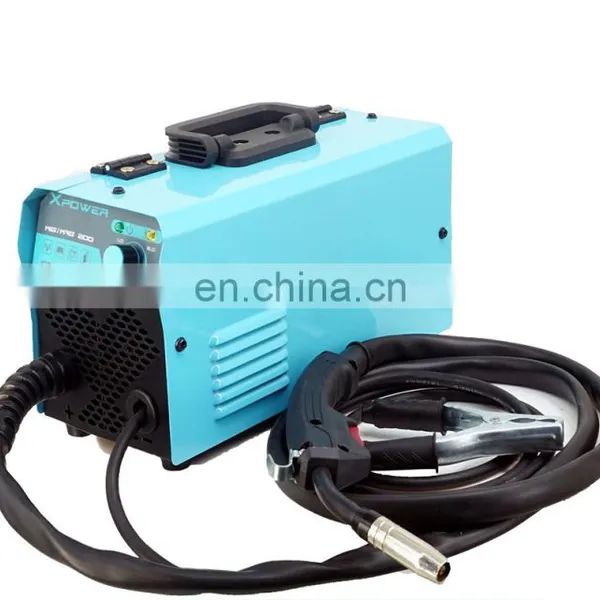

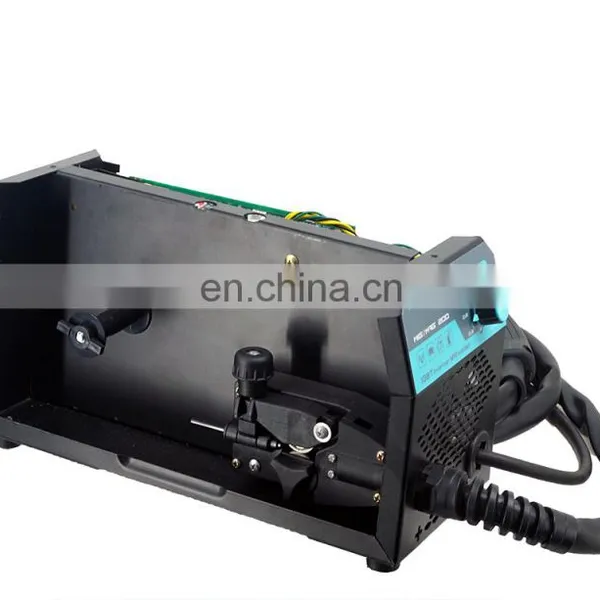

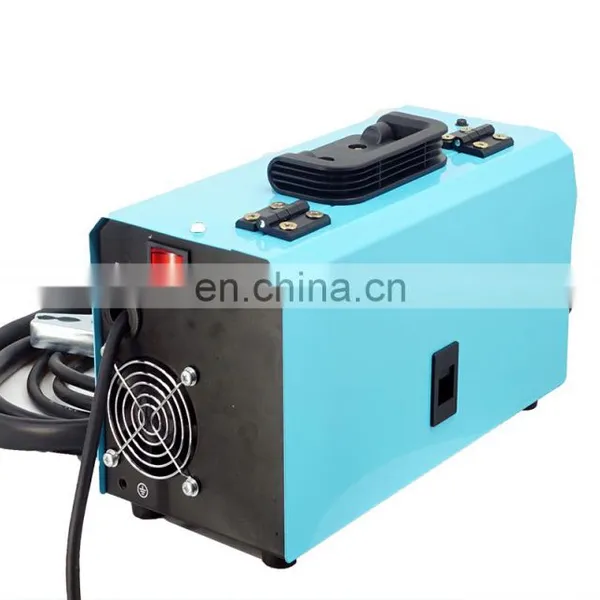

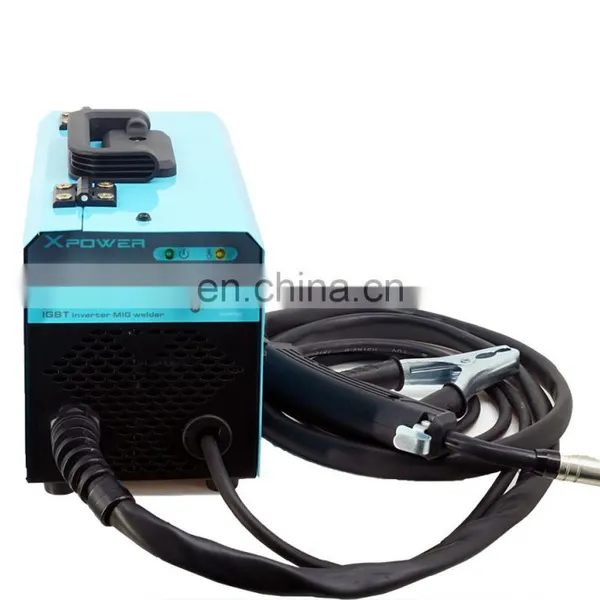

Gas Inverter Mig Mag 200 Welding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mig Welding Machine 140 Amp MIG in 1 Inverter Power Mig Mag Welder Welding MachineNegotiableMOQ: 1 -
Portable ac dc Aluminum Inverter Tig Welder AC Dc 200aNegotiableMOQ: 1
-
ac dc Cold Lift Tig 200p Welding MachineNegotiableMOQ: 1
-
ac dc Tig Welder Combo TIG-200PACDC Welding MachineNegotiableMOQ: 1
-
Everlast TIG-200PACDC Ac Dc Tig With Gas Welding Machine AC/DC TIG Pulse TIG Retop Welder AC 230V Carton BOX IGBT Pulse ProvidedNegotiableMOQ: 1
Product Description
Features
1. Advanced IGBT technology, energy-efficient and low noise.
2. Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
3. Effective spatter control, improved penetration and better welding effect.
4. Circuit protection against over current, over voltage,and over heat.
5. Built-in wire feeder and adjustable wire feeding speed.
6. Gas/No gas usage optional.
7. Compete with MIG torch, electrode holder, earth clamp, face mask, hammer.
2. Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
3. Effective spatter control, improved penetration and better welding effect.
4. Circuit protection against over current, over voltage,and over heat.
5. Built-in wire feeder and adjustable wire feeding speed.
6. Gas/No gas usage optional.
7. Compete with MIG torch, electrode holder, earth clamp, face mask, hammer.
Technical Specifications
ITEM |
UNIT |
MIG-140TY |
MIG-160TY |
Input Power Voltage |
V |
AC230V±10% |
AC230V±10% |
Input Power Frequency |
Hz |
50/60 |
50/60 |
Rated Input Capacity |
KVA |
3.8 |
4.5 |
Output Current Range (MIG) |
A |
40-140 |
40-160 |
Output Current Range (MMA) |
A |
20-120 |
20-140 |
Load Voltage |
V |
16-21 |
16-22 |
Rated Duty Cycle |
% |
60 |
60 |
Wire Feed Speed |
M/min |
3-15 |
3-15 |
Gas Flow |
L/min |
15-20 |
15-20 |
Dimensions |
MM |
340*140*275 |
340*140*275 |
weight |
Kg |
6.8 |
7 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
