Home > Industrial Equipment & Components > Welding Equipment > Plasma Welder > Ac Tig Dc Tig Mma Cut 4 in 1 Machine Cutting 18mm Plasma Cutter 110/120/30 460*210*360 AC 230V±10% Metal Shell Provided Welding

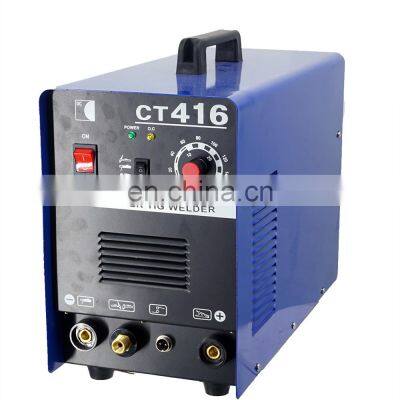

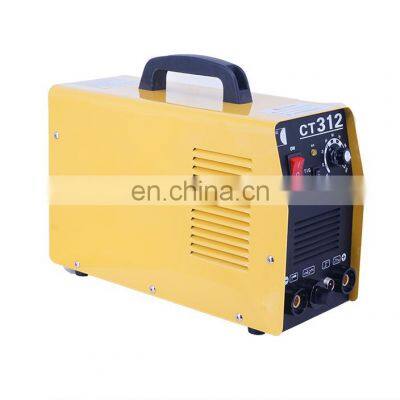

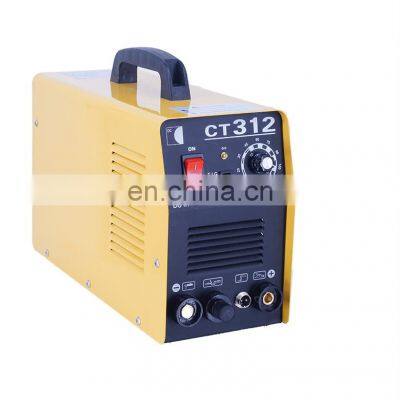

Ac Tig Dc Tig Mma Cut 4 in 1 Machine Cutting 18mm Plasma Cutter 110/120/30 460*210*360 AC 230V±10% Metal Shell Provided Welding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plasma Cutter Inverter DC IGBT Portable Air Plasma Cutter For Sale CUT-40NegotiableMOQ: 1 -
Plasma Cutter Tig ac Cut Plasma Cutter Plasma WelderNegotiableMOQ: 1
-
Mini Plasma Cutter Metal Cut 50 60NegotiableMOQ: 1
-
Soldadora y Cut Plasma 3 en Unoair Plasma Cutter Air 110vNegotiableMOQ: 1
-
Cut 50 Air Plasma Cutter 100NegotiableMOQ: 1
Product Description
Features
1. Advanced inverter technology, energy-efficient and low noise.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Suitable for cutting carbon steel, stainless steel, alloy steel, copper and aluminum, etc.
7 .Widely used in iron structure construction, manufacturing and automobile maintenance.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Suitable for cutting carbon steel, stainless steel, alloy steel, copper and aluminum, etc.
7 .Widely used in iron structure construction, manufacturing and automobile maintenance.
Technical Specifications
ITEM | UNIT | CT-312 | CT-416 | CT-520 |
Input Power Voltage | V | AC380V±10% | AC380V±10% | AC380V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.5 | 4.5 | 5.5 |
Output Current Range (MMA) | A | 10-110 | 10-140 | 10-160 |
Output Current Range (TIG) | A | 10-120 | 10-160 | 10-190 |
Output Current Range (CUT) | A | 10-30 | 10-40 | 10-50 |
No-load Voltage | V | 230 | 240 | 240 |
Rated Duty Cycle | % | 60 | 60 | 60 |
Arc Start | HF | HF | HF | |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 |
Air Pressure | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Protection Grade | IP21S | IP21S | IP21S | |
Dimensions | MM | 410*155*300 | 460*210*360 | 510*210*360 |
weight | Kg | 8.6 | 12.7 | 17.8 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
