WIRE FEED WELDERS MIG500

WIRE FEED WELDERS MIG500 photo-1

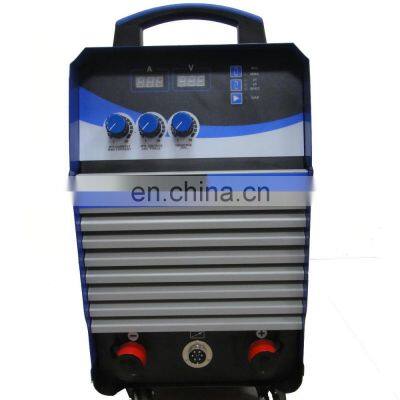

WIRE FEED WELDERS MIG500 photo-2

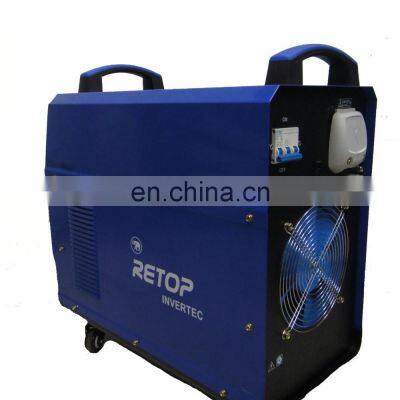

WIRE FEED WELDERS MIG500 photo-3

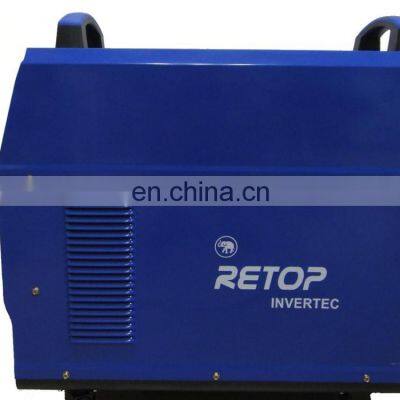

WIRE FEED WELDERS MIG500 photo-4

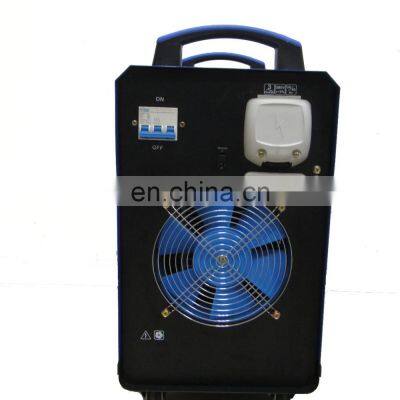

WIRE FEED WELDERS MIG500 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

FEATURES AND BENEFITS

* Based on the technology of the HF inverter with IGBT module.The frequency is as high as 20KHZ. The reaction is fast
* The PWM control method guarantees the quality and stable performance
* Digital display of current and voltage adjustment before welding. Direct and convenient
* Applicable for all the welding positions as the welding current will be automatically adjusted when the stretching length is not more than 30mm
* Stable welding with strong capability against power fluctuation (310V-450V)



TECHNICAL SPECIFICATIONS

Input Power (V):

AC380V±15%

Input Power Frequency (Hz):

50/60

Rated Output Voltage(V):

16.5~50

Rated Input Current(A):

37.5

Welding Amperage Range (A):

80~500

Duty Cycle (%):

60

Power Factor (COSφ):

0.93

Efficiency (%):

85

Wire Feeder:

Separated

Wire Feed Speed Range (m/min):

3~15

Insulation Grade:

F

Protection Grade:

IP21

Wire Diameter (mm):

1.0/1.2/1.6

Net Weight (kg):

42

Dimensions (mm):

685*302*660





































QUALITY & INSPECTION

* Cooperate with good reputation suppliers

* QC check from spare parts to finished products

* Strict accelerated aging testing on every each machine before packaging



PACKAGE

Standard export cartons with plastic foam normally

* Customized package also available per your requirements



PAYMENT TERMS

* T/T

* Confirmed irrevocable letter of credit (L/C) opened in our favor
