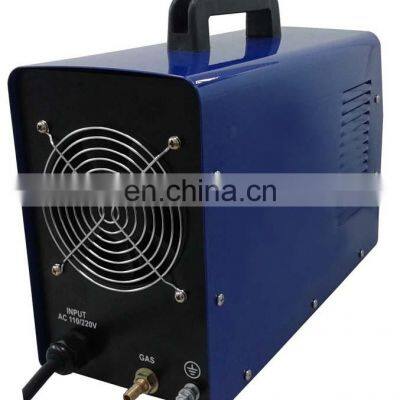

110/220V Inverter DC Mosfet TIG Welding Machine |  | ITEM | TIG-200M | | Input Power Voltage | AC110/220V | | Input Power Frequency | 50/60HZ | | Rated Input Capacity | 5.8KVA | | TIG Output Current Range | 200A | | MMA Output Current Range | 160A | | No-Load Voltage | 60% | | Rated Duty Cycle | 3-15M/min | | Arc Start | 16-24V | | Dimensions | 271*155*295mm | | Net weight | 13KG |
1.Advanced MOSFET inverter PWM technology.
2.HF,non-contact arc starting eliminates tungsten and material contamination time after time.
3.Little spatter,stable arc and good shaping.
4.Automatic high temperature shutdown.
5.Both TIG(GTAW)&Stick(SMAW) process applicable.Small package,lightweight,adaptable and
easy to carry around.
6.Light industrial applications:production line work;plant maintenance;garage/job shops;
fabrication;ect.
7.Applicable for TIG and MMA welding of various metals,such as carbon steel,stainless steel,
alloy steel,copper,etc. |
|---|
ITEM | UNIT | TIG-160A | TIG-200A | TIG-250A | Input power voltage | V | AC110/220V | AC110/220V | AC110/220V | Input power frequency | HZ | 50/60 | 50/60 | 50/60 | Rated input capacity | KVA | 4.1 | 5.8 | 7.3 | Output current range(TIG) | A | 140 | 160 | 190 | Output current range(MMA) | A | 120 | 140 | 160 | No-load voltage | V | 56 | 56 | 56 | Arc start | | HF | HF | HF | Power factor | cosΦ | 0.93 | 0.93 | 0.93 | Rated duty cycle | % | 60 | 60 | 60 | Dimensions | mm | 371x155x295 | 371x155x295 | 500x210x360 | Weight | kg | 12 | 12 | 26 |
|
|---|
| |
|---|
| 4m TIG Torch | 1.8m Electrical Holder | 1.2m earth clamp | Mask and brush |
|---|
| | | | |
|---|
| WS-200S | TIG-200P | TIG-250S | TIG-250A |
|---|
| CERTIFICATIONS: |
|---|
| |
|---|
| COMPANY INFORMATION: |
|---|
Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.
With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.
Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.
We hope you will stay a while at our website. Please view our product offerings and get acquainted with us. |
|---|
|
|---|
Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...
| CONTACT INFO: | | Contact Person: | Dustin | | Phone: | 86-13486874000 | | Tel: | 86-0576-86489638-809 | | Fax: | 86-0576-86489635 | | Website: | cnretop.en.china.cn | | Address: | Zeguo Wenling, Zhejiang Province, P.R.China |
|
