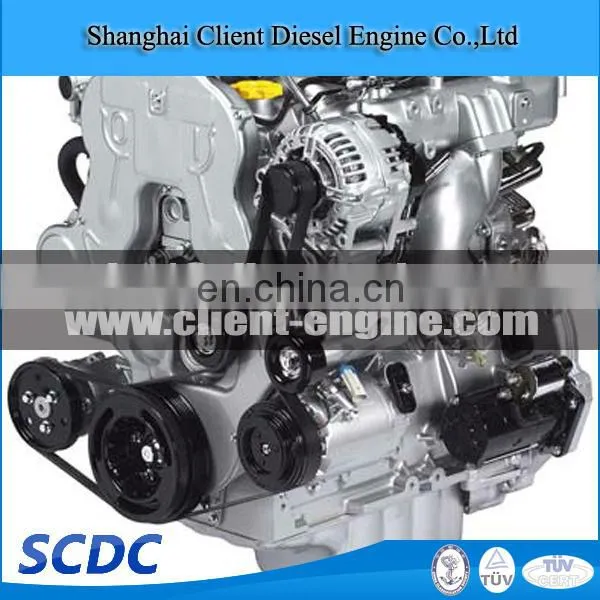

 Good quality VM D704 Series engine
Good quality VM D704 Series engine
VM D704 engine

Model D754G68E2 D704G82E2 D754G95E2
Type Vertical, water-cooled, four-stroke Vertical, water-cooled, four-stroke, turbocharged Vertical, water-cooled, four-stroke, turbocharged
No.of cylinders-bore×stroke ( mm ) 4-94 x 107 4-94 x 100 4-94 x 107
Valves per cylinder 2
Displacement(L) 2.97 2.776 2.97
Combustion chamber Direct injection
Compression ratio 18:01
Rated output (kW) /Speed (r/min) 50±5%@2600 60.5±5%@3000 70±5%@2600
Max.torque (N.m) /Speed ( r/min ) 210±5%@1400 290±5%@1400 335±5%@1300
Specific fuel consumption  (g/kW.h ) 235 230 238
Emission standard 97/68 EC Stage2 and Tier2 limits
Fuel injection equipment Bosch rotary pump
Camshaft arrangement into engine block
Balance shaft in the oil sump,optional
Overall dimensions: L×W×H(mm) 694×518.5×685 720×557×736 720×557×736

Model D754G70E3 D754G81E3 D754G95E3
Type Vertical, water-cooled, four-stroke Vertical, water-cooled, four-stroke, turbocharged Vertical, water-cooled, four-stroke, turbocharged and intercooled
No.of cylinders-bore×stroke ( mm ) 4-94 x 107 4-94 x 107 4-94 x 107
Valves per cylinder 2
Displacement(L) 2.97 2.97 2.97
Combustion chamber Direct injection
Compression ratio 18:01
Rated output (kW) /Speed (r/min) 51,5±5%@2600 59.8±5%@2600 70±5%@2600
Max.torque (N.m) /Speed ( r/min ) 250±5%@1800 274±5%@1800 420±5%@1000
Specific fuel consumption  (g/kW.h ) 235 233 231
Emission standard 97/68 EC Stage3A and Tier3 limits
Fuel injection equipment Bosch rotary pump
Camshaft location in-block
Balance shaft in the oil sump,optional
Overall dimensions: L×W×H(mm) 720×546×687 720×508×740 720×508×736,



If you need more information, please contact with us.
