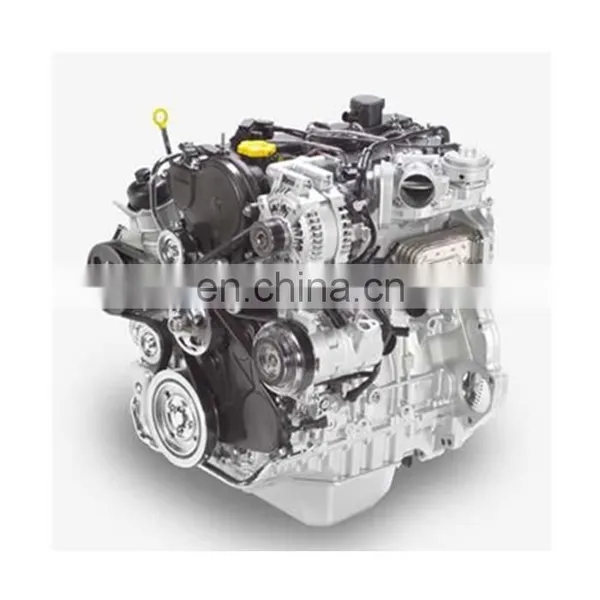

4 cylinders VM D754 Series engine

Name: 4 cylinders VM D754 Series engine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

VM D754

Model	D754G68E2	D704G82E2	D754G95E2
Type	Vertical, water-cooled, four-stroke	Vertical, water-cooled, four-stroke, turbocharged	Vertical, water-cooled, four-stroke, turbocharged
No.of cylinders-bore×stroke ( mm )	4-94 x 107	4-94 x 100	4-94 x 107
Valves per cylinder	2
Displacement(L)	2.97	2.776	2.97
Combustion chamber	Direct injection
Compression ratio	18:01
Rated output (kW) /Speed (r/min)	50±5%@2600	60.5±5%@3000	70±5%@2600
Max.torque (N.m) /Speed ( r/min )	210±5%@1400	290±5%@1400	335±5%@1300
Specific fuel consumption (g/kW.h )	235	230	238
Emission standard	97/68 EC Stage2 and Tier2 limits
Fuel injection equipment	Bosch rotary pump
Camshaft arrangement	into engine block
Balance shaft	in the oil sump,optional
Overall dimensions: L×W×H(mm)	694×518.5×685	720×557×736	720×557×736

Model	D754G70E3	D754G81E3	D754G95E3
Type	Vertical, water-cooled, four-stroke	Vertical, water-cooled, four-stroke, turbocharged	Vertical, water-cooled, four-stroke, turbocharged and intercooled
No.of cylinders-bore×stroke ( mm )	4-94 x 107	4-94 x 107	4-94 x 107
Valves per cylinder	2
Displacement(L)	2.97	2.97	2.97
Combustion chamber	Direct injection
Compression ratio	18:01
Rated output (kW) /Speed (r/min)	51,5±5%@2600	59.8±5%@2600	70±5%@2600
Max.torque (N.m) /Speed ( r/min )	250±5%@1800	274±5%@1800	420±5%@1000
Specific fuel consumption (g/kW.h )	235	233	231
Emission standard	97/68 EC Stage3A and Tier3 limits
Fuel injection equipment	Bosch rotary pump
Camshaft location	in-block
Balance shaft	in the oil sump,optional
Overall dimensions: L×W×H(mm)	720×546×687	720×508×740	720×508×736,

If you need more information, please contact with us.
