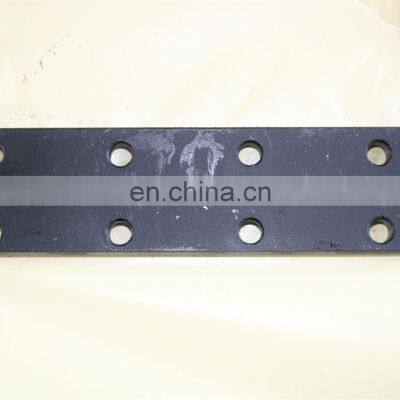

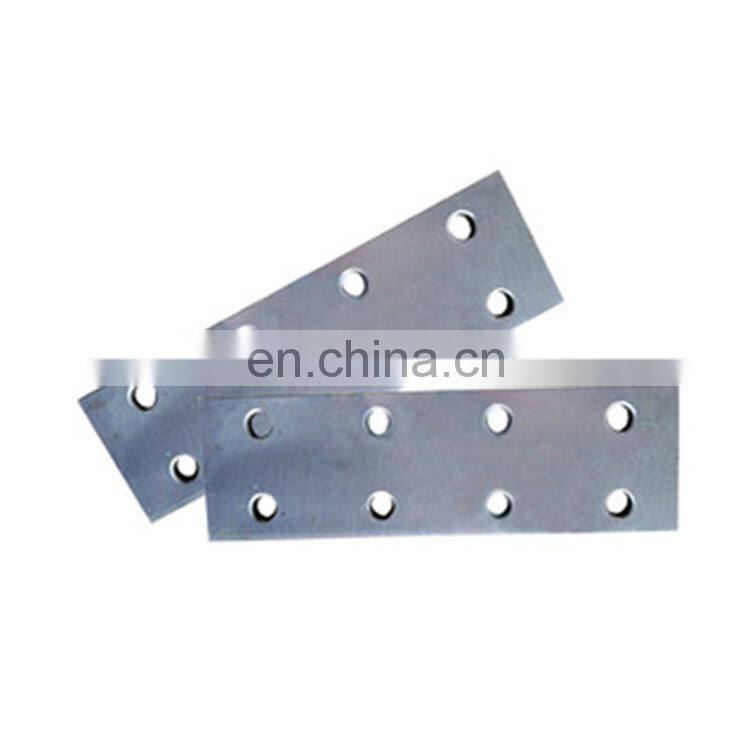

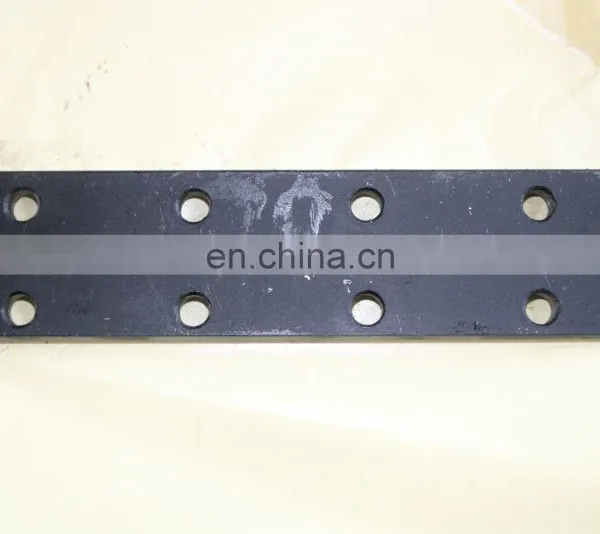

Solid Standard Elevator Guide Rail Fishplate for Passenger Elevator
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
China Elevator Speed Less Than 1.6m/s Hollow Guide Rail
-
High Quality Wide Use TK3 TK5A Elevator Hollow Guide Rail
-
Nova Elevator Parts Shaft Component Guide Forged Rail Clip
-
NOVA Elevator Shaft Components Type A Type F Anchor Bolt Fasteners
-
NOVA Elevator Parts Passenger Elevator Cabin Decoration
-
NV31-004 Central Opening Side Opening Elevator Door System Automatic Lift Car Door Operator
Product Description
Product Description
Product Paramenters

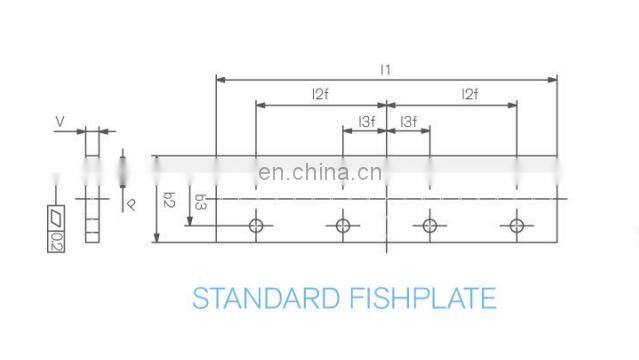

Suitable Rail Model | d | l1 | l2f | l3f | b2 | b3 | vmin | Bolt | ||
T45/A | 9 | 160 | 65 | 15 | 50 | 25 | 8 | M8x25 | ||
T50/A | 9 | 200 | 75 | 25 | 50 | 30 | 8 | M8x25 | ||
T70/A | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | ||
T70-1/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | ||
T75-3/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | ||
T78/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | ||
T82/B | 13 | 216 | 80 | 26 | 80 | 50.8 | 10 | M12x35 | ||
T89/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 | ||
T90/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 | ||
T114/B | 17 | 305 | 114.3 | 38.1 | 120 | 70 | 17 | M16x50 | ||
T127-1/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 | ||
T127-2/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 | ||
T140-1/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 | ||
T140-2/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 | ||
T140-3/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 38 | M20x80 | ||
Tolerances | - | +3 | ±0.2 | ±0.2 | - | ±0.2 | +3 | - | ||
0 | 0 | |||||||||

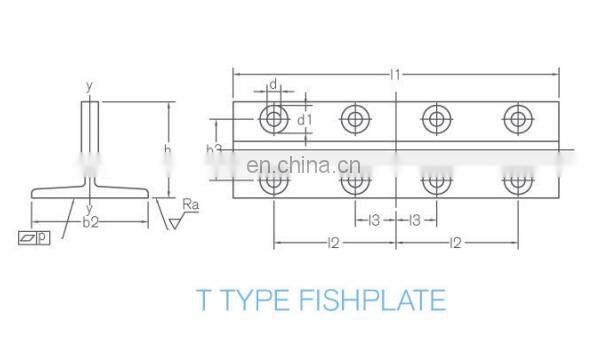

Suitable Rail Model | d | d1 | b2 | b3 | l1 | l2 | l3 | h | ||
Type | mm | mm | mm | mm | mm | mm | mm | mm | ||
T75-3/B | 13 | 26 | 75 | 43 | 240 | 90 | 30 | 61 | ||
T78/B | 13 | 26 | 78 | 43 | 240 | 90 | 30 | 55 | ||
T82/B | 13 | 26 | 82.5 | 50.8 | 216 | 81 | 27 | 66.6 | ||
T89/B | 13 | 26 | 89 | 57.2 | 305 | 114.3 | 38.1 | 61 | ||
T90/B | 13 | 26 | 90 | 57.2 | 305 | 114.3 | 38.1 | 74 | ||
T114/B | 17 | 33 | 114 | 79.4 | 305 | 114.3 | 38.1 | 88 | ||
T127-1/B | 17 | 33 | 127 | 79.4 | 305 | 114.3 | 38.1 | 88 | ||
T127-2/B | 17 | 33 | 127 | 79.4 | 305 | 114.3 | 38.1 | 88 | ||
T140-1/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 107 | ||
T140-2/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 101 | ||
T140-3/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 126 | ||
Tolerances | - | - | ±1.5 | ±0.2 | ±1.5 | ±0.2 | ±0.2 | ±0.1 | ||
Suitable Rail Model | wxx | wyy | weight | bolt | ||
Type | cm³ | cm³ | kg/pc | size | ||
T75-3/B | 9.29 | 7.06 | 2.1 | M12x35 | ||
T78/B | 7.56 | 6.71 | 1.8 | M12x35 | ||
T82/B | 10.20 | 7.40 | 1.36 | M12x35 | ||
T89/B | 14.25 | 11.80 | 3.8 | M12x35 | ||
T90/B | 20.87 | 11.80 | 4.1 | M12x35 | ||
T114/B | 29.70 | 19.10 | 5.0 | M16x50 | ||
T127-1/B | 30.40 | 23.40 | 5.4 | M16x50 | ||
T127-2/B | 30.90 | 36.20 | 6.9 | M16x50 | ||
T140-1/B | 53.40 | 44.30 | 10.5 | M20x65 | ||
T140-2/B | 68.00 | 51.20 | 12.9 | M20x65 | ||
T140-3/B | 114.60 | 69.40 | 17.5 | M20x65 | ||
Tolerances | - | - | - | - | ||
Related Products
Shaft Components
Elevator Cabin
Door System
Traction System
Safety Components
Electric Components
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Company Profile
Exhibition

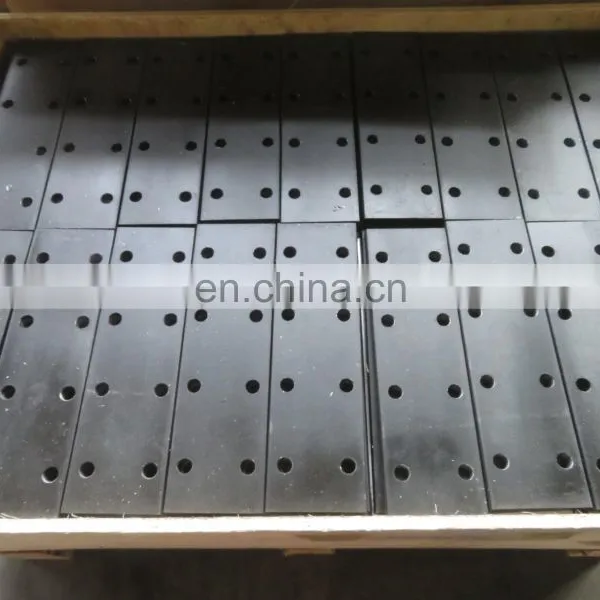

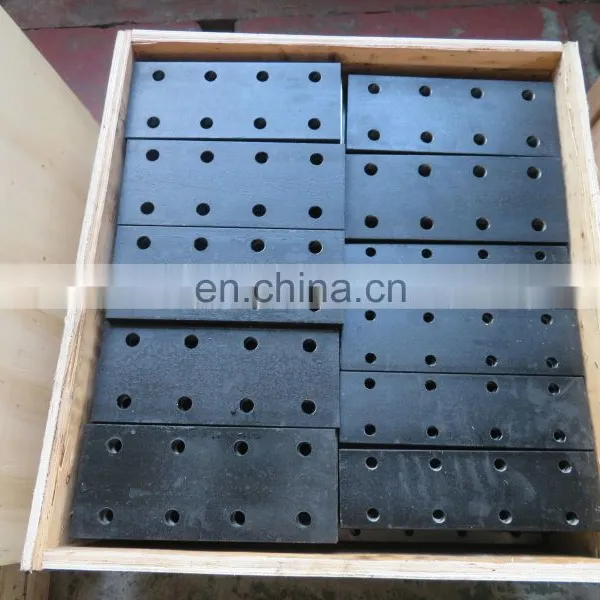

Product Packaging
