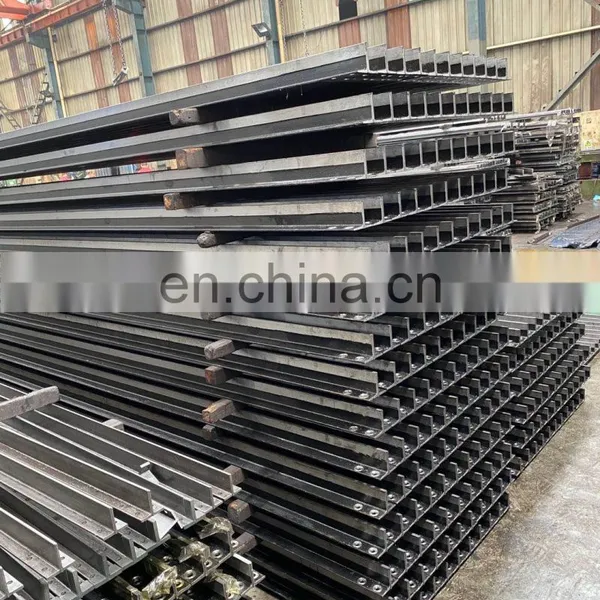

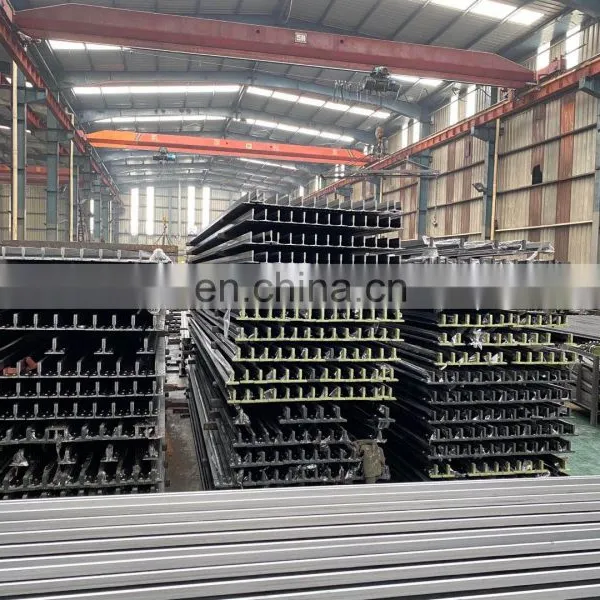

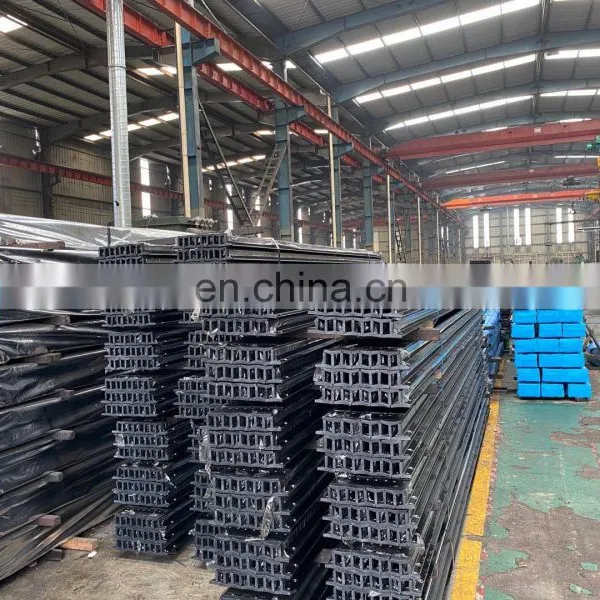

High Quality Wide Use TK3 TK5A Elevator Hollow Guide Rail
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Nova Elevator Parts Shaft Component Guide Forged Rail Clip
-
NOVA Elevator Shaft Components Type A Type F Anchor Bolt Fasteners
-
NOVA Elevator Parts Passenger Elevator Cabin Decoration
-
NV31-004 Central Opening Side Opening Elevator Door System Automatic Lift Car Door Operator
-
Low Speed Elevator Sliding Guide Shoes for Guide rail
-
Rated Load Less Than 4500 kg Elevator rolling guide shoes
Product Description
Product Description
Type:
1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail
3. Hollow Elevator Guide Rail
4. Customized Elevator Guide Rail
5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips
Standard: ISO 7465.
Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.
Product Paramenters
Model | Guide Rail Size | Fishplate Size | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
