Home > Products > Elevator Parts > High Quality 6mm Elevator Parts Stainless Steel Wire Rope for Sale
High Quality 6mm Elevator Parts Stainless Steel Wire Rope for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cheap Elevator Parts Elevator Lop for Sale
-
High Quality 8mm Elevator Parts Stainless Steel Wire Rope for Sale
-
Cheap Elevator Parts Guide Rail Bracket for Sale
-
Cheap TVVB Elevator Flat Travelling Cable Elevator Cable
-
High Quality Elevator Emergency Device Lift Automatic Rescue Device ARD
-
Good Performance Elevator Parts Elevator Drive Sheave Pulley
Product Description
Product Description

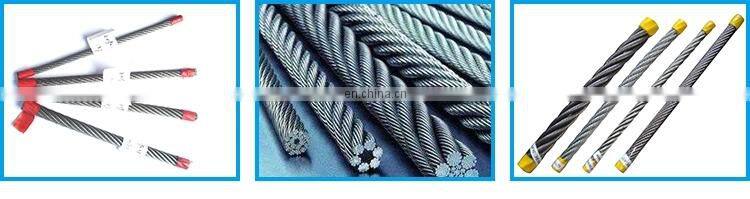

Product Name | Elevator steel wire rope |
Material | ss304, ss316, galvanized steel ect. |
Diameter Range | 6-22mm |
Types of Cables | Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope |
Surface | Bright, coated, galvanized, ect. |
Features | Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral / longitudinal cracks, pits and marks etc |
Similar Products
Product Paramenters
Rope For Over Speed Governor (6*19+PP)
1. This rope is for low speed, low duty elevators
2. If elevator with high speed, please contact us
3. We can also produce as customer's requirements
4. Above specifications just for your reference. Error may occur in actual situation.Nominal Rope Diameter | 6*19S+PP | Minimum Breaking Load | ||||||
Dual Tensile,Mpa | Single Tensile,Mpa | |||||||
1370/1770 | 1570/1770 | 1570 | 1770 | |||||
mm | Kg/100m | kN | kN | kN | kN | |||
6 | 12.9 | 17.8 | 19.5 | 18.7 | 21 | |||
8 | 23 | 31.7 | 34.6 | 33.2 | 37.4 | |||
Rope For Traction Machine (8*19+FC)
Natural fiber core(NFC): Suspension ropes for medium duty elevators
Elevator speed≤20M/Ss, Building height≤60MNominal Rope Diameter | Approx Weight | Minimum Breaking Load | ||||||
Dual Tensile,Mpa | Single Tensile,Mpa | |||||||
1370/1770 | 1570/1770 | 1570 | 1770 | |||||
mm | Kg/100m | kN | kN | kN | kN | |||
8 | 21.8 | 28.1 | 30.8 | 29.4 | 33.2 | |||
9 | 27.5 | 35.6 | 38.9 | 37.3 | 42 | |||
10 | 34 | 44 | 48.1 | 46 | 51.9 | |||
11 | 41.1 | 53.2 | 58.1 | 55.7 | 62.8 | |||
12 | 49 | 63.3 | 69.2 | 66.2 | 74.7 | |||
13 | 57.5 | 74.3 | 81.2 | 77.7 | 87.6 | |||
14 | 66.6 | 86.1 | 94.2 | 90.2 | 102 | |||
15 | 76.5 | 98.9 | 108 | 104 | 117 | |||
16 | 87 | 113 | 123 | 118 | 133 | |||
18 | 110 | 142 | 156 | 149 | 168 | |||
19 | 123 | 159 | 173 | 166 | 187 | |||
20 | 136 | 176 | 192 | 184 | 207 | |||
22 | 165 | 213 | 233 | 223 | 251 | |||
Rope For Traction Machine (8*19+IWRF, 8*19+IWRC)
For IWRC, speed>4.0 m/s, Building height> 100m
For TWRF,20< speed≤40m/ s, Building heigh≤100mNominal Rope Diameter | Approx Weight | Minimum Breaking Load | ||||||||
Dual Tensile,Mpa | ||||||||||
1370/1770 | 1570/1770 | 1620/1770 | ||||||||
IWRC | IWRF | IWRC | IWRF | IWRC | IWRF | |||||
mm | Kg/100m | kN | kN | |||||||
8 | 26 | 25.9 | 35.8 | 35.2 | 38 | 37.4 | ||||
9 | 33 | 32.8 | 45.3 | 44.5 | 48.2 | 47.3 | ||||
10 | 40.7 | 40.5 | 55.9 | 55 | 59.5 | 58.5 | ||||
11 | 49.2 | 49 | 67.6 | 66.5 | 79.1 | 70.7 | ||||
12 | 58.6 | 58.3 | 80.5 | 79.1 | 85.6 | 84.2 | ||||
13 | 68.8 | 68.4 | 94.5 | 92.9 | 100 | 98.8 | ||||
14 | 79.8 | 79.4 | 110 | 108 | 117 | 115 | ||||
15 | 91.6 | 91.1 | 126 | 124 | 134 | 132 | ||||
16 | 104 | 104 | 143 | 141 | 152 | 150 | ||||
18 | 132 | 131 | 181 | 178 | 193 | 189 | ||||
19 | 147 | 146 | 202 | 198 | 215 | 211 | ||||
20 | 163 | 162 | 224 | 220 | 238 | 234 | ||||
22 | 197 | 196 | 271 | 266 | 283 | 283 | ||||
