Home > Products > Elevator Parts > Cheap TVVB Elevator Flat Travelling Cable Elevator Cable

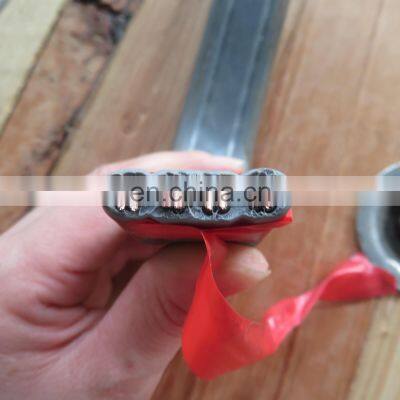

Cheap TVVB Elevator Flat Travelling Cable Elevator Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Elevator Emergency Device Lift Automatic Rescue Device ARD
-
Good Performance Elevator Parts Elevator Drive Sheave Pulley
-
High Quality VVVF Gearless Elevator Motor Elevator Traction Machine
-
Low Price Good Quality Elevator Push Button for Sale
-
Low Price Plastic Elevator Oil Box Oil Can Oil Cup for Sale
-
Low Price Elevator Spare Parts Over Speed Governor Speed Governor Elevator
Product Description
Product Description
Conductor | Fine strands of bare copper wire acco.to VDE0295Class5 |
Insulation | Mixed PVC |
Color | As your requirements |
Sheath material | Pvc,cold and fame resistance |
Bearing | Steel rope |
Outer sheath | Flexible PVC, cold resistance,fame resistance |
Clour | Grey |
Three kinds of shielding | Aluminum foil, bare cooper |
Rated Voltage | 450/750V, test voltage:2500V |
Product Paramenters
Type | Conductor Section(mm2) | Conductor Construction(mm2) | Overall diameter Dia.(mm) | 70℃ Insulated Resister (M Ω·KM) | 20℃ Conductor DC Resister (Ω/KM) |
TVVB | 20×0.75 | 30/0.18 | 29.9×9.0 | ≥0.011 | ≤26.0 |
TVVB | 20×0.75 | 30/0.18 | 30.5×9.1 | ≥0.011 | ≤26.0 |
TVVBG | 2×1.0+TV(SYV75-4) | 7/0.24+50/0.16 | 15.8×7.6 | ≥0.010 | ≤19.5 |
TVVB | 20×0.75+(2×2)×0.75 | 30/0.18 | 44.2×9.1 | ≥0.011 | ≤26.0 |
TVVB | 36×0.75+(2×2)×0.75 | 30/0.18 | 62×10.0 | ≥0.011 | ≤26.0 |
TVVB | 48×0.75+(2×2)×0.75 | 30/0.18 | 68.5×10.0 | ≥0.011 | ≤26.0 |
TVVBG | 30×0.75 | 30/0.18 | 53×8.6 | ≥0.011 | ≤26.0 |
TVVBG | 36×0.75 | 30/0.18 | 54.0×9.5 | ≥0.011 | ≤26.0 |
TVVBG | 40×0.75 | 30/0.18 | 58×8.2 | ≥0.011 | ≤26.0 |
TVVBG | 42×0.75 | 30/0.18 | 66.6×9.7 | ≥0.011 | ≤26.0 |
TVVBG | 48×0.75 | 30/0.18 | 67.2×9.5 | ≥0.011 | ≤26.0 |
TVVBG | 60×0.75 | 30/0.18 | 80.0×9.5 | ≥0.011 | ≤26.0 |
TVVB | 30×0.75 | 30/0.18 | 44.2×9.1 | ≥0.011 | ≤26.0 |
TVVB | 36×0.75 | 30/0.18 | 42.5×9.0 | ≥0.011 | ≤26.0 |
TVVB | 40×0.75 | 30/0.18 | 5.25×9.0 | ≥0.011 | ≤26.0 |
TVVB | 42×0.75 | 30/0.18 | 54.1×9.7 | ≥0.011 | ≤26.0 |
TVVB | 48×0.75 | 30/0.18 | 58.0×9.6 | ≥0.011 | ≤26.0 |
