Home > Products > Elevator Parts > High Quality Elevator Emergency Device Lift Automatic Rescue Device ARD
High Quality Elevator Emergency Device Lift Automatic Rescue Device ARD
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Elevator Parts Guide Rails for Sale
-
Lower Price Elevator Speed Governor Elevator Overspeed Governor
-
High Quality Elevator Cop Lop for Sale
-
2022 Cheap Elevator Safety Component Elevator Rubber Polyurethane Buffer
-
Electric Components Elevator Touch Cop Elevator Parts Elevator Button Operation Panel
-
Cheap Elevator Parts Elevator Button Stainless Steel Elevator Cop Lop Panel Price
Product Description
Product Description
When the elevator in progress suddenly encounters a power failure, power failure, phase loss, or fire, the device will automatically switch to work, output the electrical energy required by the elevator, run the elevator to the leveling position, and open the car door to allow passengers to safely get out of the elevator.
Features:
1. Automatic operation
2. Intelligently identify the elevator light load direction
3. Low power consumption and long life
4. Stable operation and strong guarantee

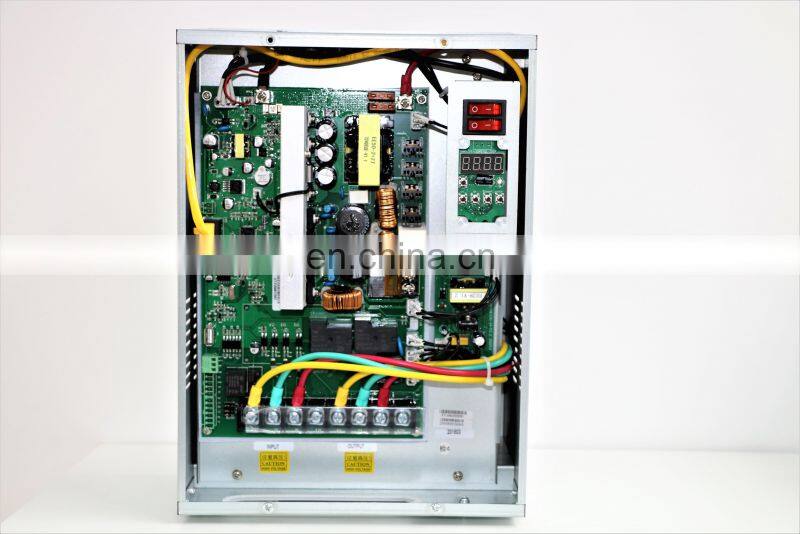

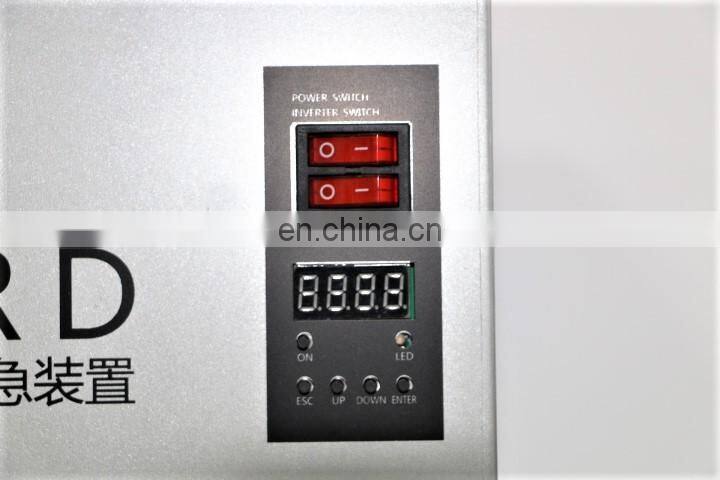

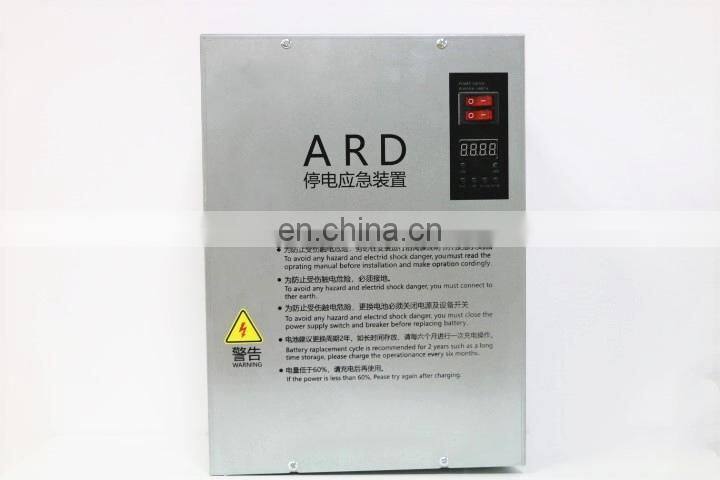

Details Images
Product Paramenters
Model | XT-ARD-110A | XT-ARD-150A | ||
Adapt elevator frequency converter | 15KW | 30KW | ||
Mains input | Voltage | Three-phase AC400V±10% | ||
Frequency | 50Hz/60Hz | |||
Inverter output | Inverter output Voltage | Single phase AC400V±10% | ||
Output frequency | 50Hz±5Hz (Rated value:50Hz) | |||
Efficiency | ≥0.8 | |||
Battery | Type | Lead acid special battery without adding liquid and maintenance | ||
Rescue time | 3 Min(adjustable) | |||
Charging time | ≤6Hours | |||
Specifications | 12V7AH*2 | 12V12AH*2 | ||
Environment | Temperature | 0℃～40℃ | ||
Humidity | 30%~90%（non-condensible） | |||
Noise | ≤50DB | |||
Dimension L*W*H(mm) | 374*251*170 | 374*251*170 | ||
Weight(KG) | 10.28 | 12.24 | ||
Hot Products
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Elevator Guide Rail
Elevator Door Operator
Elevator Speed Governor
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
