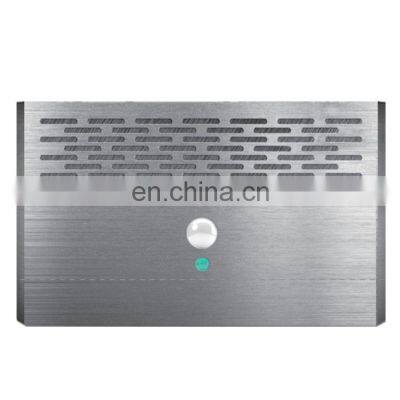

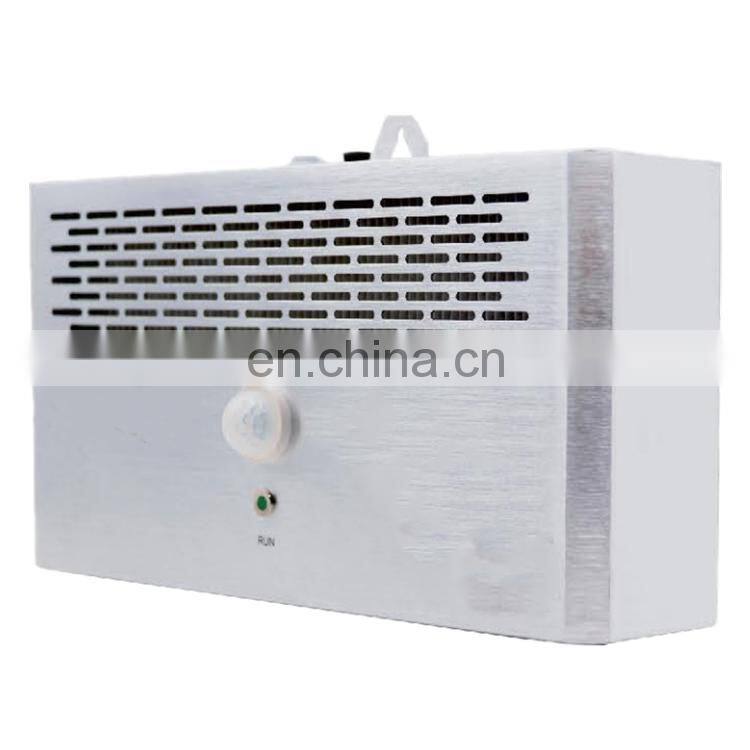

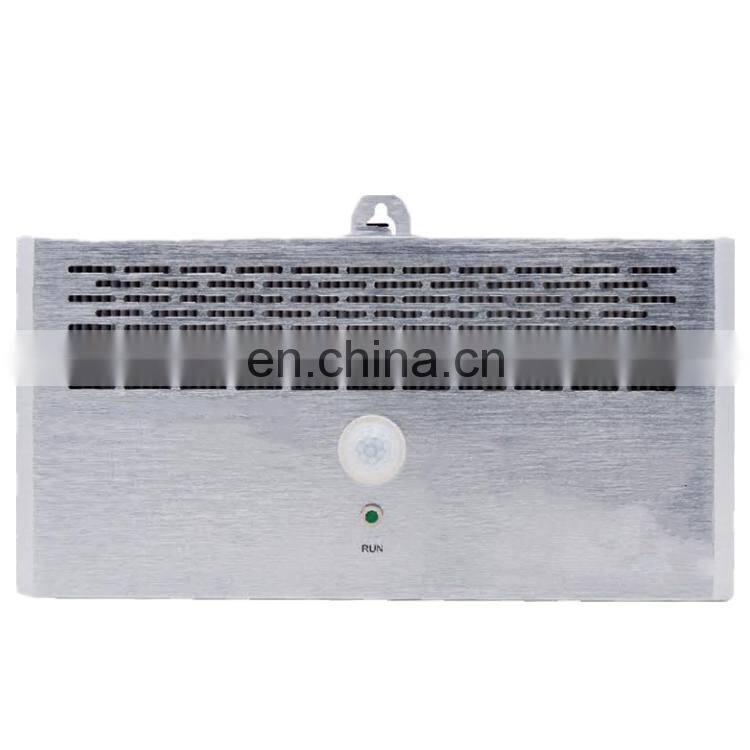

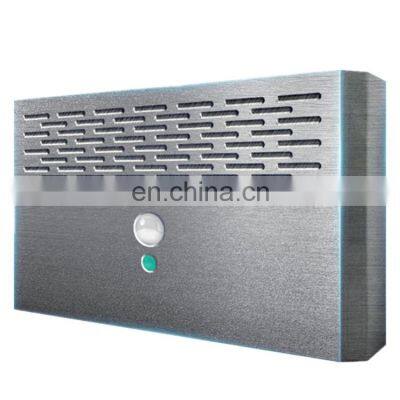

DC24V elevator wall hanging air sterilizer purifier

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Outline 1. Double functions of highly efficient disinfection and purification 2. All-round disinfection and purification of elevator air and walls 3. Peaceful coexistence of human and machine to realize real-time 4. disinfection and purification 5. Ultar-thin design for easy installation and maintenance 6. Intelligent biological recognition 7. Internet of Things optional

Specification

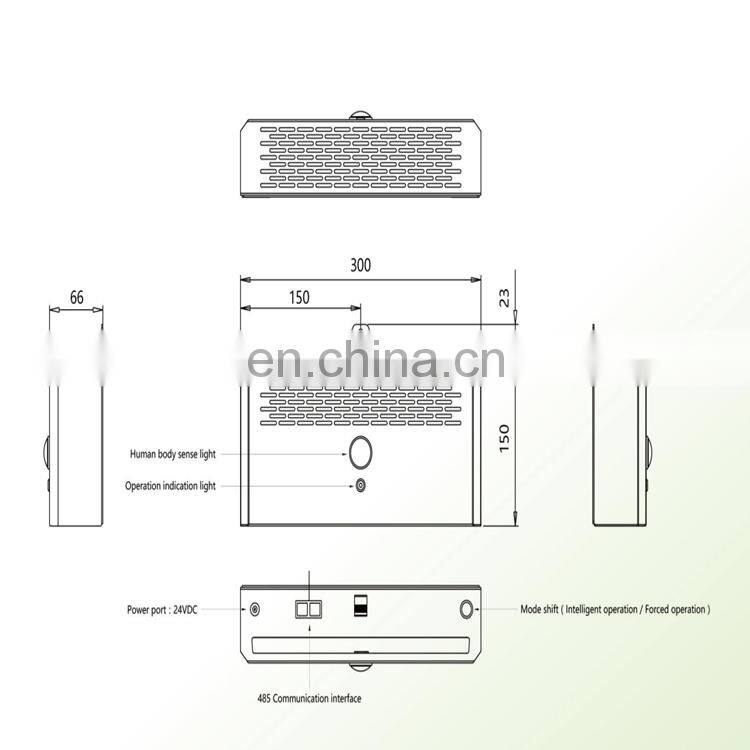

Size	30015066mm
Weight	1.5kg
Circulation air volume	60m3/h @0Pa
Virus (A and B) killing efficiency	99%
Virus (MERS-CoV) killing efficiency	98%
30WRated power	30W
Adapter rated voltage	220V 50/60Hz
Maximum operating current	1.25A（24v DV)
Power adapter output voltage	24V DC
Range of working temperature	-20℃～45℃

Ways of Installation

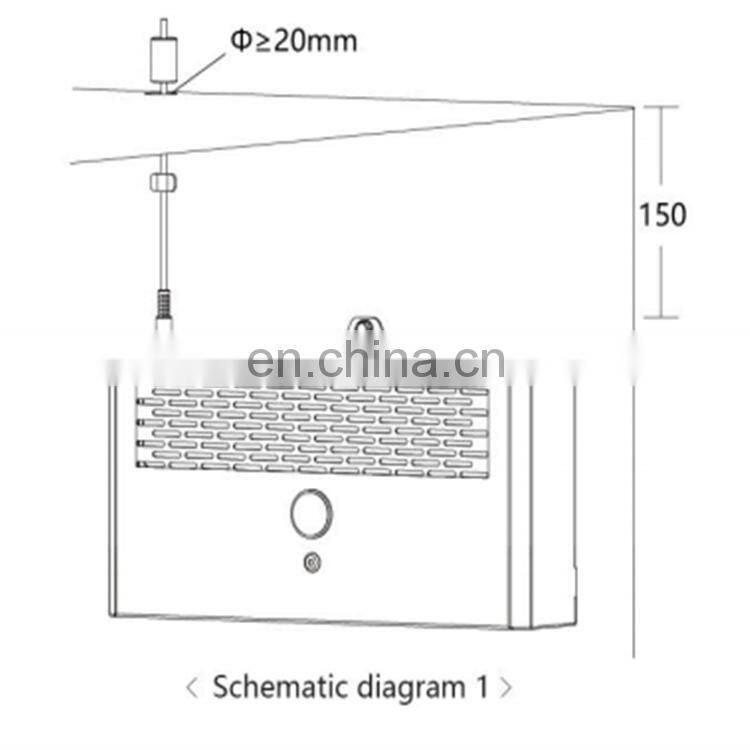

It is recommended to punch the bottom hole 150 mm from the top of the cage side wall. (Reserving top routing and operating space, and the crossing diameter is recommended to be no less than 20mm) Ps. The positioning holes is recommended as 4.5mm for plate of 1.5-1 8mm in thickness; and 4. 6mm for plate of 1.8-2.5mm in thickness. (Schematic diagram 1)

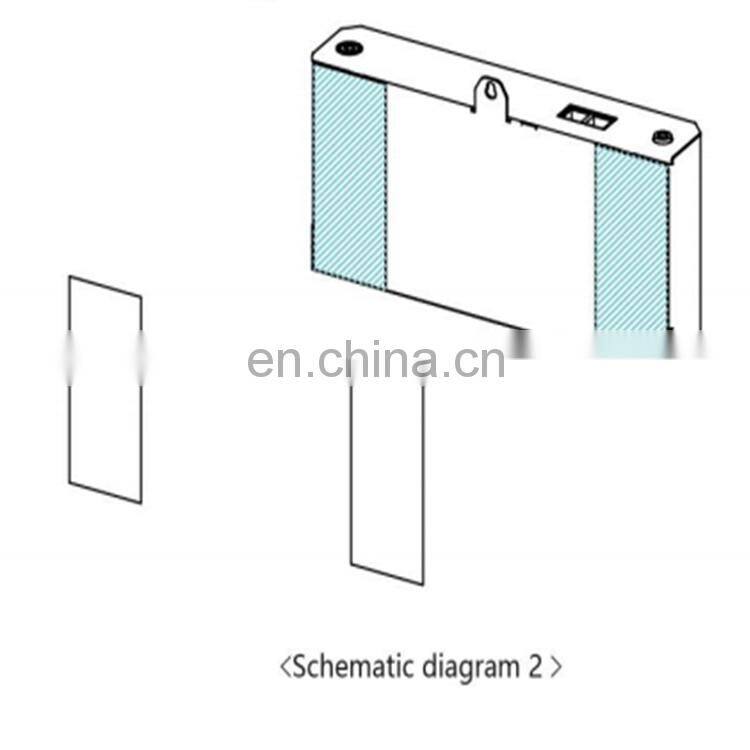

Tear off 3M tape on back of machine. (Schematic diagram 2)

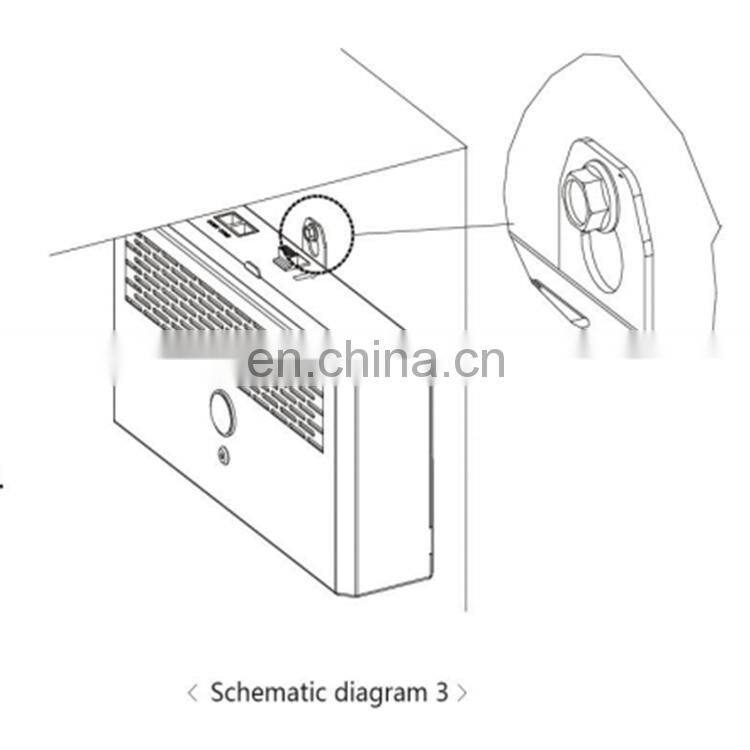

Align the hanging hole on the top of purifier with posstioning hole and attach the machine on the wall. Then screw in self-tapping bolt slowly with electricalscrewdriver and hexagon sleeve. Ps. The torque varies according to different plate thickness and material. Pls screw with small strength to avoid the breakdown of bolt and adjust the strength little by little. (Schematic diagram 3)

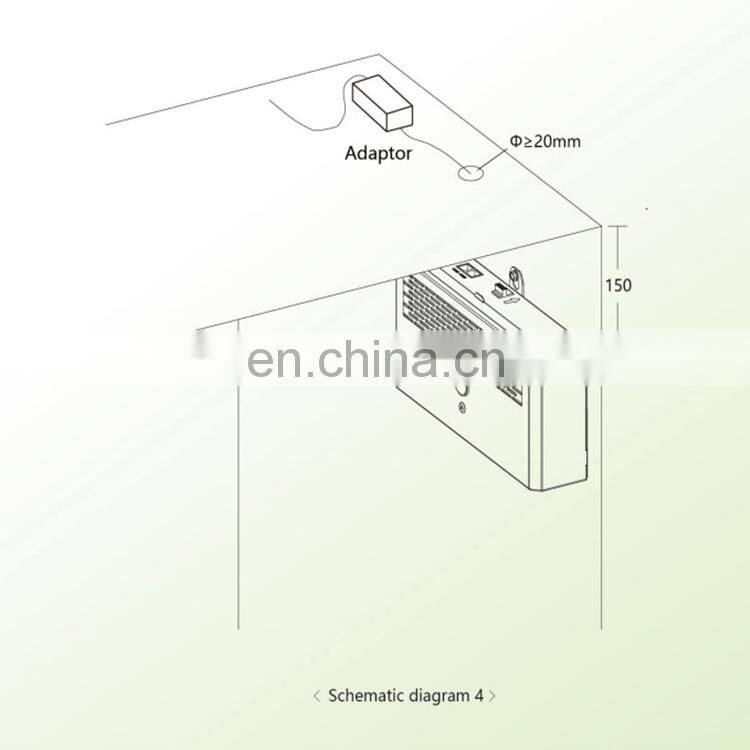

Connect adaptor and purifier (Schematic diagram 4) and plunge the other end of cable into 220V power source. Then the disinfection machine works by pressing the button.

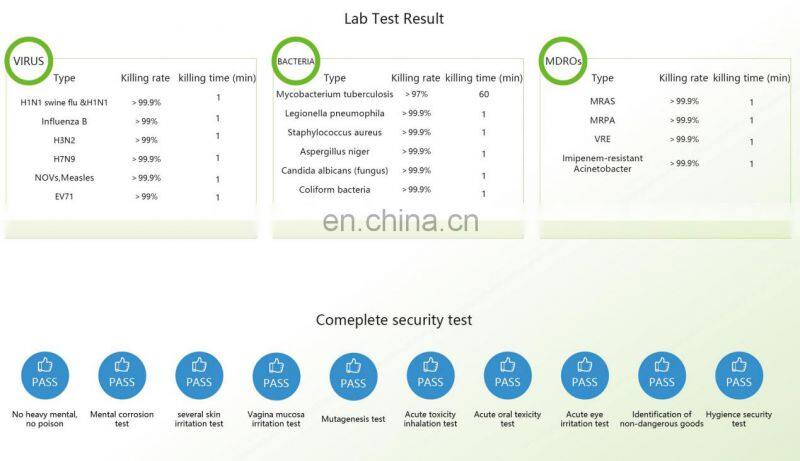

Related Tests

Company Profile

Exhibition

Product packaging

FAQ

1. Price Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators. 2. Payment term Re: T/T or L/C at sight. 3. Installation&Maintaining Re: We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary. 4. Shipping&price term Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
