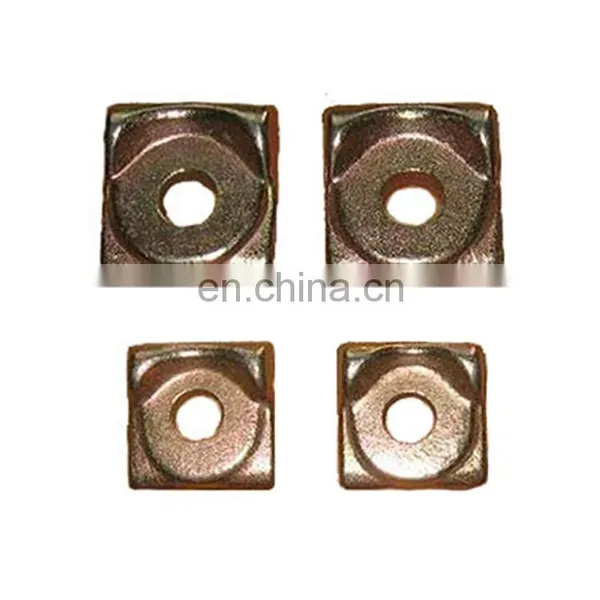

Home > Transportation > Elevator & Funicular Car > Parts for Elevator & Funicular Car > Forged Elevator Guide Rail Clips
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Material Different Type Elevator Cop Panel For SaleNegotiableMOQ: 1 -
Cold Drawn T50/A T45/A T70/A T Steel Type Guide Rail ElevatorNegotiableMOQ: 1
-
22 NEW Shaft Components Metal Machine Guide Rail T70-1/B ElevatorNegotiableMOQ: 1
-
Customized Material Elevator Shaft Components Standard Fishplate T Type FishplateNegotiableMOQ: 1
-
Elevator Shaft Components T Type Forged Rail Clip Casting Sliding Rail ClipNegotiableMOQ: 1
Product Description
Product Paramenters
Type | Designation | Dimensions(mm) | ||||||||
A | B | C | D | E | ||||||
NV75 | T75-3/B | 30 | 15 | 15 | 30 | 10.5 | ||||
NV89 | T89/B | 32 | 16 | 16 | 38 | 11 | ||||
NV90 | T90/B | 32 | 16 | 16 | 38 | 11 | ||||
NV114 | T114/B | 50 | 22 | 28 | 50 | 14 | ||||
NV1271 | T127-1/B | 50 | 22 | 28 | 50 | 14 | ||||
NV1272 | T127-2/B | 50 | 22 | 28 | 50 | 17 | ||||
NV1401 | T140-1/B | 50 | 22 | 28 | 50 | 17 | ||||
NV1402 | T140-2/B | 70 | 38 | 32 | 65 | 16 | ||||
NV1403 | T140-3/B | 70 | 38 | 32 | 76 | 19 | ||||
Type | Designation | Dimensions(mm) | ||||||||
F | G | M | φ | Bolt | ||||||
NV75 | T75-3/B | 15 | 4.5 | 3 | 9 | M8 | ||||
NV89 | T89/B | 16 | 5 | 6 | 13 | M12 | ||||
NV90 | T90/B | 16 | 5 | 6 | 13 | M12 | ||||
NV114 | T114/B | 22 | 5 | 7.5 | 17 | M16 | ||||
NV1271 | T127-1/B | 22 | 5 | 7.5 | 17 | M16 | ||||
NV1272 | T127-2/B | 25 | 8 | 8 | 17 | M16 | ||||
NV1401 | T140-1/B | 25 | 8 | 8 | 17 | M16 | ||||
NV1402 | T140-2/B | 25.5 | 12.5 | 24 | 20.5 | M18 | ||||
NV1403 | T140-3/B | 28.5 | 19 | 24 | 20.5 | M18 | ||||
Type | Designation | Dimensions(mm) | ||||||||
A | B | C | D | E | ||||||
NV-SL1 | T89/B | 76 | 70 | 31 | 5 | 9 | ||||
T90/B | 76 | 70 | 31 | 5 | 9 | |||||
NV-SL2 | T114/B | 76 | 70 | 31 | 5 | 9 | ||||
T127-1/B | 76 | 70 | 31 | 5 | 9 | |||||
NV-SL3 | T127-2/B | 76 | 70 | 33 | 5 | 14.5 | ||||
T140-1/B | 76 | 70 | 33 | 5 | 14.5 | |||||
T140-2/B | 76 | 70 | 33 | 5 | 14.5 | |||||
Type | Designation | Dimensions(mm) | ||||||||
F | G | - | φ | Bolt | ||||||
NV-SL1 | T89/B | 14.5 | 18.5 | - | 13 | M12 | ||||
T90/B | 14.5 | 18.5 | - | 13 | M12 | |||||
NV-SL2 | T114/B | 14.5 | 18.5 | - | 17.5 | M16 | ||||
T127-1/B | 14.5 | 18.5 | - | 17.5 | M16 | |||||
NV-SL3 | T127-2/B | 20.5 | 19 | - | 17.5 | M16 | ||||
T140-1/B | 20.5 | 19 | - | 17.5 | M16 | |||||
T140-2/B | 20.5 | 19 | - | 17.5 | M16 | |||||
