Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > VP225 Buy Vacuum Pump Rotary Vane Vacuum Pump HVAC Vacuum Pump VP225
VP225 Buy Vacuum Pump Rotary Vane Vacuum Pump HVAC Vacuum Pump VP225
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VP245 Manual Vacuum Pump Rotary Vane Vacuum Pump Vacuum Hand Pump VP245NegotiableMOQ: 1 -
VP115 AC Mini Vacuum Pumps Price Vacuum Pump Laboratory VP115NegotiableMOQ: 1
-
Portable Refrigerant Charging Station With Manifold Gauge and Vacuum Pump Station Good PriceNegotiableMOQ: 1
-
Good Quality Refrigeration Services Tool KitNegotiableMOQ: 1
-
VP115 VP125 VP215 VP225 Buy High HVAC Single Stage Dual Stage Price Mini Rotary Vane Air AC Vacuum PumpNegotiableMOQ: 1
Product Description

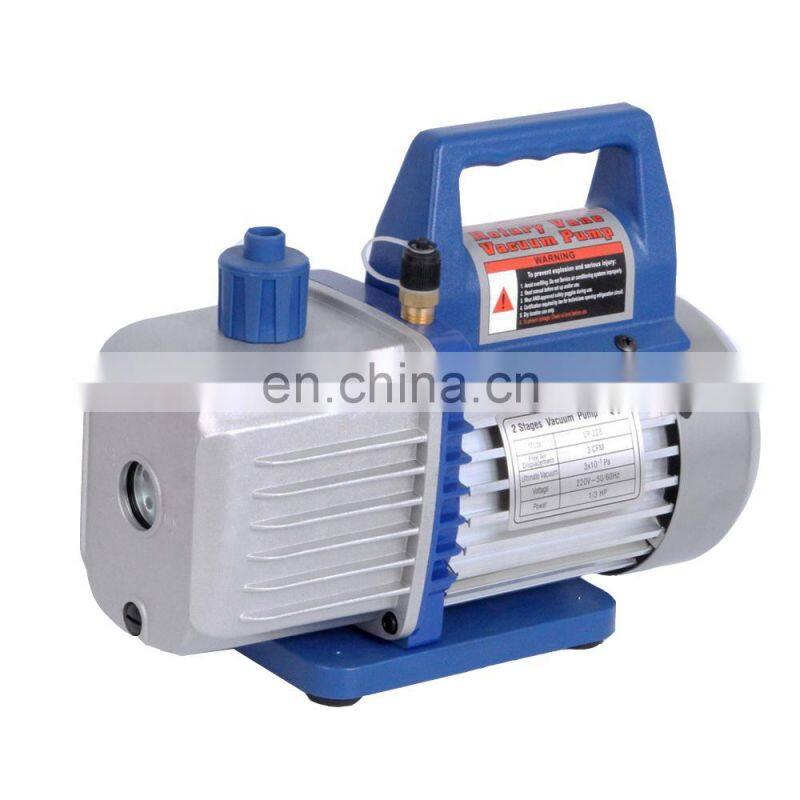

VP225 Buy Vacuum Pump Rotary Vane Vacuum Pump HVAC Vacuum Pump
1.High efficiency filter,smoke less.
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
Technical Data | ||||
Model | VP225 | |||
50Hz | 2.5CFM , 70L/min | |||
60Hz | 3CFM , 84L/min | |||
Ultimate Vacuum | 3x10-1Pa , 25microns | |||
Stage | Dual Stage | |||
Power | 1/3HP | |||
Inlet Port | 1/4"Flare | |||
Oil Capacity | 280ml | |||
Dimensions(mm) | 278x119x216 | |||
Weight | 7KG | |||
Single Stage | SC-1.0A | SC-1.5A | SC-2.0A | SC-2.5A | SC-3.0A | SC-4.0A | SC-5.0A | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | ||
150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | |||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | ||
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | ||
Dual Stage | 2SC-1C | 2SC-1.5C | 2SC-2.0C | 2SC-2.5C | 2SC-3.0C | 2SC-4.0C | 2SC-5.0C | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | ||
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | |||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | ||
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | ||
Related product
Packing & Delivery
Certifications
Our Company
SinoCool Refrigeration & Electronics Co.Ltd. is a large modern enterprise specializing in refrigeration accessories, we deal with the spare parts from 2007. Now we have 3000 kinds spare parts for Air conditioner, Refrigerator, Washing machine, Oven, Cold room; We have relied on high technology for a long time and have invested huge amounts of money in compressors, capacitors, relays and other refrigeration accessories. Stable quality, superior logistics and caring service are our advantages. Customized products and OEM service are all available.
