VP115 AC Mini Vacuum Pumps Price Vacuum Pump Laboratory VP115
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Refrigerant Charging Station With Manifold Gauge and Vacuum Pump Station Good PriceNegotiableMOQ: 1 -
Good Quality Refrigeration Services Tool KitNegotiableMOQ: 1
-
VP115 VP125 VP215 VP225 Buy High HVAC Single Stage Dual Stage Price Mini Rotary Vane Air AC Vacuum PumpNegotiableMOQ: 1
-
High Quality SPL Series Filter CylinderNegotiableMOQ: 1
-
SDML Series Refrigeration Parts Molecular Sieve Liquid Line Filter DrierNegotiableMOQ: 1
Product Description

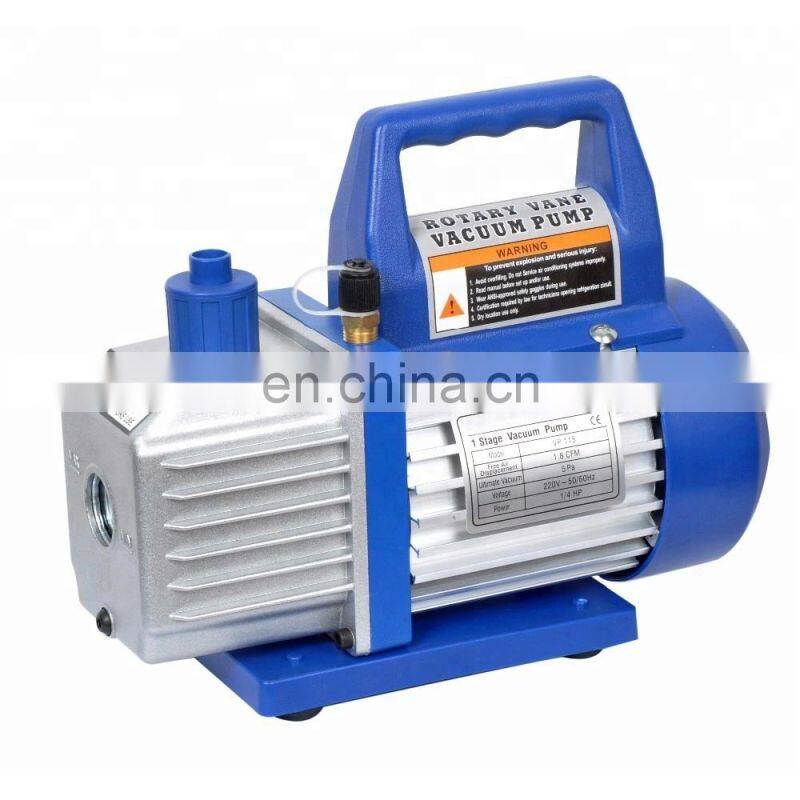

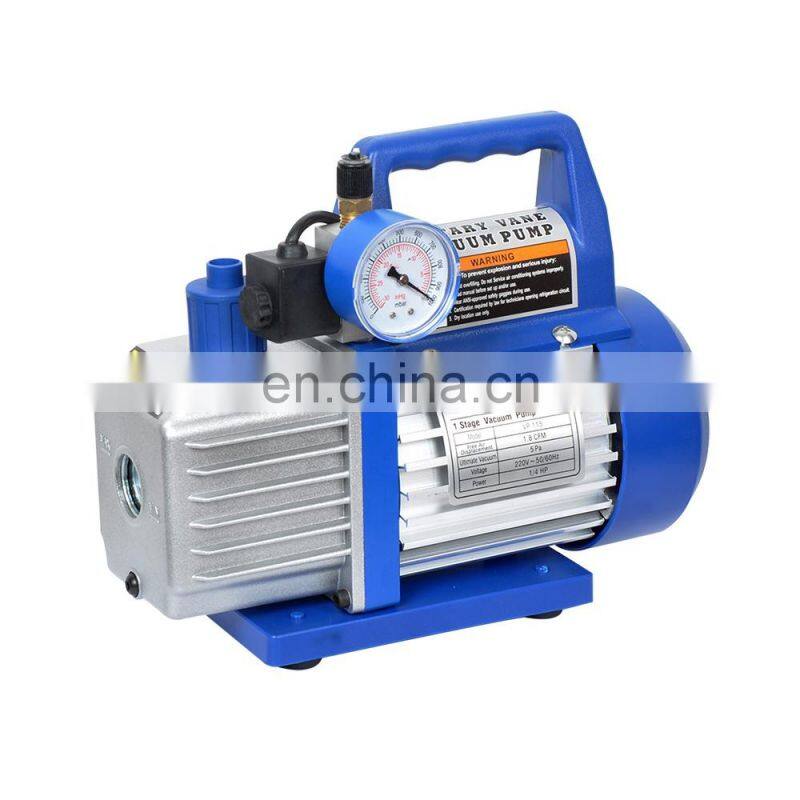

VP115 AC Mini Vacuum Pumps Price Vacuum Pump Laboratory
1.High efficiency filter,smoke less.
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
Technical Data | ||||
Model | VP115 | |||
50Hz | 1.8 CFM , 42L/min | |||
60Hz | 2 CFM , 50L/min | |||
Ultimate Vacuum | 5Pa , 150microns | |||
Stage | Single Stage | |||
Power | 1/4HP | |||
Inlet Port | 1/4"Flare | |||
Oil Capacity | 320ml | |||
Dimensions(mm) | 270x119x216 | |||
Weight | 5.3KG | |||
Single Stage | SC-1.0A | SC-1.5A | SC-2.0A | SC-2.5A | SC-3.0A | SC-4.0A | SC-5.0A | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | ||
150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | |||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | ||
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | ||
Dual Stage | 2SC-1C | 2SC-1.5C | 2SC-2.0C | 2SC-2.5C | 2SC-3.0C | 2SC-4.0C | 2SC-5.0C | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | ||
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | |||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | ||
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | ||
