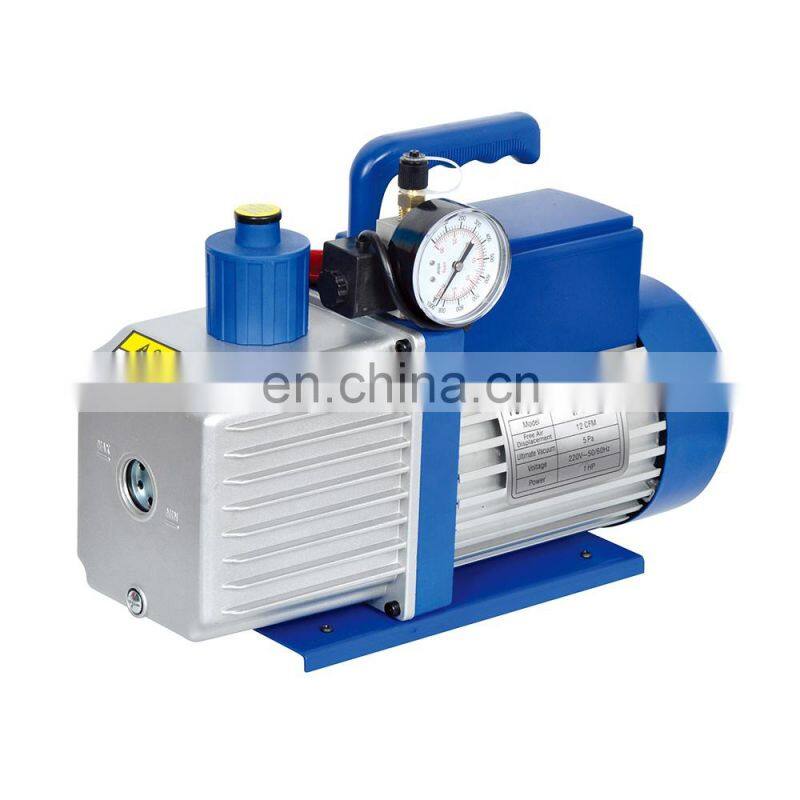

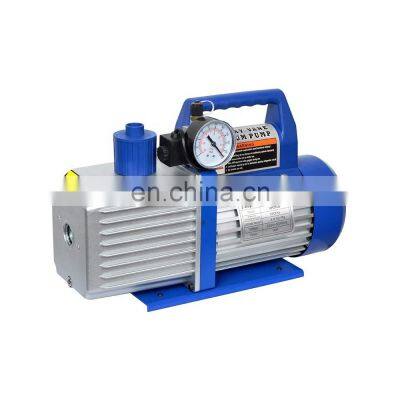

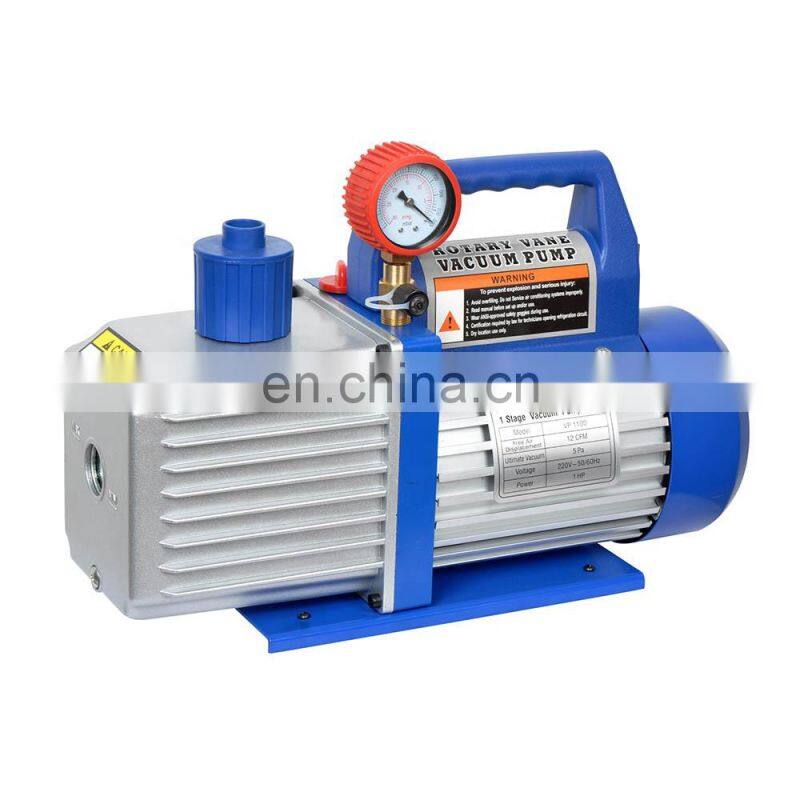

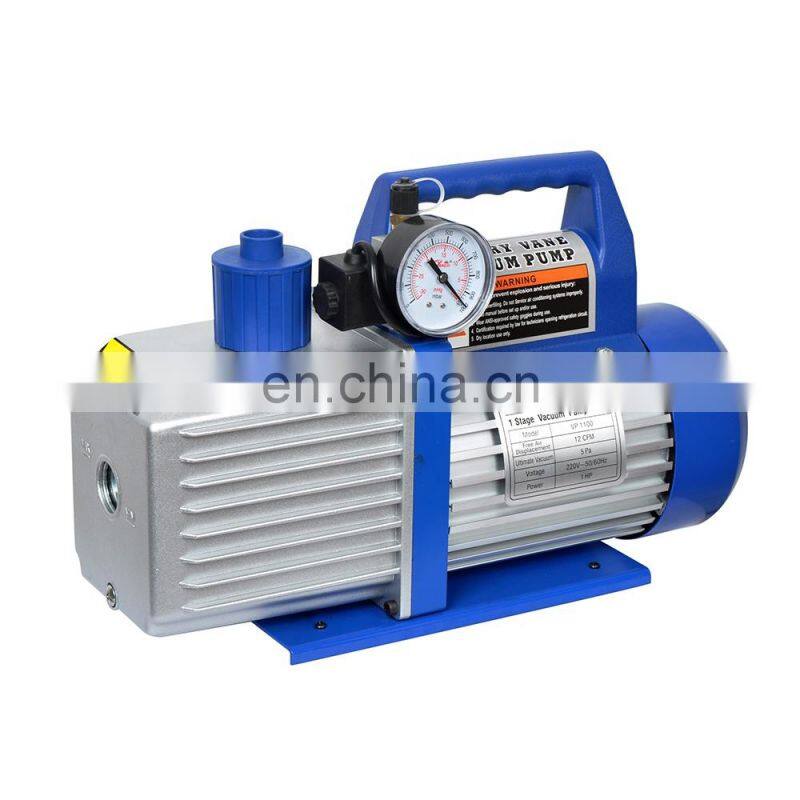

VP1100 Buy Vacuum Pump Mini Vacuum Pump Rotary Vacuum Pump VP1100
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VP180 Small Vacuum Pump HVAC Vacuum Pump Buy Vacuum Pump Price VP180NegotiableMOQ: 1 -
VP160 Buy Vacuum Pump HVAC Vacuum Pump Air Vacuum Pump VP160NegotiableMOQ: 1
-
VP135 High Vacuum Pump Refrigeration Vacuum Pump Electric Vacuum Pump VP135NegotiableMOQ: 1
-
VP125 Single Stage Rotary Vane Vacuum Pump Value Vacuum Pump Price VP125NegotiableMOQ: 1
-
VP280 Bomba De Vacio Vacuum Pump HVAC Vacuum Pump For Sale VP280NegotiableMOQ: 1
Product Description
VP1100 Buy Vacuum Pump Mini Vacuum Pump Rotary Vacuum Pump
1.High efficiency filter,smoke less.
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
Technical Data | ||||
Model | VP1100 | |||
50Hz | 10CFM , 283L/min | |||
60Hz | 12CFM , 340L/min | |||
Ultimate Vacuum | 5Pa , 150microns | |||
Stage | Single Stage | |||
Power | 1HP | |||
Inlet Port | 1/4"& 3/8'Flare | |||
Oil Capacity | 800ml | |||
Dimensions(mm) | 390x140x250 | |||
Weight | 14.5KG | |||
Single Stage | SC-1.0A | SC-1.5A | SC-2.0A | SC-2.5A | SC-3.0A | SC-4.0A | SC-5.0A | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | ||
150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | |||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | ||
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | ||
Dual Stage | 2SC-1C | 2SC-1.5C | 2SC-2.0C | 2SC-2.5C | 2SC-3.0C | 2SC-4.0C | 2SC-5.0C | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | ||
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | |||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | ||
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | ||
