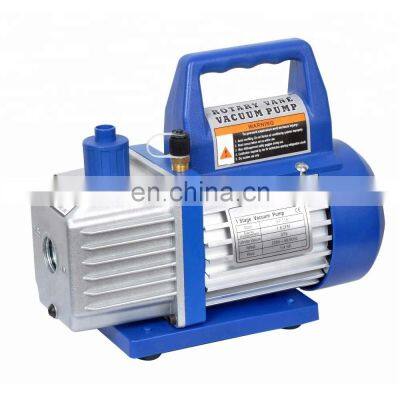

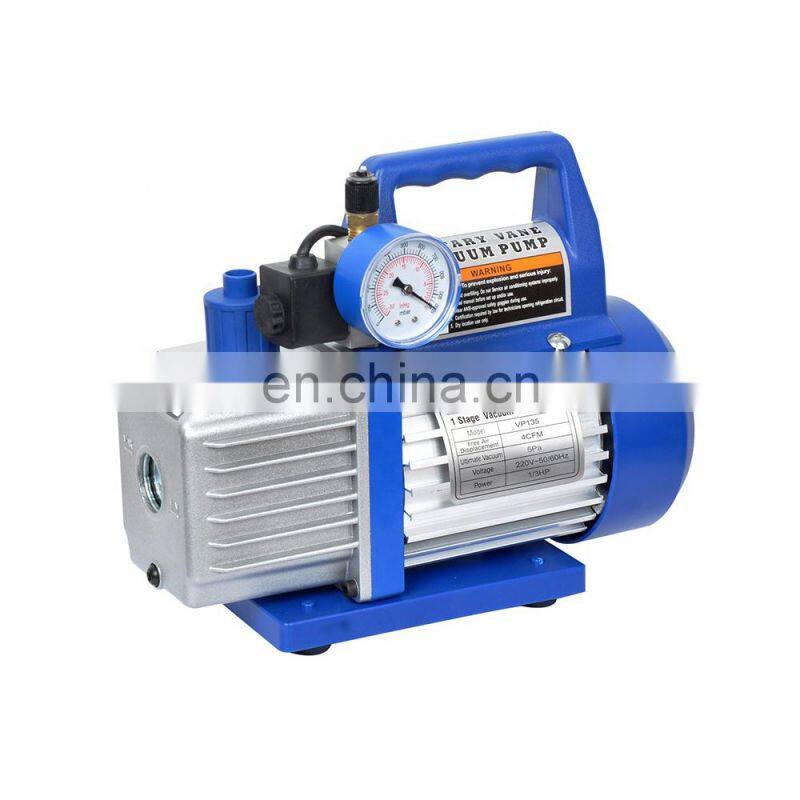

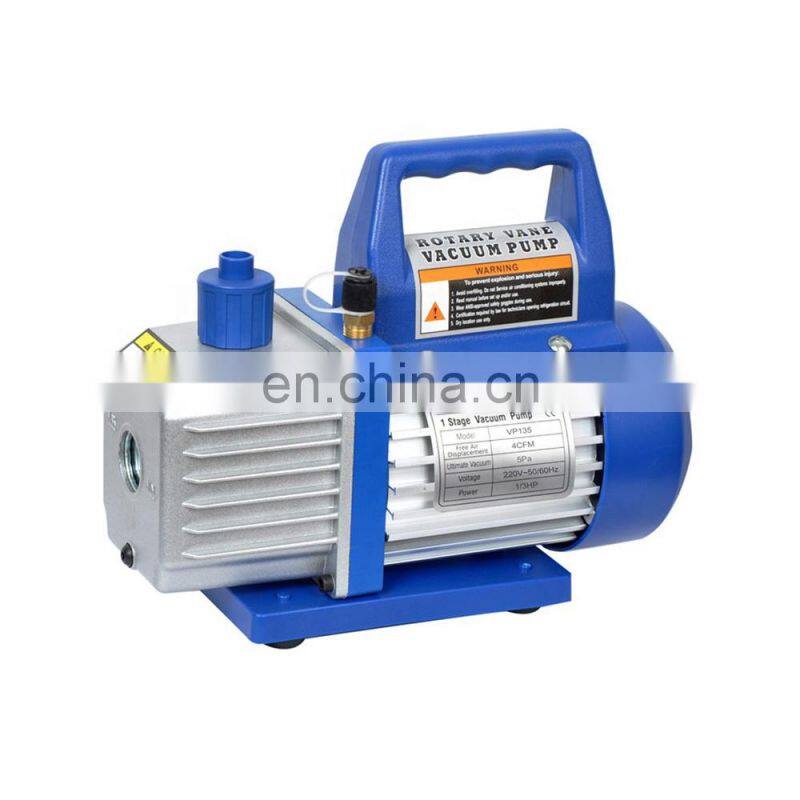

VP135 High Vacuum Pump Refrigeration Vacuum Pump Electric Vacuum Pump VP135
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VP125 Single Stage Rotary Vane Vacuum Pump Value Vacuum Pump Price VP125NegotiableMOQ: 1 -
VP280 Bomba De Vacio Vacuum Pump HVAC Vacuum Pump For Sale VP280NegotiableMOQ: 1
-
VP260 Small Vacuum Pump Air Hand Vacuum Pump Machine Vacuum Pump Double Stage VP260NegotiableMOQ: 1
-
Smart Digital Microcomputer Temperature Controller Digital Temperature Controller STC-3028NegotiableMOQ: 1
-
Environmental Protection Manifold Gauge Set Aluminum Valve BodyNegotiableMOQ: 1
Product Description
VP135 High Vacuum Pump Refrigeration Vacuum Pump Electric Vacuum Pump
1.High efficiency filter,smoke less.
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost
Technical Data | ||||
Model | VP135 | |||
50Hz | 3.5 CFM , 100L/min | |||
60Hz | 4 CFM , 114L/min | |||
Ultimate Vacuum | 5Pa , 150microns | |||
Stage | Single Stage | |||
Power | 1/3HP | |||
Inlet Port | 1/4"Flare | |||
Oil Capacity | 350ml | |||
Dimensions(mm) | 278x119x216 | |||
Weight | 6.5KG | |||
Single Stage | SC-1.0A | SC-1.5A | SC-2.0A | SC-2.5A | SC-3.0A | SC-4.0A | SC-5.0A | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | ||
150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | |||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | ||
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | ||
Dual Stage | 2SC-1C | 2SC-1.5C | 2SC-2.0C | 2SC-2.5C | 2SC-3.0C | 2SC-4.0C | 2SC-5.0C | ||
Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM | |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | |||
110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | ||
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | |||
Ultimate Vacuum | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | 3x10-1Pa | ||
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | |||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | ||
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | ||
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | ||
Dimensions(mm) | 270x119x216 | 270x119x216 | 320x134x232 | 320x134x232 | 370x140x250 | 370x140x250 | 390x140x250 | ||
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | ||
