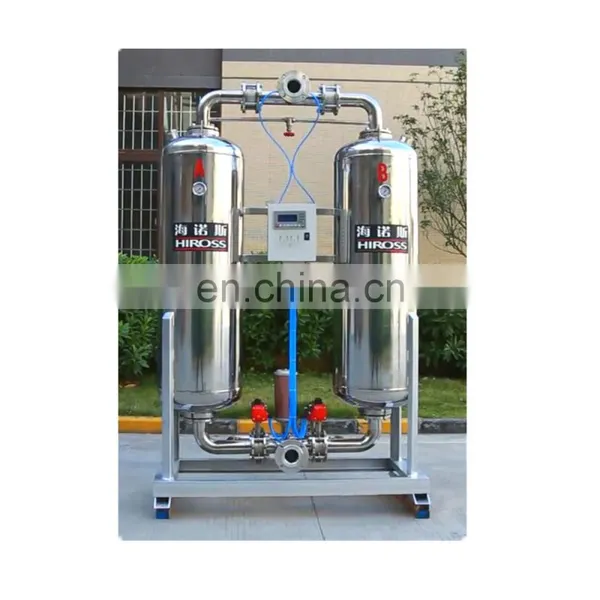

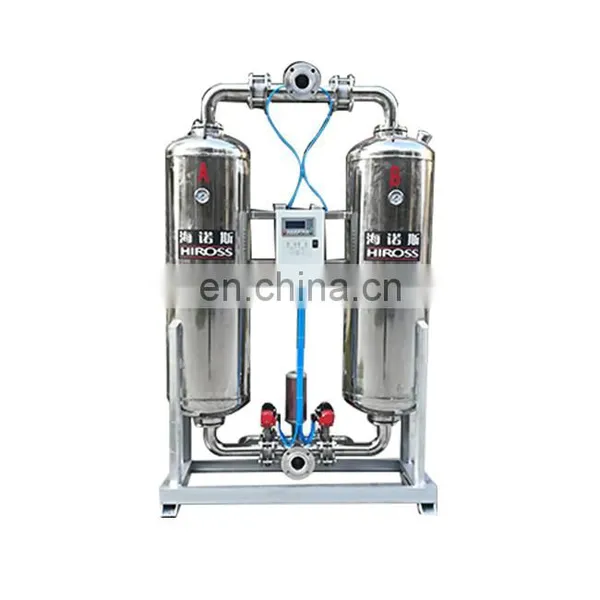

Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor

Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor thumbnail-1
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor thumbnail-2
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor thumbnail-3
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor thumbnail-4
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor photo-1
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor photo-2
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor photo-3
Big Capacity Stainless Steel Desiccant Adsorption Air Dryer for Compressor photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Details

Heatless Desiccant Air Dryer

Inlet Air Temperature: ≤40℃ or 104 ℉
Operating Temperature: ≤40℃ or 104 ℉
Freezing Medium (Refrigerant): Aluminium Oxide, Molecular  Sieve
Pressure Dew Point: -20 ~ -40℃ or -68 ~ -104 ℉

Offer IS Standard Air Quality
Type: Heatless Adsorption/Desiccant


Time Proven Design:

*Rust Prevention: have been treated against corrosion, it does not need to be treated against corrosion and dust again within 10 years on the promise that normal maintenance is ensured.

*Various Valves provides reliable and long service life.

*Vessels have a large filling level of desiccant bed that allows compressed air has enough time to contact with desiccant. That is, more efficient on drying process in the Adsorption Dryer.

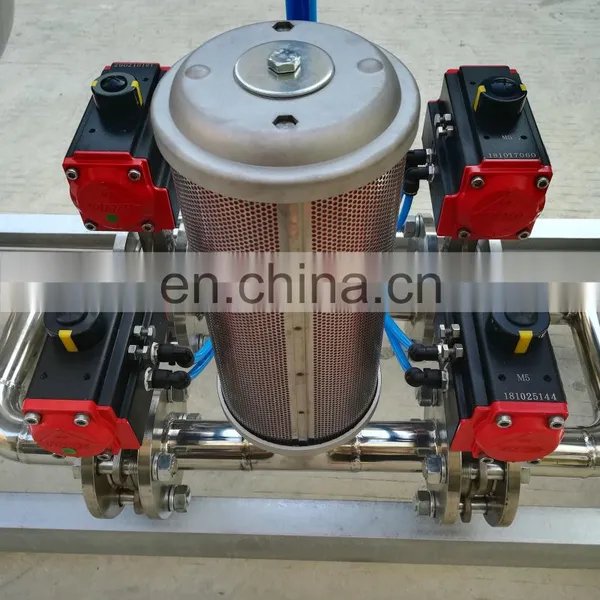

*Generously sized silencers ensure efficient noise reduction for the escaping regeneration air.


Ease of Monitoring:

*PLC Control Panel

*Electronic(Automatic)Drain Valve.

Safety Protection Systems for overheat and Systems Alarm and Stop for Errors and Overworking. Expand Machine Life.

*Each valve is controlled individually with a time-delay, which results in overlap-free switch-over without pressure peaks between adsorption and regeneration.

Product Show
Model
Capacity
(Nm^3/Min)
Air Entrance Diameter
Unit Size (mm)
(L*W*H)
Power
Weight
(Kg)
HR-10RD
1
G0.75''
600x300x1300
220V/50HZ
85
HR-15RD
1.5
G0.75''
700x300x1350
220V/50HZ
110
HR-25RD
2.5
G1''
800x350x1480
220V/50HZ
170
HR-38RD
3.8
G1''
900x350x1580
220V/50HZ
220
HR-55RD
5.5
G1''
950x350x1650
220V/50HZ
260
HR-69RD
6.9
G1.5''
1000x400x1850
220V/50HZ
370
HR-110RD
11
G1.5''
1100x450x2100
220V/50HZ
480
HR-150RD
15
G2''
1200x500x2200
220V/50HZ
650
HR-180RD
18
G2''
1300x550x2200
220V/50HZ
700
HR-220RD
21.5
DN65
1400x600x2300
220V/50HZ
850
HR-250RD
25
DN65
1500x650x2300
220V/50HZ
930
HR-290RD
28.5
DN80
1600x650x2400
220V/50HZ
1050
HR-350RD
35
DN80
1650x700x2500
220V/50HZ
1200
HR-450RD
45
DN100
1750x750x2600
220V/50HZ
1500
HR-550RD
55
DN100
1850x800x2800
220V/50HZ
1700
HR-650RD
65
DN100
1900x850x2850
220V/50HZ
1950
HR-750RD
75
DN125
2100x900x3000
220V/50HZ
2800
HR-850RD
85
DN125
2200x1000x3100
220V/50HZ
3300
HR-1000RD
100
DN150
2500x1150x3200
220V/50HZ
3600
HR-1400RD
140
DN150
3010x1710x3130
220V/50HZ
4980
HR-1600RD
160
DN200
3510x1810x3350
220V/50HZ
6250
HR-1900RD
190
DN200
3510x1810x3350
220V/50HZ
6460
HR-2100RD
210
DN200
3710x2010x3680
220V/50HZ
7280
HR-2400RD
240
DN200
3710x2010x3780
220V/50HZ
8520
HR-2600RD
260
DN200
3910x2210x3890
220V/50HZ
9360
Warehouse
Application
Packing & Delivery
Related Products
Certifications
Our company
HIROSS INDUSTRY MACHINERY CO.,ltd
HIROSS INDUSTRY MACHINERY CO.,ltd have more than 10 years experience in designing,researching and developing and manufacturing the
purify,environment friendly,energy saving equipment.Product various from compressed air dryer,dehumidifier,filter,chiller,to
accessories,etc.

HIROSS company occupies a 1500 square meter manufacturing field,focus on advanced technology,combining with internationally
processing technology to develop and manufacture a series of high performance,low vibration, quiet operation and trouble free
equipment.A series of HIROSS products have passed ISO9001,CE,2008 international quality system certification.

We are pleased to welcome you from home or abroad to our company for a visit or a business talk, even if you have already had a
familiar partner.
