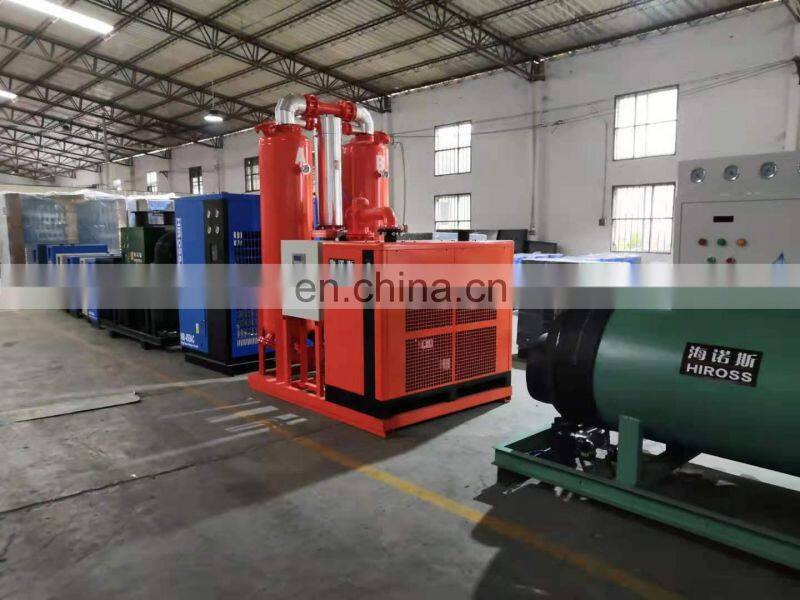

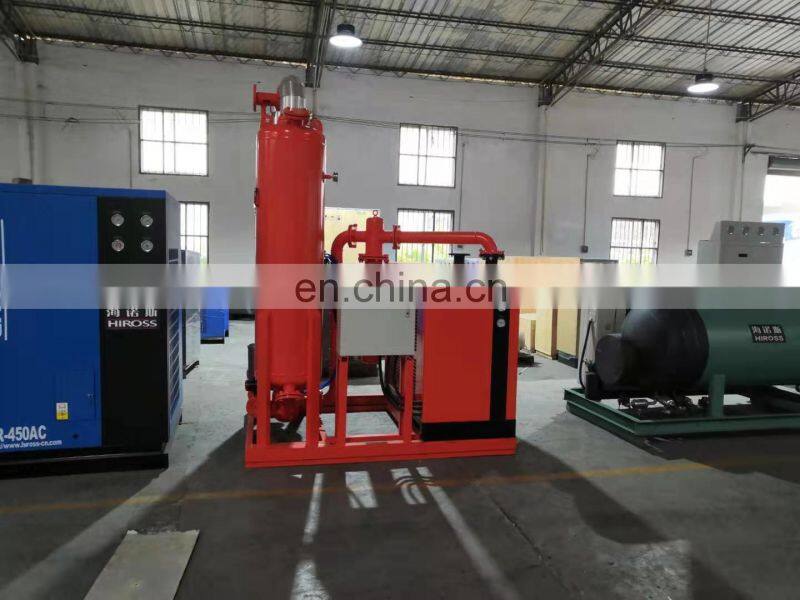

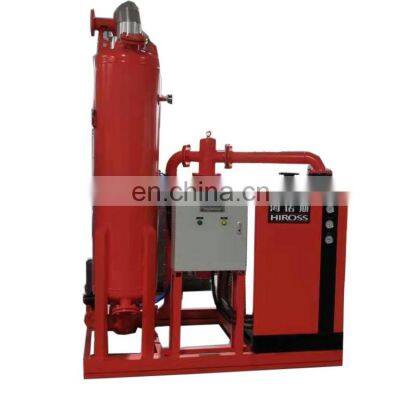

22N3M3/min Combined desiccant air dryer Air Dryer for air compressor
- T/T Credit Card
You May Like
-
Electric Heatless Regeneration Desiccant Compressed Air Dryer for Industrial
-
Heatless Purge Regenerated Adsorption Air Dryer for Air Compressor
-
honeycomb zeolite 4a lithium adsorbent desiccant xintao dehydration 3a powder molecular sieve
-
zeolite carbon sieves 3a 4a 13x adsorbent for oxygen concentrator generator molecular sieve
-
lithium s zeolite 0.4-0.8mm sieve oxygen 5a co2 battery crayo plant powder 4a molecular sieve
-
Hiross dehydration unit 4a sieve price for insulating glass closed loop dryer molecular sieve
Product Description
Blower Purge Desiccant Air Dryer
Type: Low Dew Point Combined Compressed Air Dryer
Rated Inlet Temperature:≤45°C
Outlet Pressure Dew Point: -40°C(-70°C is optional)
Rated Working Pressure:0.7MPa-1.0Mpa
Desiccant :Activated Aluminum or Molecular sieve
Pressure Loss:≤5% of inlet pressure
Control Model :PLC
Regeneration Way:Heated regenerative
Regeneration Air Loss:3-5%
Cycle Period :10-40min
Regeneration way:Heatless or Heated Regenerative
Working Mode:Automatic switching between tower A and Tower B,continuous working
Cooling way: air cooling or water cooling
Ambient Temperature:≤38°C(air cooling )
Cooling water temperature :≤32°C (water cooling )
Cooling water pressure :0.2-0.5MPa
Cooling Water:Industrial Recirculating water
Installation : Indoor without foundation
Power Supply: 380V/1PH/50HZ(Other power can be customized)
Features:
1.zero loss,energy-saving
2.Low noise
3.Easy installation and maintaince
4.The inner wall of the cylinder is professionally treated with rust prevention, with 10 years of no corrosion
5.Long service life
1.zero loss,energy-saving
2.Low noise
3.Easy installation and maintaince
4.The inner wall of the cylinder is professionally treated with rust prevention, with 10 years of no corrosion
5.Long service life
MODEL | Capacity | power HP | Import and export interface | Cooling water interface | L*W*H | weight |
22HR-220 | 22 | 8 | DN65 | G 1" | 1700*2070*2410 | 1390 |
