Product Description

Air Filter

One cubic foot of compressed air can contain millions of dirt particles, considerable amounts of water and oil - and even heavy metals like lead, cadmium and mercury. If they are not filtered out, trouble-free operation of the system components, like valves and cylinders, cannot be guaranteed in the long term. Poorly prepared compressed air can contaminate control valves, and cause seals to swell and wear prematurely. As a result, the right compressed air preparation is essential for reducing machine downtime, and for reducing maintenance and energy costs.

Grade
Q Grade Air Filter
P Grade Air Filter
S Grade Air Filter
C Grade Air Filter

Material

Multilayer Glass Fiber Filters
Activated Carbon Filter element

Accuracy
Oil Content
≤3PPM
≤0.1PPM
≤0.01PPM
≤0.003PPM
Filter Impurities

≤3Micron

≤1Micron

≤0.01Micron

-------
Max. Operate Temperature

120℃

120℃

120℃

120℃






Function
Removal of the oil and dust from the air, the purpose is to reduce the load of post-filter, and make sure that the service life of the filter.
Removal of the oil from the air to be micro-oil (0.1PPM) and removal of the dust<1Micron
To meet the requirements of Precision Industry, removal of the oil content in the air(0.01PPM), and removal of the dust <0.01Micron
Using Activated Carbon Filter element for removal of the odors in the air and Filter out oil content to (0.003 ppm).

Air Filter Parameter


Model
Air Capacity
(NM^3/Min)
Air Inlet/Outlet Diameter

Height
Diameter
mm
Weight
(KG)
HR-007
0.7
0.75''
260
80
0.9
HR-015
1.5
0.75''
260
80
0.9
HR-024
2.5
1.5''
330
100
1.5
HR-035
3.8
1.5''
330
100
1.5
HR-060
6.9
1.5''
430
100
2
HR-090
9
2.5''
530
150
7.6
HR-120
12
2.5''
900
150
12.9
HR-150
15
2.5''
900
150
13
HR-180
18
2.5''
900
150
13
HR-240
24
DN80
1190
310
27
HR-300
30
DN80
1100
420
60
HR-360
36
DN100
1150
420
65
HR-450
45
DN100
1230
459
80
HR-550
55
DN100
1130
513
115
HR-600
60
DN100
1155
565
130
HR-750
75
DN125
1210
657
140
HR-900
90
DN150
1210
657
145
HR-1200
120
DN150
1340
657
180
HR-1500
150
DN200
1340
706
190
HR-1800
180
DN200
1365
706
195
HR-2100
210
DN200
1365
746
196
HR-3000
300
DN250
1530
896
354
HR-3600
360
DN250
1660
946
398
or Customized

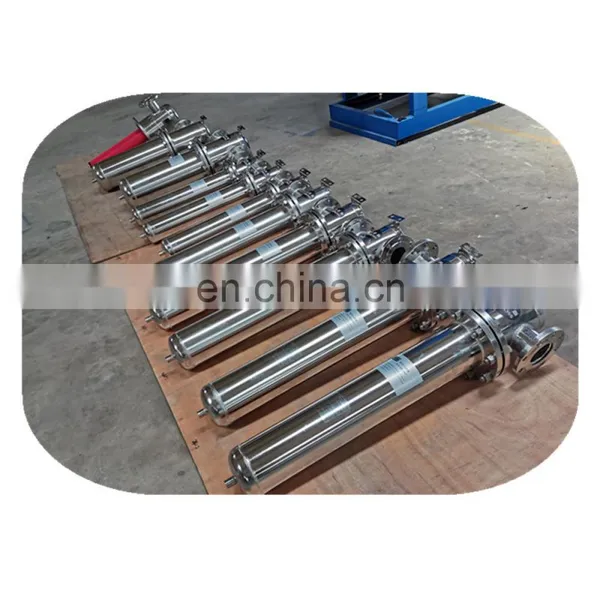

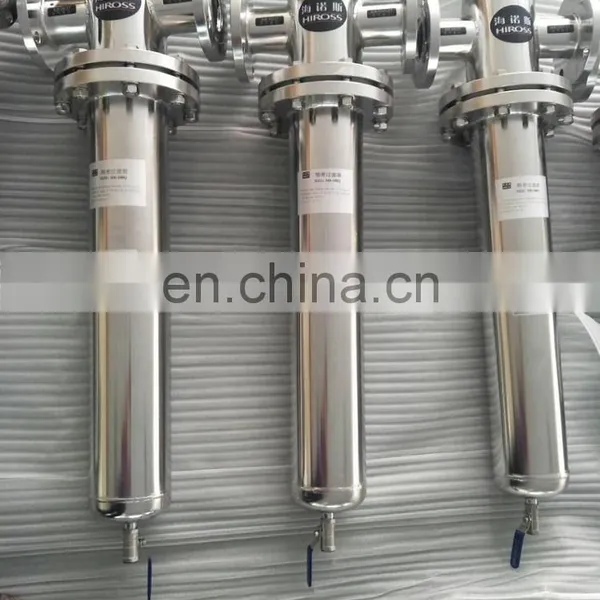

Product Show
Product Packing
Related Products

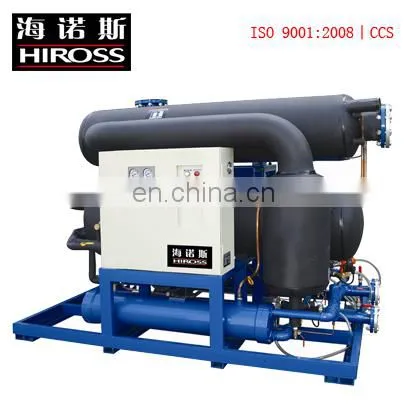

EXW_Water-Cooling Refrigerated Air Dryer for Compressed Air

91.8% Response Rate

EXW_Concealed Wall Ducted Dehumidifier for Swimming & Warehouse

91.8% Response Rate

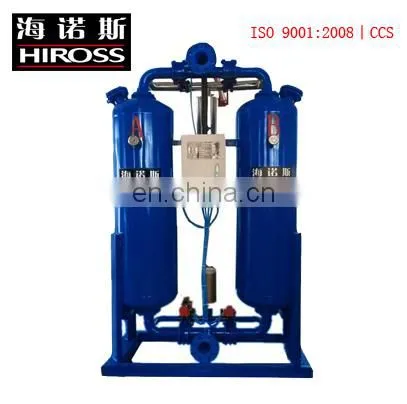

Anti-Explosion_Heatless Absorption Compressed Air Dryer with PLC Controller for Compressed Air
