6V-48V Lead Acid Battery Indicator

6V-48V Lead Acid Battery Indicator photo-1

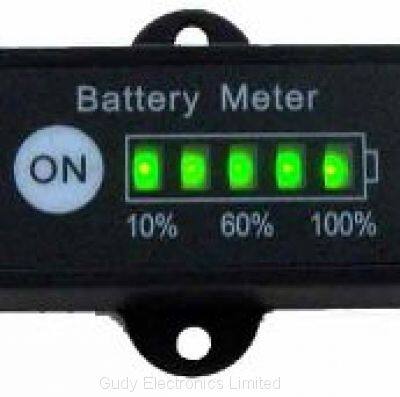

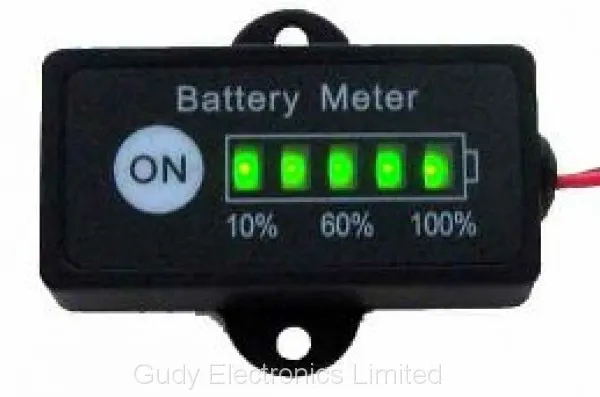

6V-48V Lead Acid Battery Indicator photo-2
6V-48V Lead Acid Battery Indicator photo-3

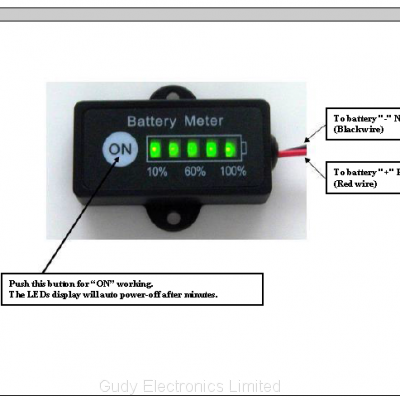

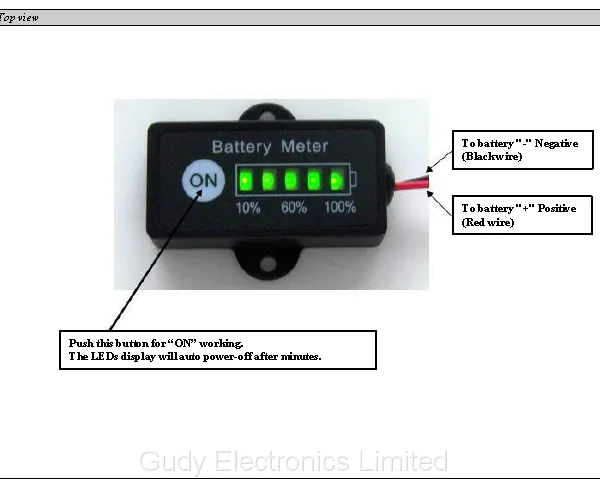

6V-48V Lead Acid Battery Indicator photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GUDY
Place of Origin:
China
Model Number:
BGM-A
Payment & Shipping
Payment Methods:
Port of Shipment:
YanTian
Delivery Detail:
3 days
Brand Name GUDY
Place of Origin China
Model Number BGM-A

This battery fuel gauge, is to measure battery terminal voltage and compare it with settings of voltage-capacity relation table built-in micro-processor, as work principle. Even for the same battery, discharging curve is different at high or low discharging current, so the measuring result is rough, which is 10%-20% tolerance.

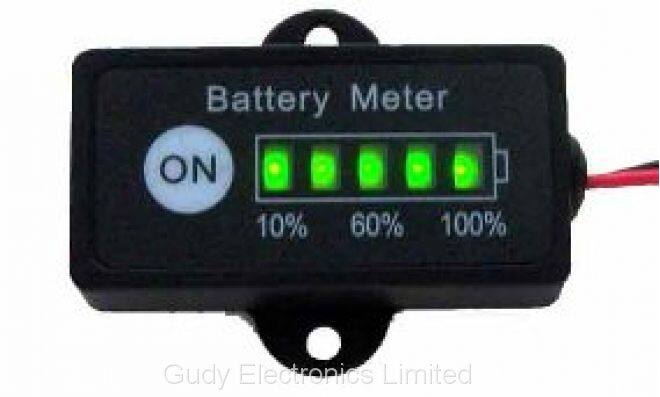

Feature:

LED1 flashing light
LED2~5 off
10% full capacity
LED1 solid light
LED2~5 off
20% full capacity
LED1 solid, LED2 flashing
LED3~5 off
30% full capacity
LED1~2 solid light
LED3~5 off
40% full capacity
LED1~2 solid, LED3 flashing
LED4~5 off
50% full capacity
LED1~3 solid light
LED4~5 off
60% full capacity
LED1~3 solid, LED4 flashing
LED5 off
70% full capacity
LED1~4 solid light
LED5 off
80% full capacity
LED1~4 solid, LED5 flashing

90% full capacity
LED1~5 solid

100% full capacity

Product Tags: battery indicator , lead acid battery indicator , 6-48V battery indicator
