Home > Products > lead acid battery charger > Electric bike chargers Universal chargers 24V 2800mA Lead Acid Battery Charger with fuel gauge indicating charge process

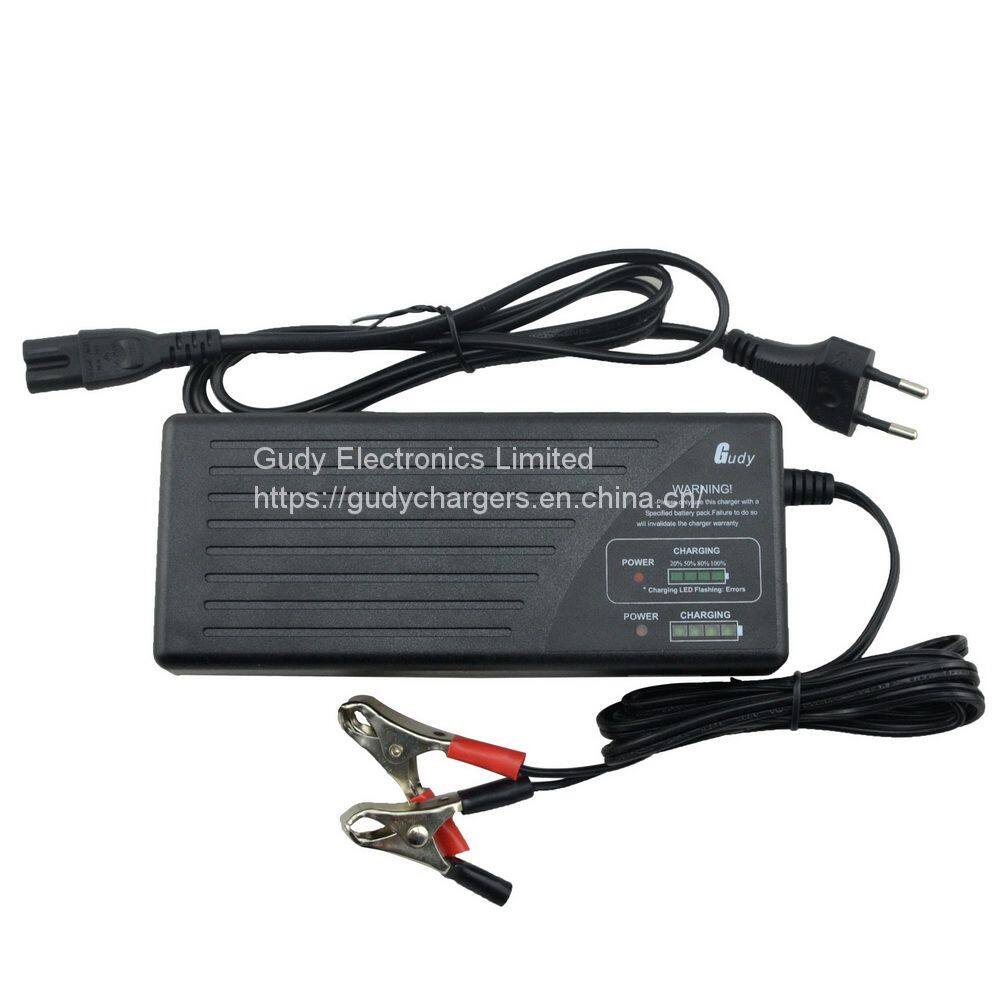

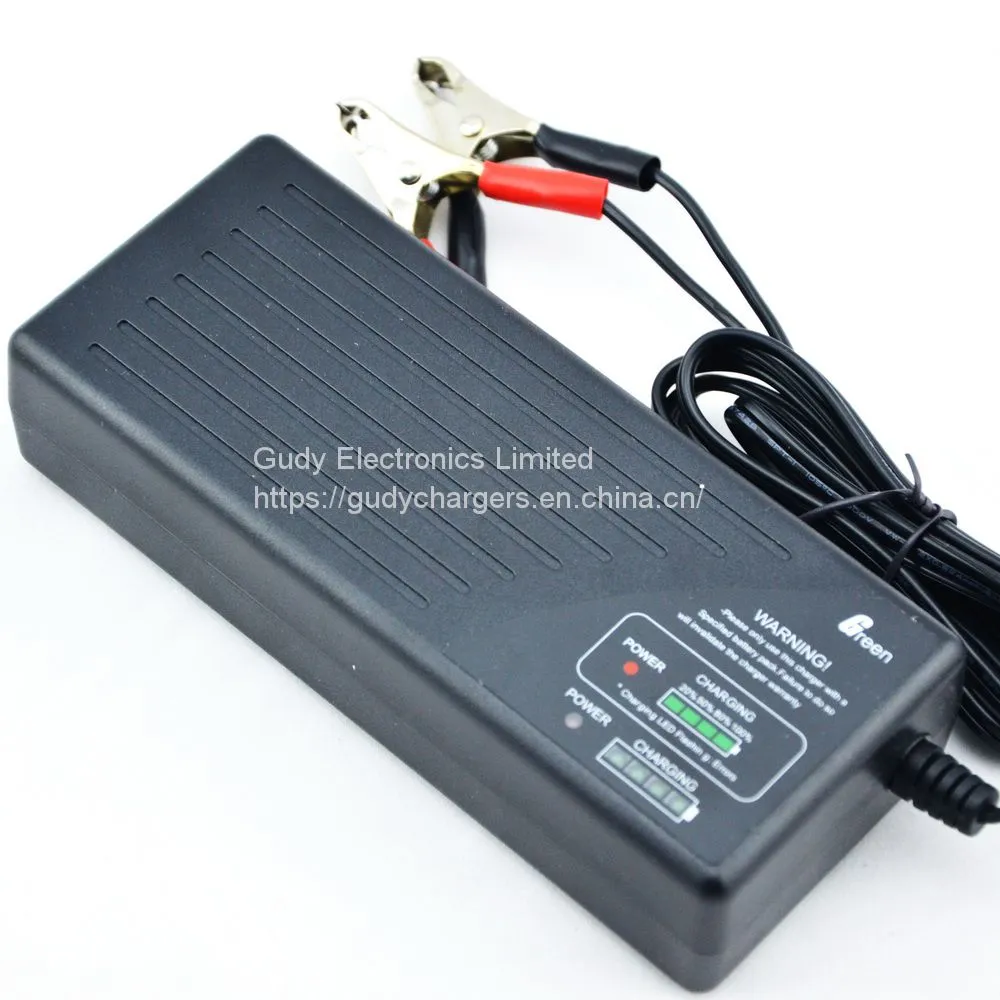

Electric bike chargers Universal chargers 24V 2800mA Lead Acid Battery Charger with fuel gauge indicating charge process
Negotiable
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- YanTian
- T/T PayPal Other
- 3 days
You May Like
-
Pneumatic joint spring clip, gas pipeline joint switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
-
Component sealed casing, motor stretched casing. stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
-
Potentiometer housing stretching parts, stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
-
American standard plug, charger plug., American standard 23.3 * 6.25 * 1.45mm plug, H65 brass material, nickel plated, without burrs.
-
Pneumatic quick connector spring clip, quick connector switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
-
Power inductor housing，Inductor housing, 8PIN common mode inductor housing, integrated electrical SMD housing, plastic packaging housing. WH-9100 material+C5191 copper terminal. Good high temperature resistance and easy welding.
Product Details
| Brand Name: | GUDY | Place of Origin: | China | Model Number: | G100-24A |
Product Description
24 Volt 2.8A 80 watt charger
Fuel gauge keeps track of charge progress
Can be left on the battery indefinitely to gently maintain the battery at full charge.
cUL and CE marked
Fully isolated, double insulated
Alligator clip output leads or other output connector as demand.
It is programmed smart auto Im-Uo-Up) charging process, designed for all kinds of 24V lead-acid battery, such as SLA, AGM and Gel battery. Stage "Im" will give bulk current charging. Then, "Uo" stage is followed, the output voltage is limited on 29.4V( for 24V battery); When the battery is nearly full, stage"Up" will turn on duty. At this stage, the battery is charged completely and the charger give some pulse to maintenance the battery.
What's more, it can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, it will enable protection mode when the battery polarity reversed or the output connectors shorted.
Input: 100~240V
Output: 27.6V 2.8A
Suit for Battery: 24 Volt 4~25Ah Lead-Acid Battery
Charge Process: MCU Controlled
Charger Indicator: With 5 LEDs to Display Battery Fuel Gauge
Output Protections: Short-circuit, Reverse Polarity...
Safety Approval: CE cUL
Size: 170 x 71 x 41mm
