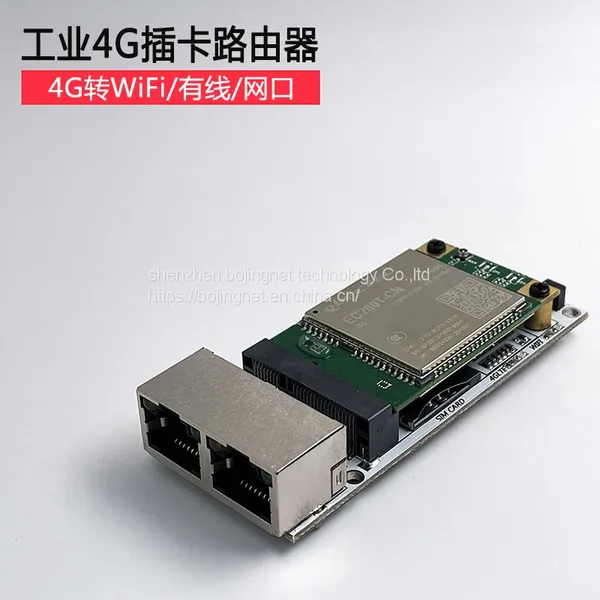

Industrial 4G Wireless Router Module

The 4G industrial router scheme IOT 4G data transmission module of the Internet of Things was taken to the outdoor mountains for network speed, signal and other tests. Although the stability is excellent, and there is no disconnection, it still has the wired/4G/WIFI intelligent switching backup function. When the wired network is disconnected, it can automatically connect to the 4G network to improve the availability of the network. In addition, 4G is online without any settings, plug in the card and use it easily. It is small and convenient to carry, which is the size of a lighter. Dual network ports can be freely switched from 4G to wired to network port to WiFi. Low power consumption, requiring only micro or 1.25 power supply. There is a web settings page in the background. You can freely change the WiFi name and password to connect with the server. Connect remote monitoring video without jamming.

Main functional features:

>It supports remote 4G-LTE module 2G 3G 4G dial-up Internet access, and supports full network communication;

>Support the dual network port 1WAN+1LAN or 2LAN mode, which can be selected through the page, and support the WAN port to connect to the external network;

>Support WiFi STA mode, and you can choose to use STA to connect to the superior route to connect to the external network;

>Support WiFi hotspot mode 2.4G b/g/n 150Mbps rate, which can be switched on and off by one button, suitable for various applications

>The system supports serial data transmission mode by default, and supports the server type TCP/MQTT board end as the client end;
