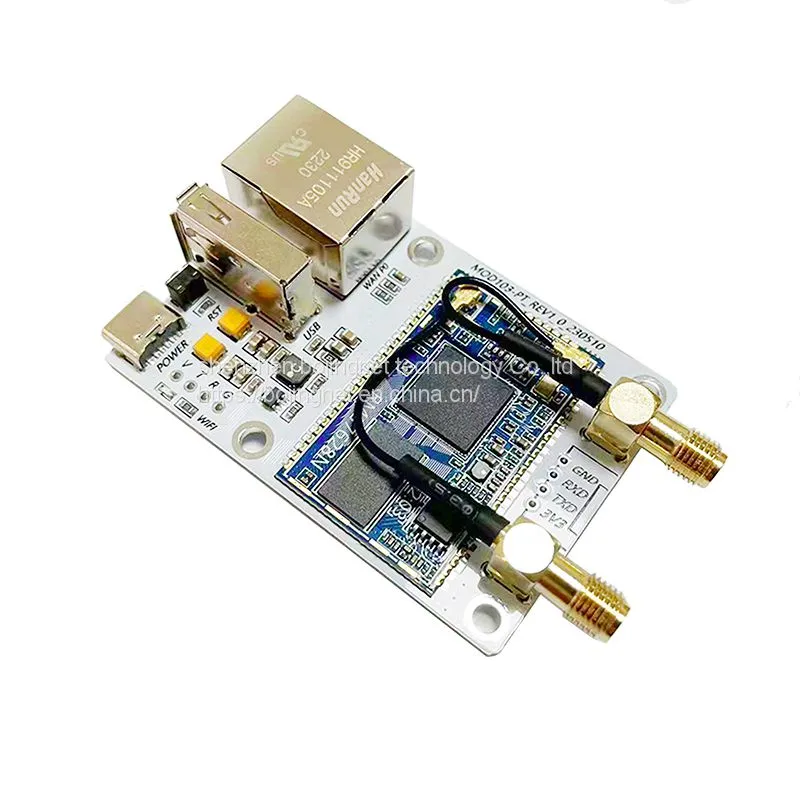

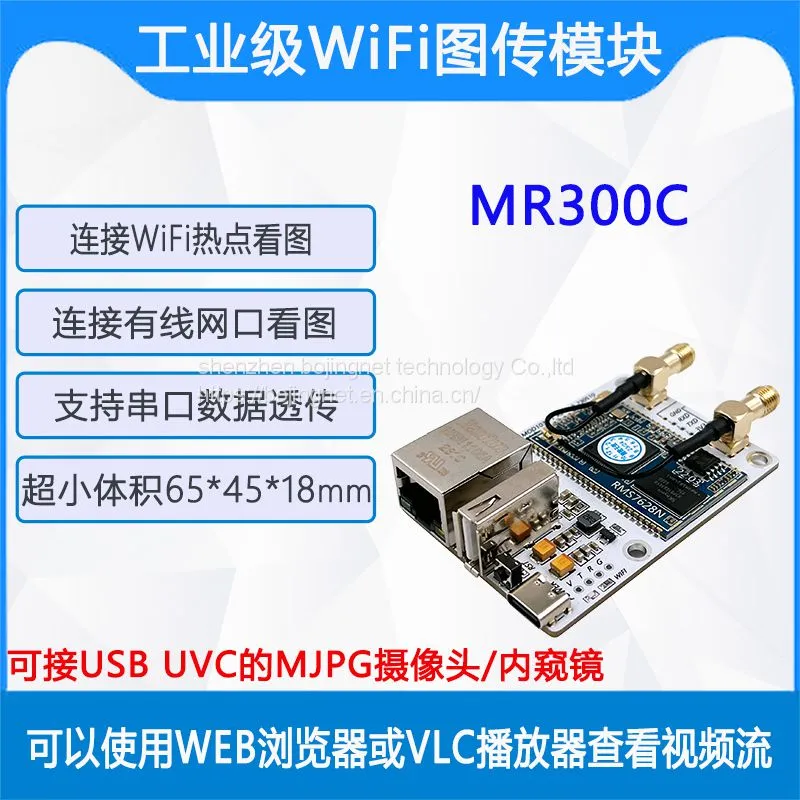

MR300C image transmission module USB camera endoscope to WIFI network port WEBcam robot image transmission

(Statement: Many USB camera manufacturers may have compatibility issues, such as not being able to view images properly, which is not a module quality issue. Please do not take photos if you mind the actual testing.)

◼ summary

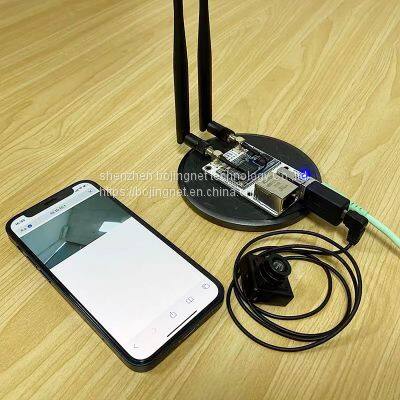

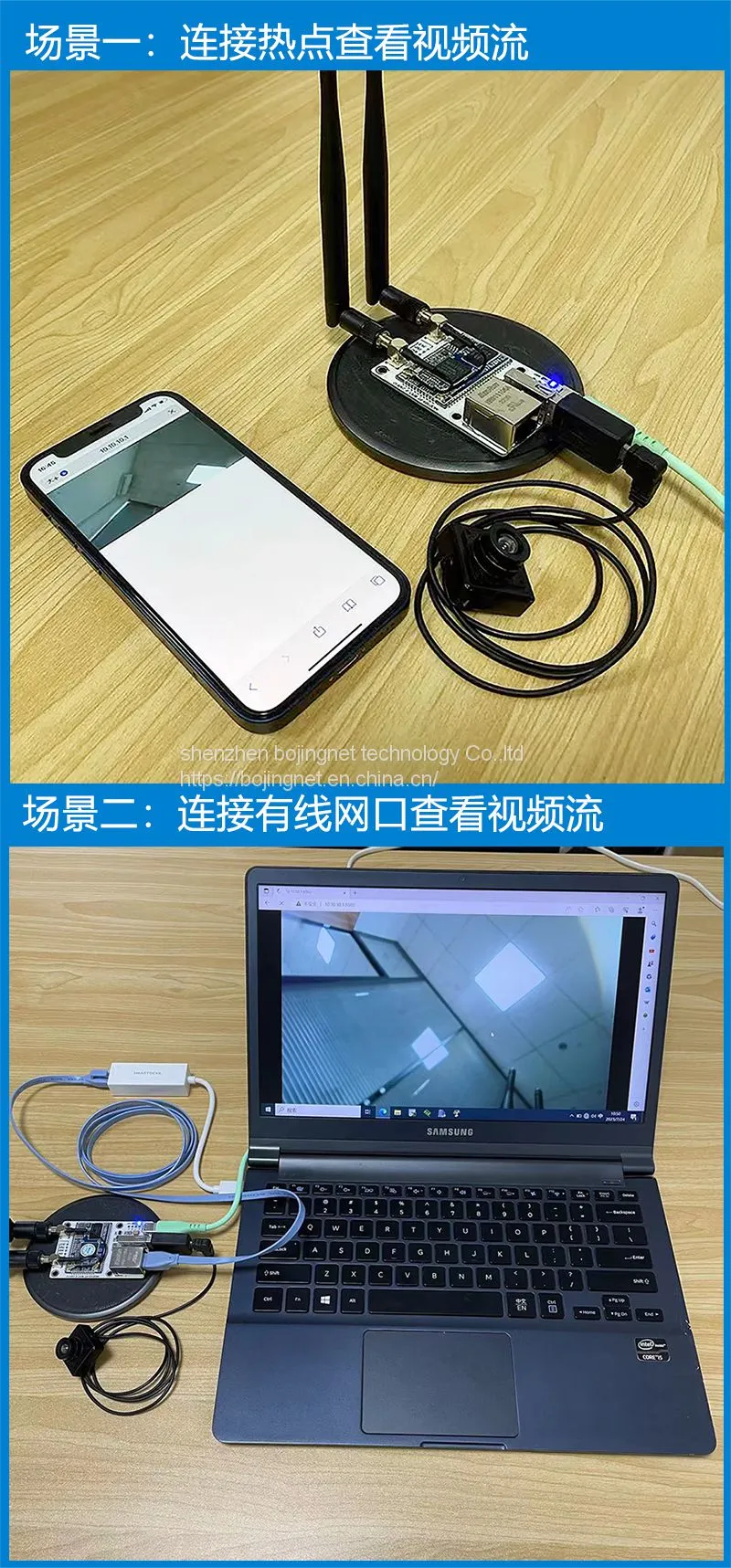

⚫ The MR300C image transmission module is implemented based on a MIPS processor, and the video stream can be viewed through the WIFI hotspot or network port of the computer/phone connection module

⚫ USB 2.0 Host interface, when connected to a USB UVC camera/endoscope, the default output video format must be MJPG

⚫ Camera/endoscope resolution supports up to 1280x720 30FPS, recommended 640x480 30FPS

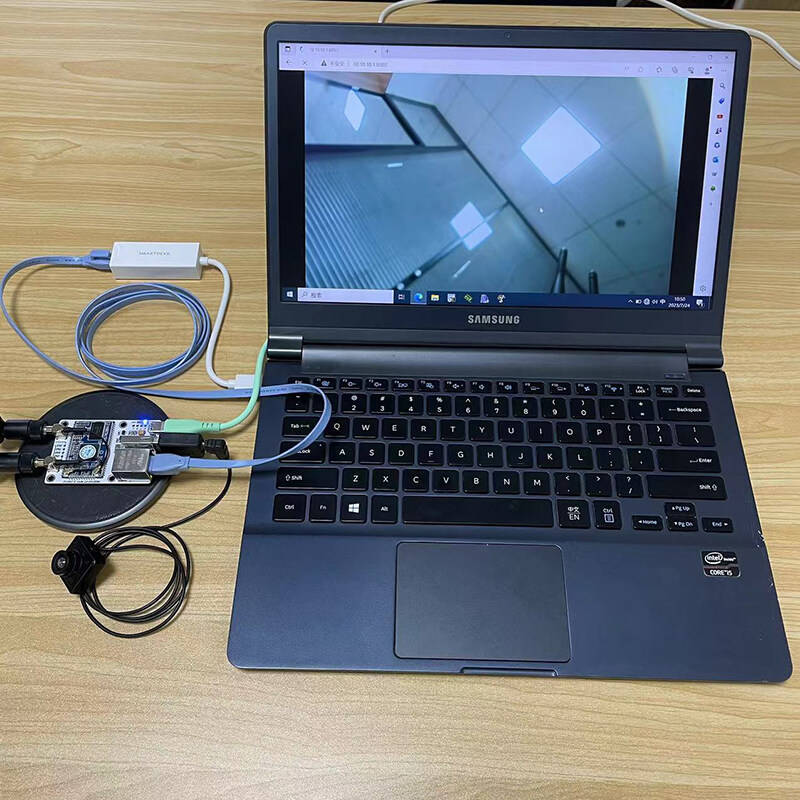

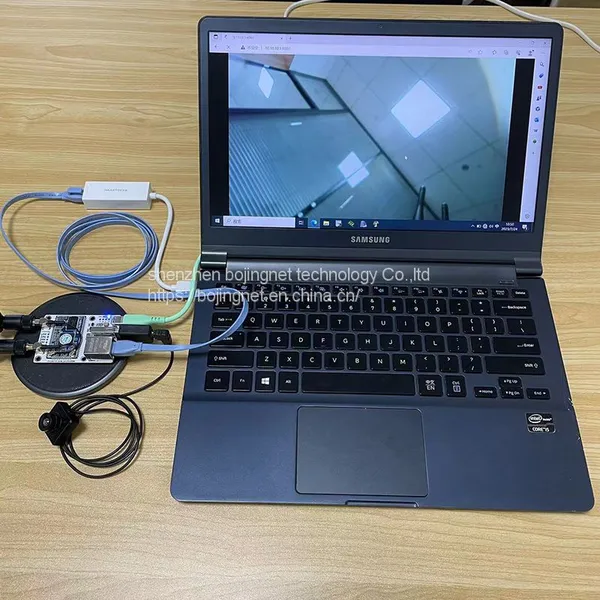

⚫ Computers/phones can use a web browser or VLC media player to view video streams

⚫ The module uses the HTTP protocol to transmit video streams, and the client can develop a decoding library or APP program by themselves after obtaining the video stream through the HTTP protocol port

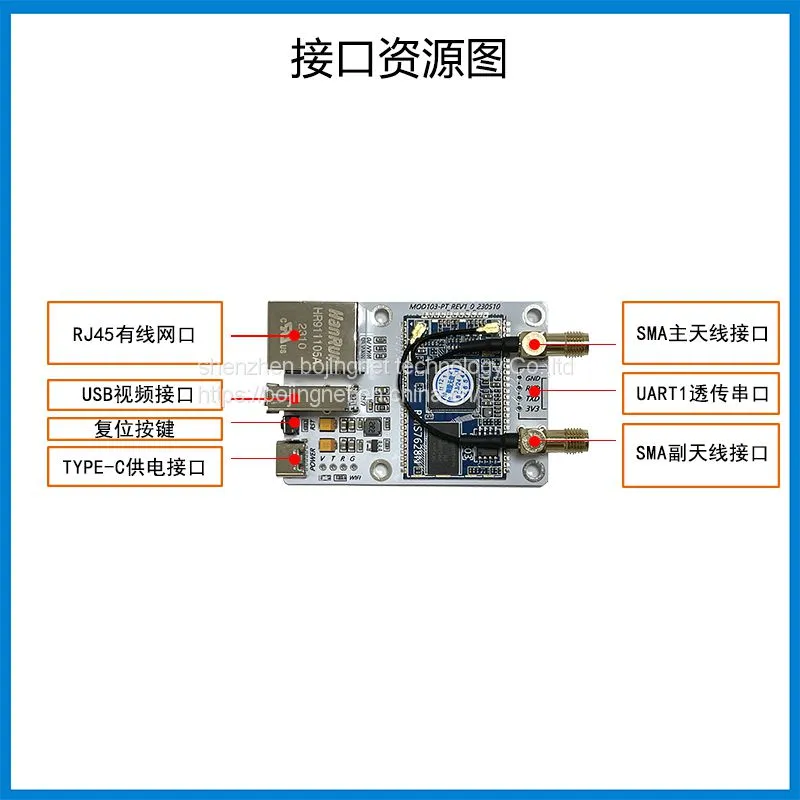

⚫ UART1 supports data transparent transmission with TCP client, with the module serving as TCP server 10.10.10.1:20140

⚫ Application scenarios: WIFI endoscopes, industrial WIFI cameras, speech production equipment, high-definition cameras, auto repair equipment, beauty equipment, etc
