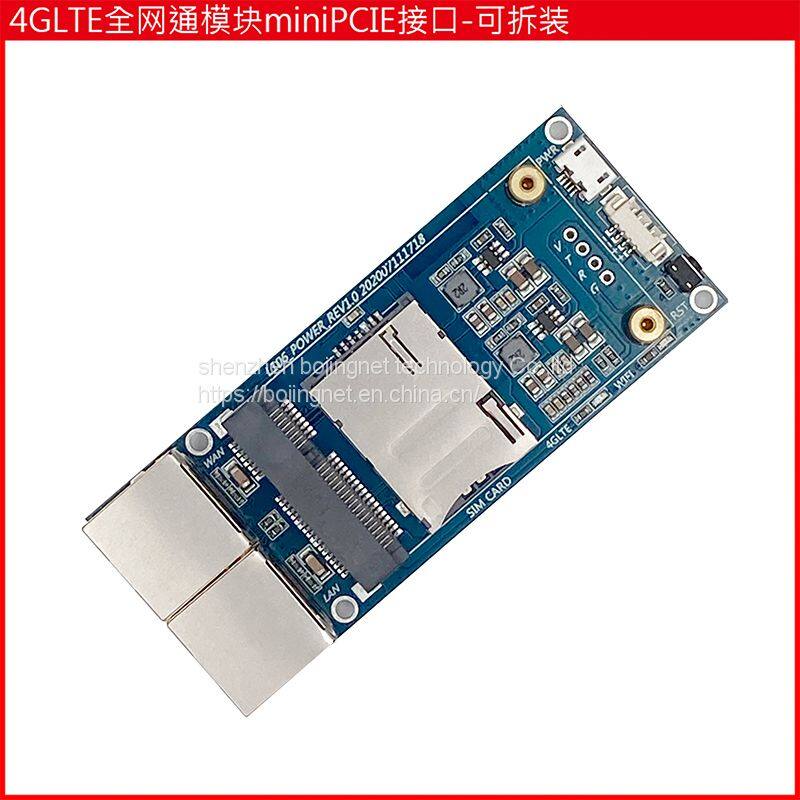

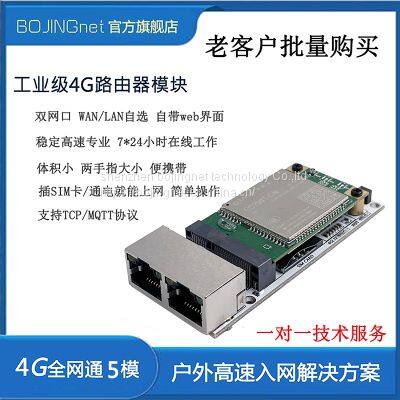

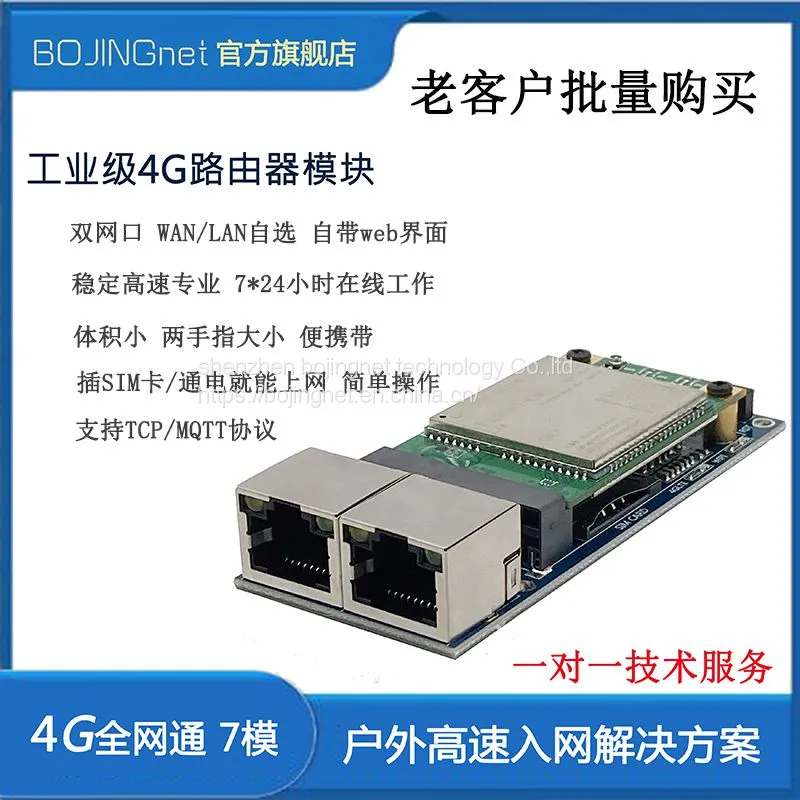

Industrial 4G router board 4G to wifi adapter 4g LTE Wireless communication module Solution customization development
4G router is a high-speed router of industrial Internet of things, which is compatible with 4G / 3.5g/3g/2.5g network. With flagship configuration, industrial protection and wide temperature design, it can easily build a high-speed and stable wireless transmission network, and provide users with wireless long-distance data transmission function by using public LTE network.
The following is to introduce the working principle and function of the 4G to WiFi router module of bojingnet
1.Transfer 4G LTE to WiFi or network port, support moving EC20 / ec200t, connect 4glte module with SIM card to access the Internet
2.DTU > serial data transmission, that is, the MCU serial data is converted into TCP protocol and sent to the server, which supports two server types of TCP / mqtt protocol; It can realize ZigBee intelligent gateway > Bluetooth intelligent gateway > Lora intelligent gateway > Z-Wave intelligent gateway
3.The WiFi name, password and related configuration of the device can be modified on the web page
4.WiFi supports AP mode or sta mode. Sta mode can be configured to connect to WiFi router through web page, and supports the coexistence of AP mode and sta mode; It can also be configured through HTTP protocol

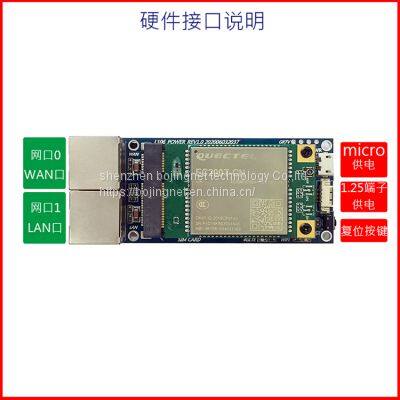

5.The dual network port supports the 10m / 100M self-adaptive mode of WAN port and LAN port, and can convert network port to WiFi or WiFi to network port
6.It can run the upper Linux applications written by users, only using our cross compile link, based on openwrt
7.Support python2.7 to develop applications
