Final use
Product Introduction
The monofilament yarn extruding machine can produce 0.15mm-3mm plastic round yarn which can be used as to produce production rope fishing net brush broom and so on.
Our monofilament yarn extruding machine can use 100% PP or HDPE recycled materil pellets which helps customers saving production cost.
Brush Filament Machine Production Equipment(As reference)
|
Number |
Name of production equipment |
Quantity |
| 1 | Electric control system | one set |
| 2 | SJ90 / 33 single screw extruder | one set |
| 3 | 100CC metering pump | one set |
| 4 | screen changer | one set |
| 5 | spinneret die (shared by multiple specifications) | one set |
| 6 | cooling water tank | one set |

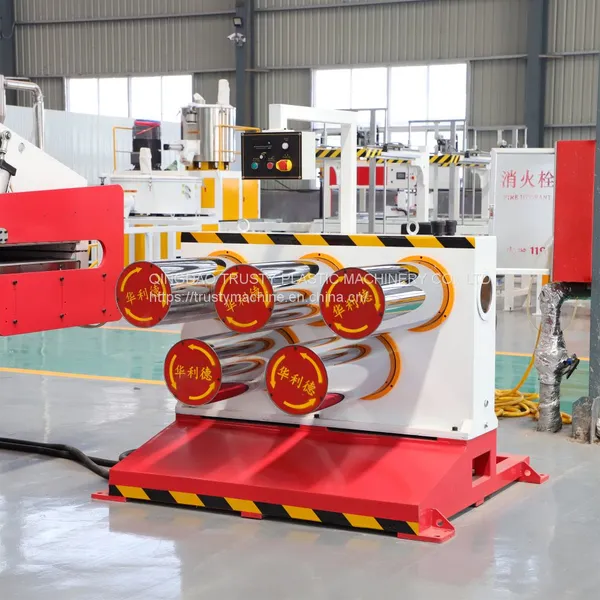

| 7 | the first five roller haul off machine | one set |
| 8 | hot water stretching oven (5m) | one set |
| 9 | the second seven roller haul off machine | one set |
| 10 | glazing machine | one set |
| 11 | double station winder | one set |
| 12 | offline setting drying room (with winding box) | one set |
| 13 | pneumatic cutter | one set |
| 14 | mixer + dehumidification system | one set |
Technical Parameter
| Model | TPM-75 | TPM-80 | TPM-90 |
| Screw L/D | 30:1 | 30:1 | 30:1 |
| Gearbox model | 200 | 225 | 225 |
| Main motor | 18.5kw | 22/30kw | 30/37kw |
| Capacity(kg/h) | 80-100kg | 100-120kg | 120-140kg |
| Mould Dia. | 200 | 200 | 200 |
| Filament Dia. | 0.01-2.5mm | 0.015-2.5mm | 0.015-2.5mm |
Purchase Notes
1)Can you tell me what raw material you want to use?
2)Can you tell me the filament you want to produce is round or flat?
3)Can you tell me what is the diameter range of the filament you want to produce?
4)Can you tell me what the end use is?
After get your information from email/Whatsapp,I will give you quotation ASAP.
If you don't know much about this machine, I can also explain it to you.

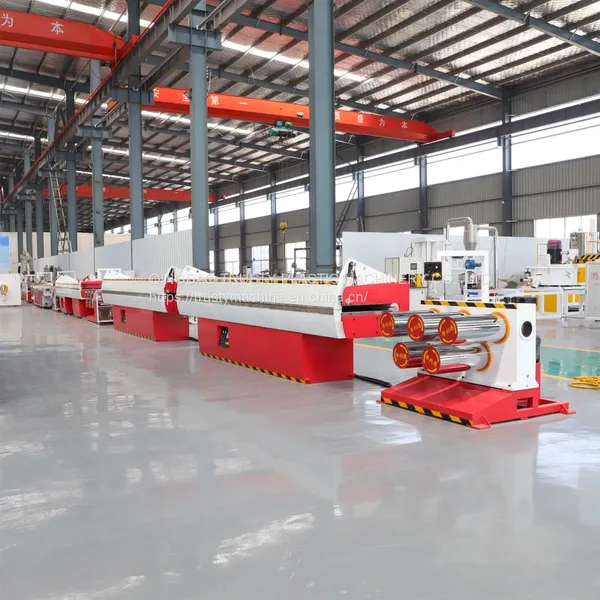

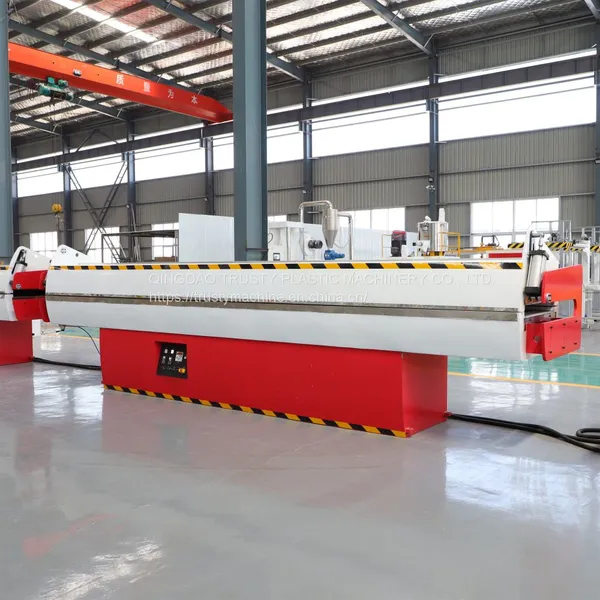

Machine Photos
About us
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipment
manufacturer integrating design, research and development, production and sales.
The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.
Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.
Our company's main products are:
PVC door and window profile production line
WPC wood-plastic profile production line
PVC wall panel production line
PVC/PE/PPR/PP pipe production line
PP/PE/ABS board/sheet production line
PVC/WPC crust foam board production line
PE/PP/PC hollow sheet production line
PVC roof tile production line
PP/PET packing belt production line
According to customers' needs, to achieve diversified processing customization.
Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
