PVC Pipe Making Machine

PVC Pipe Making Machine thumbnail-1
PVC Pipe Making Machine thumbnail-2
PVC Pipe Making Machine thumbnail-3
PVC Pipe Making Machine thumbnail-4
PVC Pipe Making Machine thumbnail-5
PVC Pipe Making Machine photo-1
PVC Pipe Making Machine photo-2
PVC Pipe Making Machine photo-3
PVC Pipe Making Machine photo-4
PVC Pipe Making Machine photo-5
US$ 35000 - 55000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Trusty
Place of Origin:
China
Model Number:
SJSZ65/132
Contact Supplier Request Quote Chat Now
Qingdao Trusty Plastic Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Trusty
Place of Origin China
Model Number SJSZ65/132
After-sales Service Provided Engineers available to service machinery overseas
Weight custom-made
Dimension(L*W*H) custom-made
Voltage 220V
Application Pipe
Condition New
Power(W) 37kw
Automatic Grade full Automatic
Plastic Processed PVC
Screw Design Double-screw

PE/HDPE PIPE MAKING MACHINE
PP/PPR/PERT PIPE PRODUCTION LINE
PVC SINGLE DOUBLE FOUR PIPE EXTRUSION LINE
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe1.PVC pipe extrusion line

Machine List
No. Equipment list for PVC pipe manufacturing plant Quantity
1 Mixing machine 1 set
2 Auto feeder 1set
3 Conical double screw extruder 1 set
4 Die head and sizing mold customized
5 1st  cooling tank 1 set
6 2nd  cooling tank 1 set
7 haul off device 1 set
8 auto cutting machine 1 set
9 Laser printer or ink jet printer 1 set
10 PVC pipe stacker 1 set
11 Crushing machine 1 set
12 PVC powder milling machine 1 set
13 Air compressor 1 set
14 water chiller 1 set

China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain PipeTechnical Parameter

Diameter range(mm) Extruder Model Main motor power KW Max. Capacity(KG/H) Max. Haul off   speed(m/min.)
16-40 Dual SJSZ-51/105 18.5 AC 150 10
20-63 Dual SJSZ-65/132 37 AC 250 15
20-63 SJSZ-51/105 18.5 AC 120 15
50-160 SJSZ-65/132 37 AC 250 8
63-200 SJSZ-65/132 37 AC 250 3.5
110-315 SJSZ-80/156 55 AC 450 3
315-630 SJSZ-92/188 110 AC 800 1.2

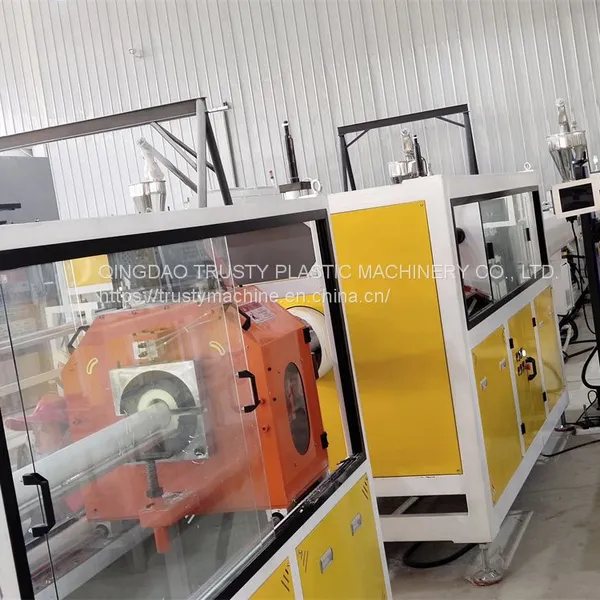

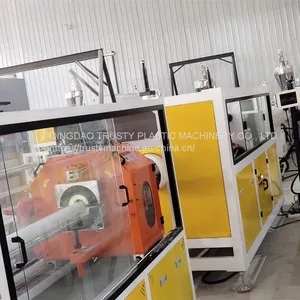

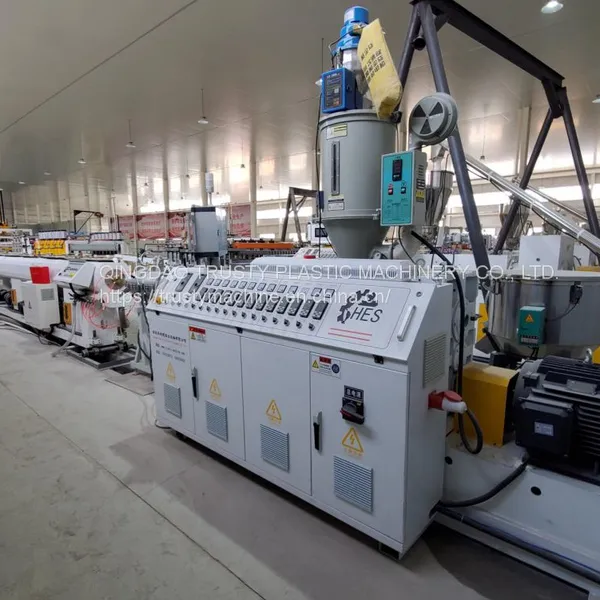

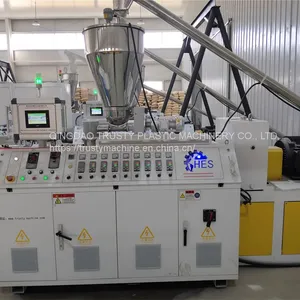

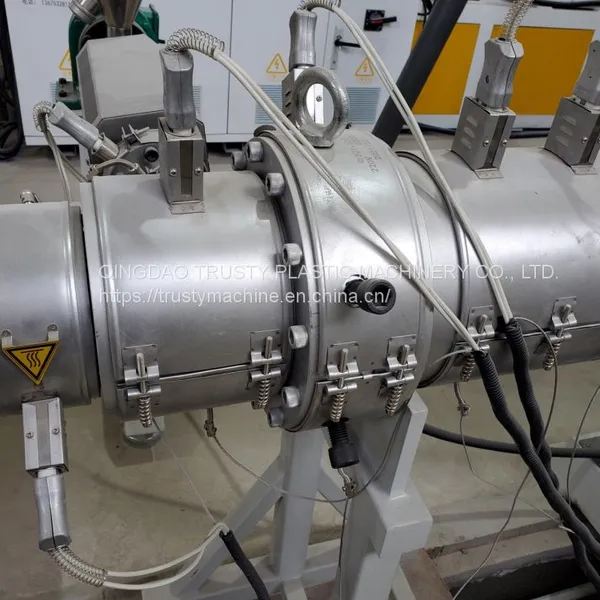

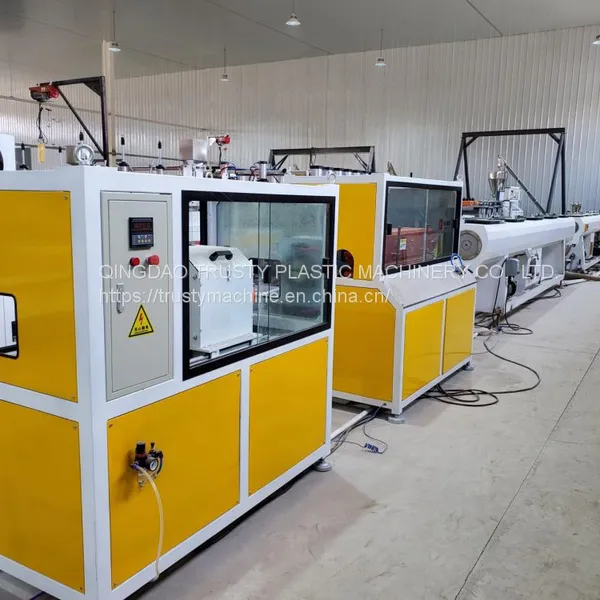

Machine Photos

China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe



China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe


2.PE pipe extrusion line
Machine List

No. Item Qty
1 Automatic Feeder and Drier 1
2 Single Screw Extruder 1
3 Color Line Co-Extruder 1
4 Mould 1
4.1 Die Core
4.2 Die Lips
5 Vacuum Calibration tank 1
5.1 Copper Calibration Sleeve
6 Spray Water tank 1
7 Three cater pillar Haul-off unit 1
8 No dust Cutting machine 1
9 Pipe stacker 1
10 Laser printer 1

China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain PipeTechnical Parameter

Model Extruder Pipe diameter(mm) Motor Power(kw) Output(kg/h) Length to diameter ratio(L/D)
SJ-63 SJ65 20-63 37 80-150 33:1
SJ-110 SJ65 20-110 55 100-200 33:1
SJ-160 SJ75 50-160 75 150-250 33:1
SJ-250 SJ60 50-250 90 400-500 38:1
SJ-315 SJ90 110-315 160 280-400 33:1
SJ-450 SJ75 200-450 160 600-800 38:1
SJ-630 SJ90 315-630 250 800-1000 38:1
SJ-800 SJ150 450-800 360 600-1300 33:1
SJ-1000 SJ150 630-1000 380 800-1500 33:1
SJ-1200 SJ120/SJ90 800-1200 450 900-1800 33:1

Machine Photos

China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe



FAQ
1.Are you a factory or a trading company?
Factory
2.Can I get free samples?
Send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
3.How do I get response quickly?
If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
China PE HDPE PVC PP Plastic Pipe Make Making Extruder Machine for Gas Water Supply Drain Pipe
