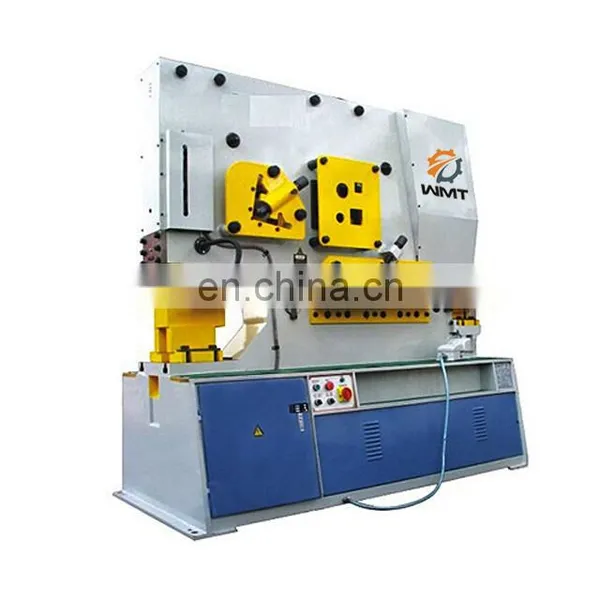

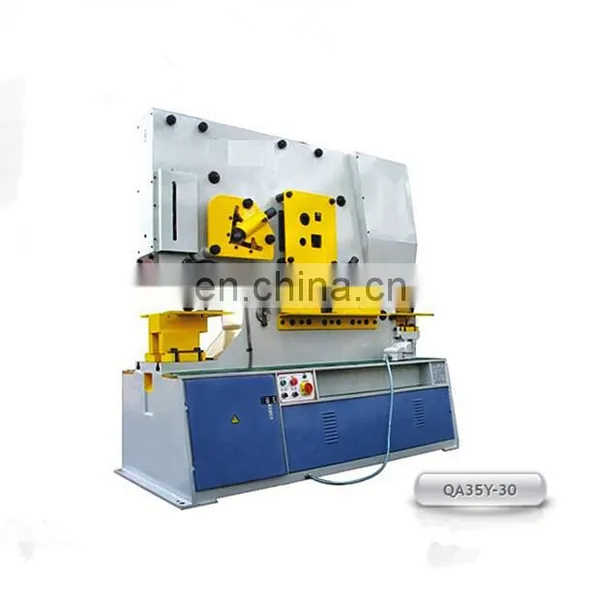

Hydraulic press for manufacturing plant hydraulic press QA35Y-30 metal punching machines shearing machines
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
punching machine J23-125 C frame power press punching machine for metal work
-
J23-80 80ton C frame power press punching machine for metal working
-
china hydraulic press machine HP50 hydraulic press machine 50 ton for sale
-
press brake machine in turkey WC67Y-50x2500 cnc press brake bending machine nc press brake machine
-
sheet metal shearing machine qc12y shearing machine QC12Y-8X3200 new hydraulic shearing machines
-
WC67Y 650/6000 hydraulic press brake machine price for 16mm thickness
Product Description
Product Description
Specification
Main Specification | Unit | QA35Y-30 | ||
Shearing | mm | |||
Flat bar (W*T) | mm | 250*30,450*20,750*8 | ||
Square bar | mm | 80*80 | ||
Round bar | mm | 80 | ||
Joist (Type) | 28# | |||
Channel (Type) | 28# | |||
T-bar (Type) | mm | 120*12 | ||
Cutting of angle steel at 90° | mm | 200*200*18 | ||
Cutting of angle steel at 45° | mm | 100*100*10 | ||
Punching(D*T) | mm | 30*20,40*20 | ||
Anble fltange(L*W*H) | mm | 120*72*18 | ||
Punching force | KN | 1200 | ||
Depth of throat | mm | 450 | ||
Max. Length stroke | mm | 80 | ||
Stroke times | per/min | 7~28 | ||
Motor power | kw | 11 | ||
Net weight | kg | 5800 | ||
Overall dimensions(L*W*H) | mm | 2200*1020*2116 | ||
Packing dimensions (L*W*H) | mm | 2240*1400*2200 | ||
Notes: 1.Based on materrial strength of 45kg/mm tensile 2. Design and specifications subject to change without notice. | ||||
