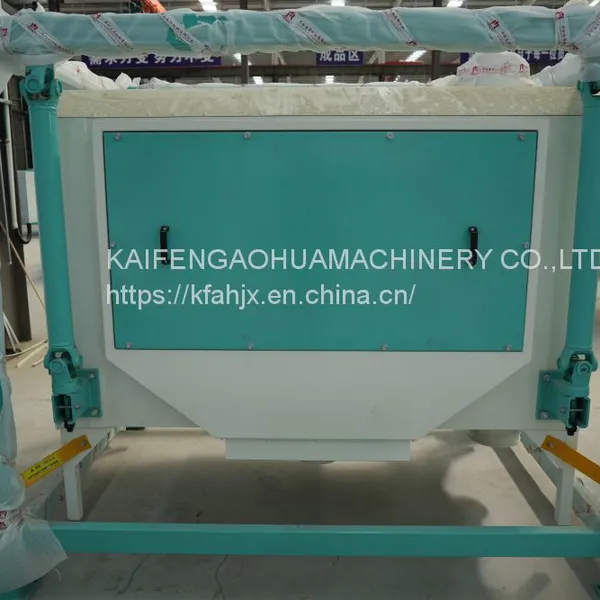

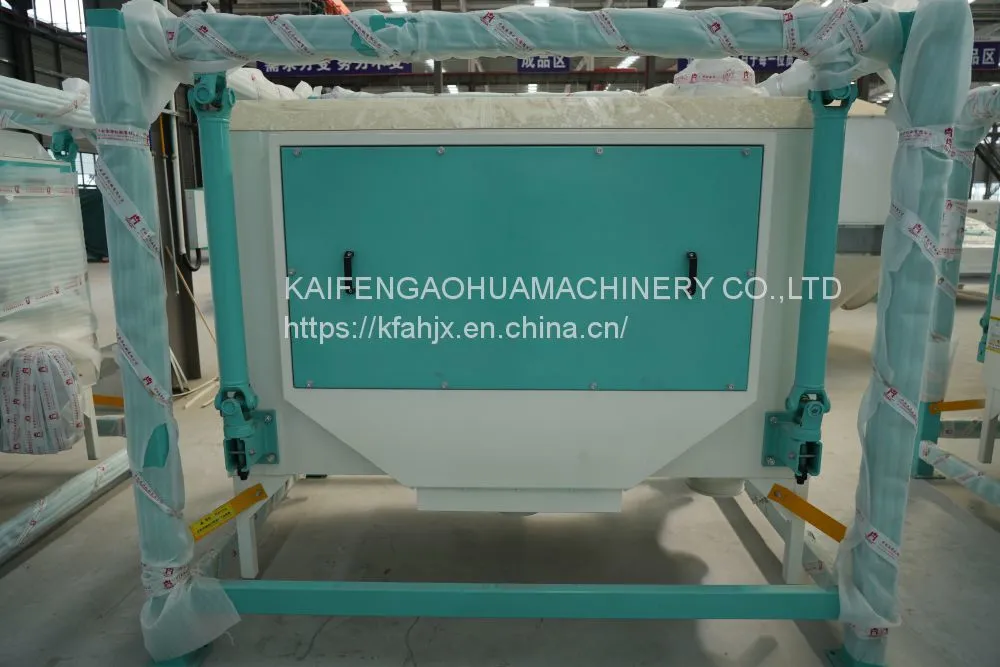

Product introduction: The new closed double-chamber sieve is widely used in flour, garlic powder, feed, pharmaceutical and chemical industries. Its pressing mechanism draws on the vertical and horizontal independent pressing methods of square sieves. Looseness fundamentally eliminates the phenomenon of powder channeling and powder leakage. The fully enclosed stainless steel outer channel replaces the traditional channel for checking the upper and lower sieves of the sieve. The effective sieving area is increased by 32% per bin, which improves the processing capacity of the equipment. 25%.
Product features: The equipment has common type and closed type for users to choose, wooden double-sided plastic screen grids, 6-12 grids are configured according to different screening requirements, glass fiber reinforced plastic hanging rods hoist the screen body, stable operation, less time for start and stop swimming , Small footprint, flexible use, electrostatic spraying surface.
| Specifications | Processing capacity T/h | Power kw | Rotation diameter mm | Weight kg | Dimensions [LxWxH] |
| FSGW2x100 | 8-12 | 2.2 | 45-60 | 1600 | 2800x1720x2010 |
| FSGW2x120 | 10-20 | 2.2 | 45-60 | 1800 | 3100x1860x2050 |
