Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Bearing > 6-256907 AE7S17 Front Wheel Hubs Bearings for Car VAZ-2110 VAZ-2111 VAZ-2112 VAZ-2115

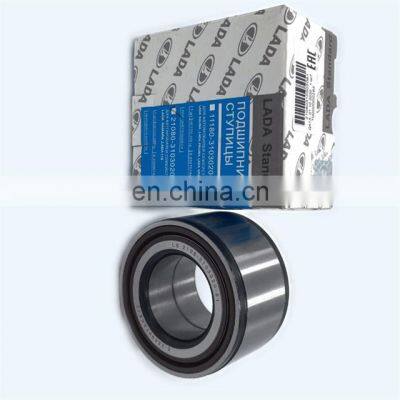

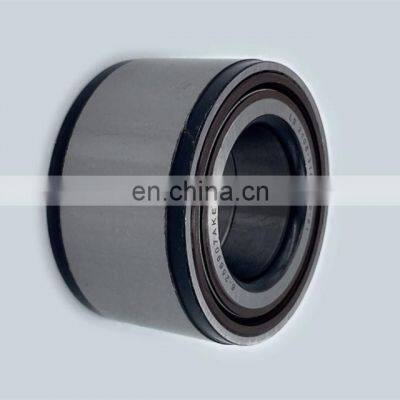

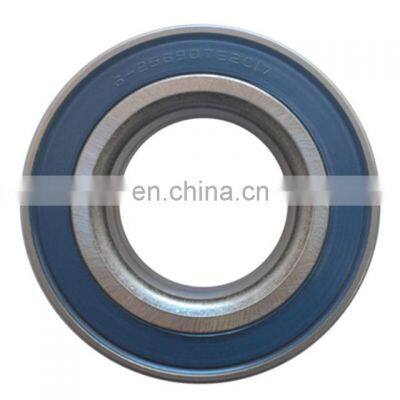

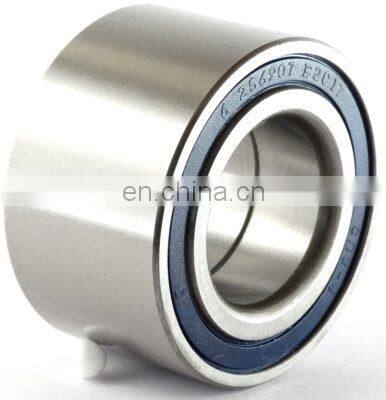

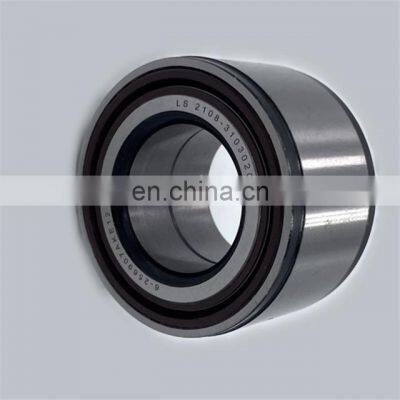

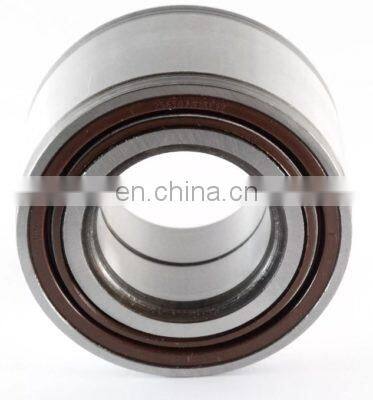

6-256907 AE7S17 Front Wheel Hubs Bearings for Car VAZ-2110 VAZ-2111 VAZ-2112 VAZ-2115
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6-256907 E 2 C 17 Passenger Car Front Wheel Hub Bearings for ZAZ-1102 ZAZ-1105NegotiableMOQ: 1 -
F-565737 54612-3R000 Front Shock Absorber Bearing Strut BearingNegotiableMOQ: 1
-
9090363014 Shock Absorber Bearings for Camry Hybrid SiennaNegotiableMOQ: 1
-
Automotive Wheel Bearings AU0930-8LXL/L588 43X80X40mm Double Row Angular Ball BearingsNegotiableMOQ: 1
-
Russian Small Car Clutch Bearing 2108-1601180 11110160118200 21080160118200 for Lada Vaz 2108/2110NegotiableMOQ: 1
Specification
Product name | 6-256907 AE7S17 Front wheel hubs bearings for Car VAZ-2110 VAZ-2111 VAZ-2112 VAZ-2115 |
Usage | wheel hub bearings |
Rotational Speed ingrease | 6000 |
Car Make | LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. | 1118-3103020 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 256907 2108 3103020 6-256907 E9C17520-2002 00 |
Warranty | 24Months |
Inner diameter | 34MM |
Outside diameter | 64MM |
Height | 37MM |
Outer cage width | 37mm |
Certificate | ISO9001/TS16949 |
Number of balls pcs | 28 |
Weight | 0.445kg |
Ball diameter | 9.52 |
Steel grade | shkh-15 |
Dynamic Load Capacity.H | 31500 |
Static Lifting capacity.H | 27900 |
256907 2108 3103020 DAC34640037 | Double-row angular contact ball bearing GOST 6-256907 |
Double-row angular contact ball bearing GOST 6-256907
Double-row angular contact ball bearing GOST 6-256907 was specially developed for operation in passenger car hub assemblies.
It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads.

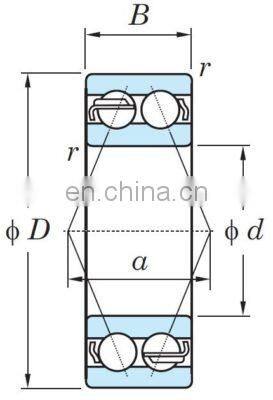

Bearing dimensions and characteristics
The main components of the ball bearing article 256907 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals.
This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.
For example 6-256907 E2C17:
6 - normal accuracy;
25 - design features (seals);
6 - angular contact ball bearing;
9 - ultralight series;
07 - code of the inner diameter (d / 5);
E2 - PCB separator;
C17 - type of grease (Litol-24).
The dimensions of bearing 256907 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside.
The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
Diameter and number of balls
The number of rolling elements in the bearing 256907 - 28 pcs. These are balls of a regular spherical shape with a diameter of 9.525 mm. They are made of special grades of steel (as a rule, ShKh-15) and heat-treated.
The separator can be steel, made by stamping from an alloy with a high carbon content (without additional designation), cast polyamide (E5), made of textolite (E1C17).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 256907 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
Wheel hub bearings
It is used in the following vehicles: LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA
VAZ 2108 - Lada / Sputnik / Samara1, VAZ 2109 - Lada / Sputnik / Samara1, VAZ 21099 - Lada / Samara1, VAZ 2113 - Lada Samara II 3dv. hatch, VAZ 2114 - Lada Samara II 5dv. hatch, VAZ 2115 - Lada Samara II sedan, VAZ 2110 - Lada 110, VAZ 2111 - Lada 111, VAZ 2112 - Lada 112
VAZ 2108-099, 2113-15
