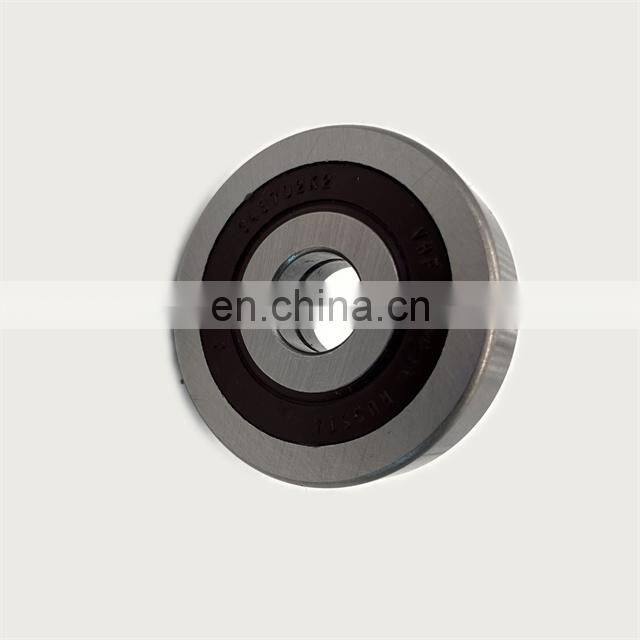

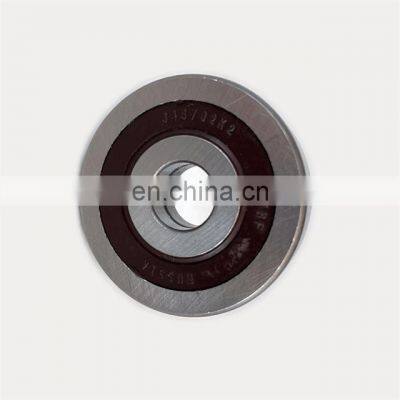

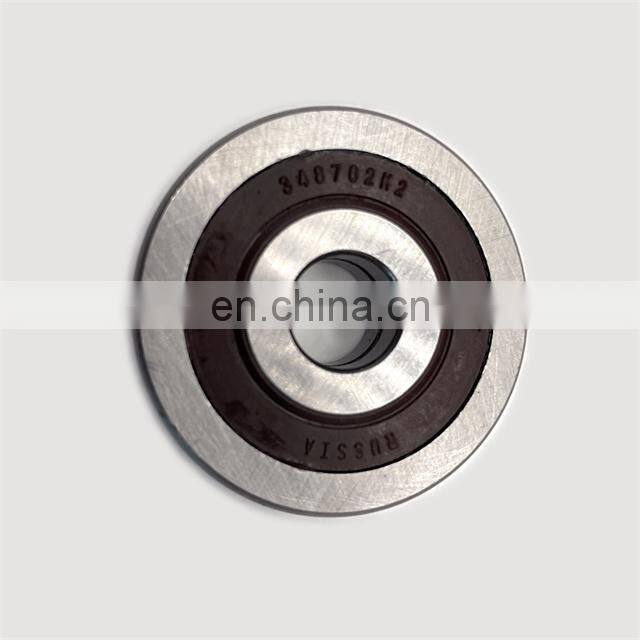

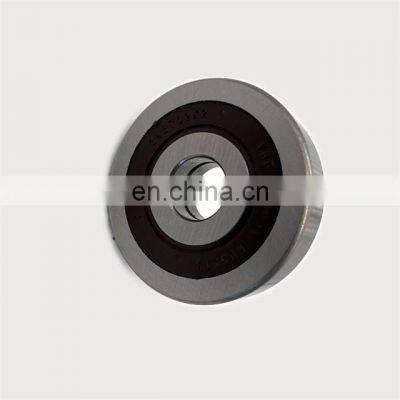

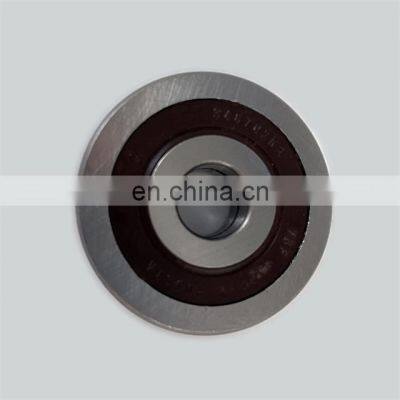

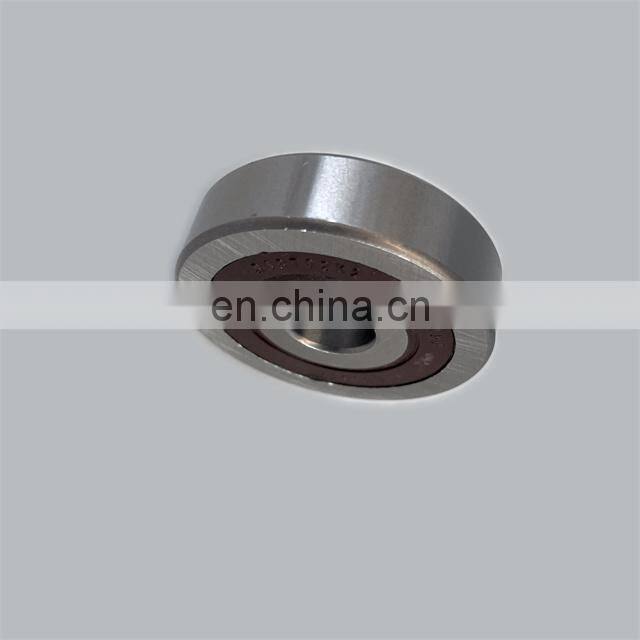

348702 2108-2902840 348702 K2 Strut Support Bearings for Russia Lada Car
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R153.14 VKBA 663 713644160 Wheel Hub Bearings KitNegotiableMOQ: 1 -
R155.87 402107049R Front Wheel Hub Bearing Repair KitNegotiableMOQ: 1
-
Pulley Tensioner 21230-1041056 Drive Belt With Cover F-233152.05 for VAZ-1117 Kalina Station WagonNegotiableMOQ: 1
-
Pulley Tensioner Bearing Generator VAZ 1118 2123-1041056-10 04792835AA 04891720AA 53013928AA 68061368AA VBF for SellingNegotiableMOQ: 1
-
Siena Palio Doblo Marea Small Car Belt Tensioner Bearing 46537101/K04891720AANegotiableMOQ: 1
Specification
Product name | 348702 2108-2902840 348702 K2 strut support bearings for Russia Lada car |
Usage | Strut bearings |
Car Make | VAZ-2108 VAZ-2109 ZAZ-1102 Car VAZ-1111 Car VAZ-2101-2109 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 348702 2108-2902840 348702 K2 |
Warranty | 24Months |
Applicability to other cars | 348702 C17 VAZ-2110 car Passenger car Front suspension (rack) 348702 C17 VAZ-2111 car Passenger car Front suspension (rack) 348702 C17 VAZ-2112 car Passenger car Front suspension (rack) 348702 C17 VAZ-2115 car Passenger car Front suspension rack, upper support |
Certificate | ISO9001/TS16949 |
Part type | strut support bearings |
Part Number | 348702 2108-2902840 348702 K2 |
Bearing 348702 size 14,5x52x14
Support bearing VAZ 348702
Its main area of application is the support bearing of the front suspension of VAZ 2108, 2109, 2110, 2111, 2112. It is ball, thrust, single, with two inner rings. It is installed in the support of the A-pillar and only accepts axial loads
The main manufacturers of this bearing are the Vologda Bearing Plant (23 GPPs or VBF), the Minsk Bearing Plant (MPZ), and the Samara plant SPZ-4. In terms of the quality of production, the first two are significantly superior to the third, but they are also much more expensive. In some bearing sales companies, you can also purchase bearings produced by the Kursk 20 GPP - these are most likely products with an expired conservation period. The approximate price of a high-quality support bearing made in Vologda is from 200 rubles when purchased directly from the plant's representative office ( contacts here ), and, for example, SPZ-4 is half the price.
The VAZ support bearing is usually supplied complete with a rubber casing, while the assembly is carried out by any company. So, the most popular products are the SS-20 brand,here, according to some sources, a completely different type is used as a bearing - 8115 .
Domestic bearings are manufactured in accordance with GOST 520-2002.
GOST 520-89
Application of bearing 348702
348702 KL20 VAZ 00 Car VAZ-2108 Car passenger front suspension strut
348702 C23 VAZ-2108 car Passenger car Front suspension (rack)
348702 C23 VAZ-2109 car Passenger car Front suspension (rack)
348702 C23 ZAZ-1102 Tavria car. Passenger car Front suspension (rack)
348702 C 23 Car VAZ-1111 OKA Stand supports
348702 C 23 Car VAZ-2101-2109 Stand supports
348702 C 23 Car VAZ-21099 Stand support
348702 C 23 ZAZ-1102 Tavria car. Car Passenger Support Rack
348702 C 23 ZAZ-1105 Tavria car. Car Passenger Support Rack
348702 KL20 VAZ 00 VAZ-2108-2109, 21099 front axle
348702 KL20 VAZ 00 Car ZAZ-1102, 1103, 1105 Tavria. Passenger car front suspension
348702 C17 VAZ-2110 car Passenger car Front suspension (rack)
348702 C17 VAZ-2111 car Passenger car Front suspension (rack)
348702 C17 VAZ-2112 car Passenger car Front suspension (rack)
348702 C17 VAZ-2115 car Passenger car Front suspension rack, upper support
348702 C17 ZAZ-1103 Tavria car. Passenger car Front suspension, strut, upper support
348702 C17 ZAZ-1105 Tavria car. Passenger car Front suspension, strut, upper support
348702 C 17 Car VAZ-2110 Stand support
348702 C 17 VAZ-2111 car
348702 C 17 Car VAZ-2112 Stand support
348702 VAZ-2121 Niva car Rack support
348702 Car GAZ Support Rack
348702 ZAZ-1102 Tavria car. Car Passenger Support Rack
348702 Car Moskvich Support pillars
Technical parameters and dimensions of the support bearing 348702
Inner diameter (d): 14.5 mm;
Outside diameter (D): 52mm;
Width (H): 14mm;
Weight: 0.05 kg;
Ball diameter: 5.556mm;
Number of balls: 19 pcs;
Dynamic loading capacity: 12 kN;
Static lifting capacity: 25.4 kN;
Rated speed: 15000 rpm
