STM32H750IBK6 Single Chip Microcomputer (MCU/MPU/SOC) ST Original Stock

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ST	Place of Origin	Albania
Model Number	STM32H750IBK6	Type	Drive IC
Package	2016	D/C	1008

Product Description

Description

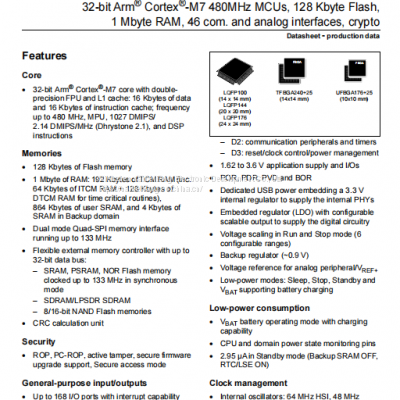

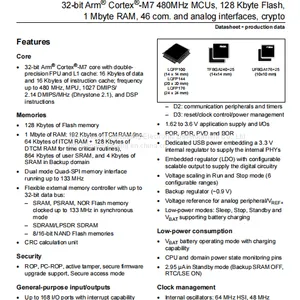

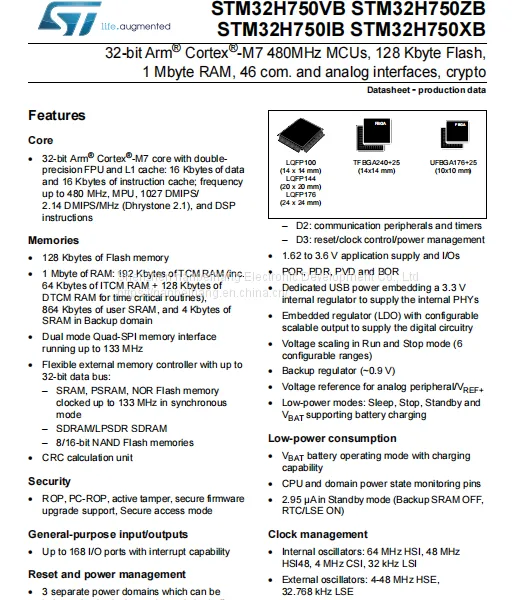

STM32H750xB devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC

core operating at up to 480 MHz. The Cortex® -M7 core features a floating point unit (FPU)

which supports Arm® double-precision (IEEE 754 compliant) and single-precision data

processing instructions and data types. STM32H750xB devices support a full set of DSP

instructions and a memory protection unit (MPU) to enhance application security.

STM32H750xB devices incorporate high-speed embedded memories with a Flash memory

of 128 Kbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes

of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced

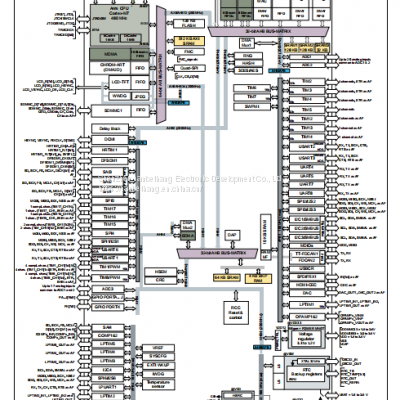

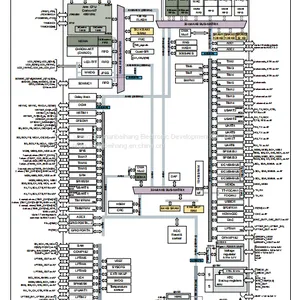

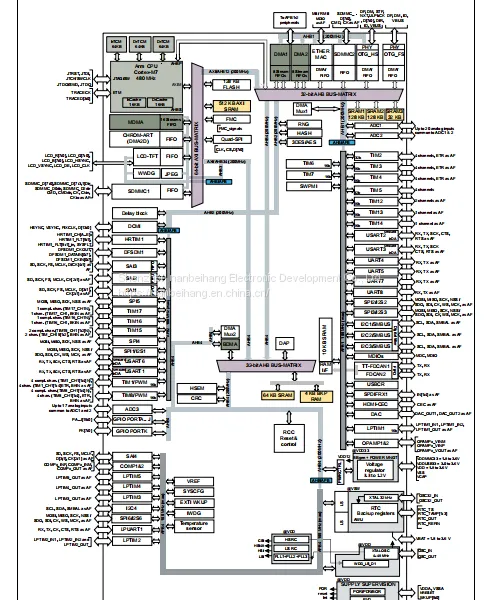

I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix

and a multi layer AXI interconnect supporting internal and external memory access.

All the devices offer three ADCs, two DACs, two ultra-low power comparators, a low-power

RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor

control, five low-power timers, a true random number generator (RNG), and a cryptographic

acceleration cell. The devices support four digital filters for external sigma-delta modulators

(DFSDM). They also feature standard and advanced communication interfaces.



Standard peripherals

– Four I2Cs

– Four USARTs, four UARTs and one LPUART

– Six SPIs, three I2Ss in Half-duplex mode. To achieve audio class accuracy, the

I2S peripherals can be clocked by a dedicated internal audio PLL or by an external

clock to allow synchronization.

– Four SAI serial audio interfaces

– One SPDIFRX interface

– One SWPMI (Single Wire Protocol Master Interface)

– Management Data Input/Output (MDIO) slaves

– Two SDMMC interfaces

– A USB OTG full-speed and a USB OTG high-speed interface with full-speed

capability (with the ULPI)

– One FDCAN plus one TT-FDCAN interface

– An Ethernet interface

– Chrom-ART Accelerator

– HDMI-CEC



Advanced peripherals including

– A flexible memory control (FMC) interface

– A Quad-SPI Flash memory interface

– A camera interface for CMOS sensors

– An LCD-TFT display controller

– A JPEG hardware compressor/decompressor

STM32H750xB devices operate in the –40 to +85 °C temperature range from a 1.62 to

3.6 V power supply. The supply voltage can drop down to 1.62 V by using an external power

supervisor (see Section 3.5.2: Power supply supervisor) and connecting the PDR_ON pin to

VSS. Otherwise the supply voltage must stay above 1.71 V with the embedded power

voltage detector enabled.

Dedicated supply inputs for USB (OTG_FS and OTG_HS) are available on all packages

except LQFP100 to allow a greater power supply choice.

A comprehensive set of power-saving modes allows the design of low-power applications.

STM32H750xB devices are offered in 3 packages ranging from 100 pins to 240 pins/balls.

The set of included peripherals changes with the device chosen.

These features make STM32H750xB microcontrollers suitable for a wide range of

applications:



Motor drive and application control



Medical equipment



Industrial applications: PLC, inverters, circuit breakers



Printers, and scanners



Alarm systems, video intercom, and HVAC



Home audio appliances



Mobile applications, Internet of Things



Wearable devices: smart watches
