500kg 1000kg/1200kg/1500kg/2000kg/3000kg 1 Ton PP Woven Jumbo Bag FIBC Supplier Customized Water Resistant Coated & for Industrial with Factory Price

U-Panel bulk bags (FIBC) have one (1) continuous piece of fabric for a side, bottom, and opposite side panel creating a “U” shape. The remaining sides and top panel are then sewn in to construct the bag.  U-Panel bags are an industry standard and provide a great mix of stack-ability, strength, and affordability.Baffle bag gives improved stability and improved loading efficiency of containers and trucks.

Q- Bag as remain within its pallet dimensions when it filled. The unique design of the baffles in the bag construction prevents the bag from bulging or falling over.

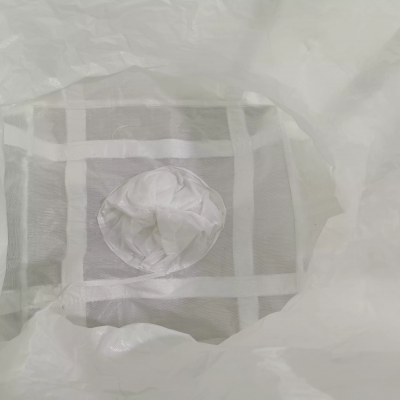

Our design incorporates baffles across all four corners of the bag, within these baffles are holes cut out which allow the product to flow evenly throughout the bag. Rather than the baffles being glued into the bag we sew them into the side-panels of the FIBC with filler cord. This then makes the FIBC sift proof and capable of storing very fine powders without leaks when being stacked or transported.

Coated or Uncoated fabric  Have a safety factor of either  5:1 (single trip) or 6:1 (multi trip)

Be UN-approved with a safety factor of 6:1  Be printed in multicolour on four sides

Variety of document pouches and labels  Dust proof  Various inlet and outlet closures  THERE ARE ALSO SOME ADDITIONAL FEATURES AVAILABLE DEPENDING ON , FILLING AND DISCHARGE SYSTEM.

Skirt or Duffle Top  Inlet filling Spout  Discharge Spout  Conical Discharge Spout  PE Baffle liner

These Bags are specially designed to store food items like potatoes, onions etc. The ventilated fabric permits the required air flow through the fabric into the bag, thus preventing spoilage due to moisture and mold build-up. Usage of FIBC Ventillated Bags have eased the common supply chain issues of handling, storing and transporting food items, commonly witnessed with the 25/50 kg woven sack bags.FIBC  are one of the leading manufacturers and supply of wide range of  food grade FIBC bags with international standards clean room facility, most advance machinery, advance equipped quality control laboratory, highly experienced and expertise staff, and approved superior food grade polymers and other additive materials.FIBC are BRC certified company and are free from dust, germs and pollutants as 5% statistical quality control inspection after palletizing the bags. We ensure that vacuum cleaning and pallet shrink wrapping for all the food grade bags.With our expertise to make highest quality food grade FIBC bags, the effective hygiene policy followed by us, allow us to successfully fulfill the requirements of customers.Loose, Glued, Tabbed, Stitched Liners, EVOH Liner, Baffle Liner, Aluminum, Foil liner, Conductive, Antistatic liner

40 to 250 micron  Various protective properties  The liner can be fitted into the FIBC in various ways (stitched, glued, etc.)Available in various colours  Conductive, form-stable and also available pre-formed  Class 10,000 liner manufacturing possible in house.Bulk bag are also known as Flexible Intermediate Bulk Container (FIBC) or jumbo bag, is economical and ideal packing used for the storage & transportation of powdered, granulated or bulk products.

FIBC bags are manufactured by polypropylene woven fabrics that are stabilized against UV degradation. Each bulk bag can contain load capacities between 500kgs to 2000kgs with safety of 5:1 or 6:1 (5:1 is for Single use & 6:1 is for multiple use or for UN bags), depending on the bag design and size. Optional LDPE inner liner can be included to provide additional protection against moisture ingress.These FIBC antistatic type D bags FIBC are designed to guarantee the protection against the unforeseen electrostatic hazards as the risks related to human errors are eliminated with the manufacturing and use of grounded Type C FIBC. Permanent discharged properties and is designed to prevent the occurrence of flammable sparks, brush discharges and propagating brush discharges without connecting the bulk bag to ground or earth.The standard FIBC bag is the 4-Panel big bag, or the corner loop big bag. This standard big bag with (standard) open top, closed bottom and four lifting loops, is very suitable for transporting and storing various types of light and finer raw materials, waste materials and building materials such as ornamental gravel, split, garden waste, firewood and wood pellets. Because of the four corner loop lifting loops, stitched at the side seams, the big bag is easy to lift.

Four (4) panel bulk bags (FIBC) have seams along four separate pieces of fabric that are sewn together to construct the body of the bag as well as having the top and bottom panels sewn in. Four panel bags tend to hold their shape better than other types of bags and are better suited for stacking.

FIBCs (big bags/bulk bags) with a conical base are specially developed for poorly flowing products. The conical shape at the bottom of the bag ensures that the bulk bag can be discharged quickly and easily. By using this bulk bags, you can sometimes prevent expensive adjustments to discharging systems.

Pharma Grade FIBC Bags are exclusively designed for pharmaceutical products so that the products are in very good condition and are free from unwanted contamination. Food Grade FIBC Bags are made with the objective of putting food grade raw material into bags.

Relevant authorities approve the raw materials and fabrics used in the production of Pharma Grade Bags. We ensure that metal detection and cleaning process is applied, to prevent the bags from dust, germs and pollutants. Individual inspection of the bags on the light table is always performed. We make sure that loose threads and tapes are prevented.
