1000kg 1500kg Factory Wholesale FIBC Mesh Firewood Potato Onion Big Bulk Ventilated Jumbo Large Vented Bag
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Conductive Type C Type B FIBC Big Bulk Bags 1ton Super Sack
-
PP Baffle Big Jumbo Bags With Partitions for Sugar Flour Starch
-
PP Woven Jumbo Breathable Bag 1000kg for Firewood, Vegetables, and Fruits
-
Rubbish Large PP Soft Container Tonne Plastic Skip Dumpster Big Bag UV Protection Jumbo Bulk Super Sacks
-
Garden Rubbish Skip Dumpster Bag FIBC Wooden Soft Cotnainer Jumbo Bulks Super Sacks Anti-UV 1 Ton
-
PE Liner Beige Big Baffle Flexible FIBC Jumbo Bag

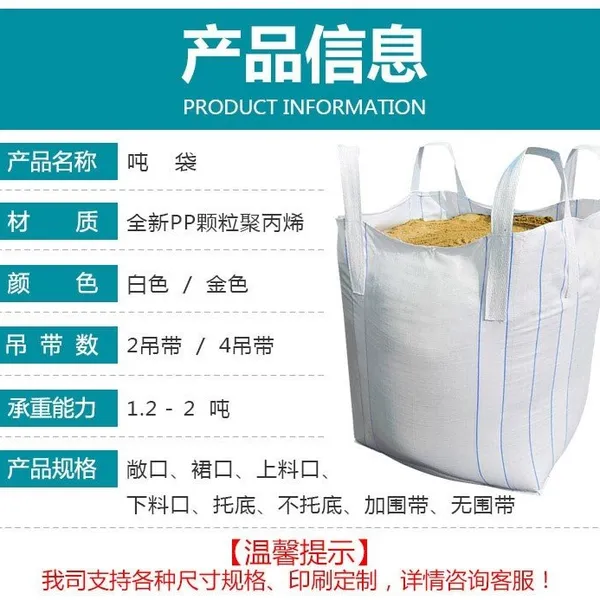

Product Details
| Brand Name | Plastic paper block bottom valve bag AD*STARKON | Place of Origin | China | |
| Model Number | 100% original polypropylene FIBC JUMBO BAG | Material | Plastic | |
| Plastic Type | PP | Feature | Moisture Proof | |
| Surface Handling | Flexo Printing | Industrial Use | Cement | |
| Custom Order | Accept | Sealing & Handle | Drawstring | |
| Bag Type | Side Gusset Bag |
Product Description
We provide different ventilation big bag options depending on the application for different products:
1. With 4-side ventilated PP woven fabric
This type of ventilated bag using 26 strip ventilated Polypropylene woven fabric with advantage at competitive Price
2. With 2-side ventilated fabric and 2-side Net fabric
This type bag normally build with a U-panel ventilated woven fabric and 2-side mosquito fabric. It will be much more ventilation by using mosquito-fabric. And by adding 2 bottom lifting loops, it Will be more convenient to lift up and discharge the products from top and can be reusable.
3. With 4-side Net fabric
This type of vented big bag constructed with 4 side mosquito fabric by which provide the best ventilation for using. For this bag, it normally without discharge spout but with 2 bottom lifting loops, which can be empty the bag from the top of bag.

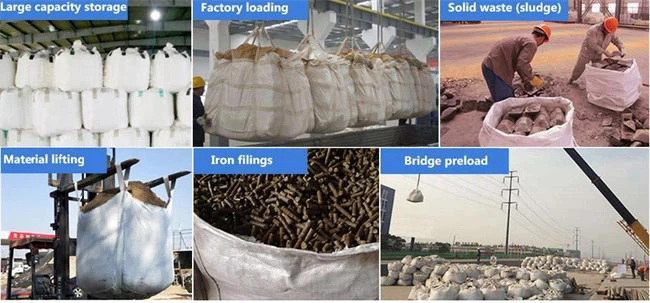

The global mining volume and storage volume of minerals are very large, and millions of mineral big bags are used for the transportation, storage and turnover of various ores and mineral powders are very convenient.
The big bag for packing minerals are with Low cost, easy to load and unload, and will not pollute the environment. These bags are widely used and will last for a long time as haven't found a replacable packaging solution yet.

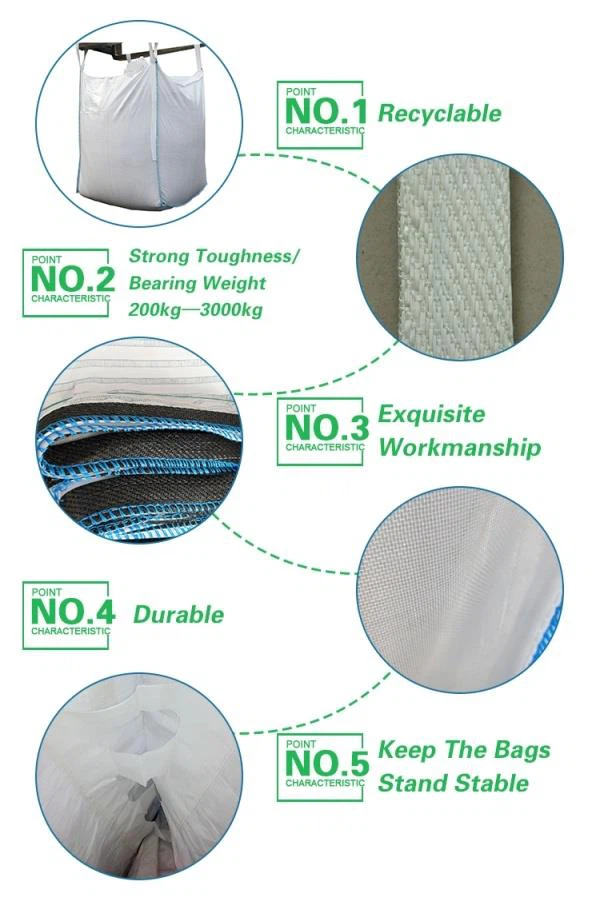

Product feature
A mineral industry in need of bulk bags should consider the following features before deciding on the usage:
Dimension: | Dia115xHeight120cm | Model item | Tubular, U-panel, 4-panel, Baffle |
Material: | 100% Virgin PP material | Color: | White, Beige, Black, Green, Blue etc. |
Feature: | Recyclable | Lamination: | 1 or 2 side lamination or BOPP lamination |
Top Option: | Filling spout | Inner liner： | Available |
Bottom Option: | Flat or Discharge spout | Usage: | Minerals of ore or mineral powder |
Fabric weight: | 60g/㎡- 250g/㎡ | Sewing: | Normal stitches |
Loop Option: | Fully bottom loops | Packing： | On bales or Pallets as customer’s require |
Safety Loading: | 500kgs - 3000kgs | Safety factor: | 3:1, 5:1, 6:1 |
The general loading weight range of big bag for packing minerals is 1000-3000kgs, and some customers even require 4000kgs loading capacity. Therefore, the following specifications need to be considered when designing the bag:
1.Use of body fabric: The weight of body fabric is no less than 180gsm, and it is recommended to be coated.
The thickness of the fabric after coating is increased, which can reduce the friction between the ore and the bag to a certain extent.
The cloth of the bag body is a tubular shape, so that the bag body will not be stitched together to avoid powder leakage in the bag body.

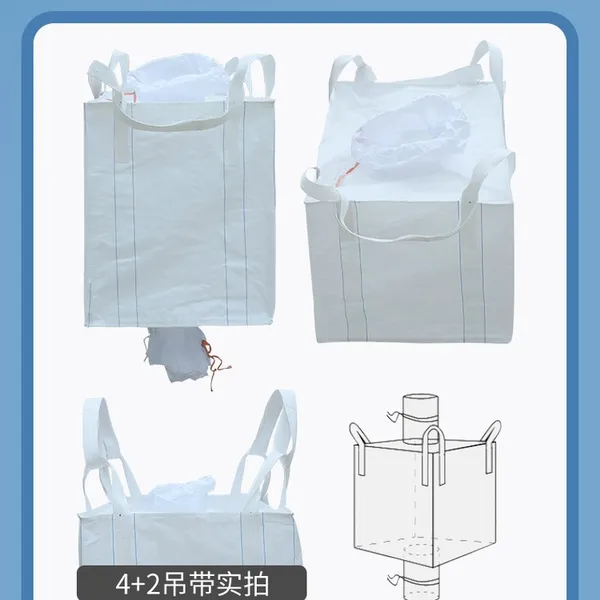

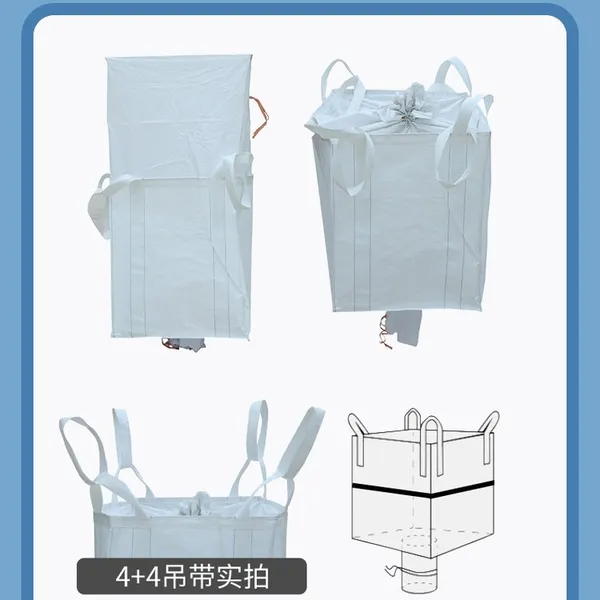

2.Sling or lifting straps sewing method:
1.Fully bottom lifting straps,2 lifting with cross fully bottom loops
3 slings with fully bottom lifting loops，4 cross-corner fully bottom lifting loops.
As long as the loading capacity of this kind of bottom sling is on the sling, it is much stronger than the simple base fabric.
3.Sewing method: The sewing method of the bag body and the bottom of the bag needs to be fixed once, and then double-foulded sewing twice.
The bottom design is better to be flat instead of a discharge spout, so the design safety factor will be higher.
4.Bag type design: The bag type can be designed according to the specific requirements of customers.The bag body uses tube cloth, and the bag type can be designed to be round or square.If the bottom of the bag is round, it is a round bag, and if the bottom is square, it is a square bag.This kind of bag with tube cloth design can effectively control the deformation of the bag body after the bag is filled with products.It is also very convenient to transport by ordinary truck or container.Wide usage for loading different kinds of Minerals ore and our main clients business range as following:
Quartzs in Sri lanka and Vietnam Gloden ores in South Africa and Russia
Metal minerals in Australia Lead-zinc ore in Mongolia and Tajikistan
Copper ore in Chile and Kazakhstan

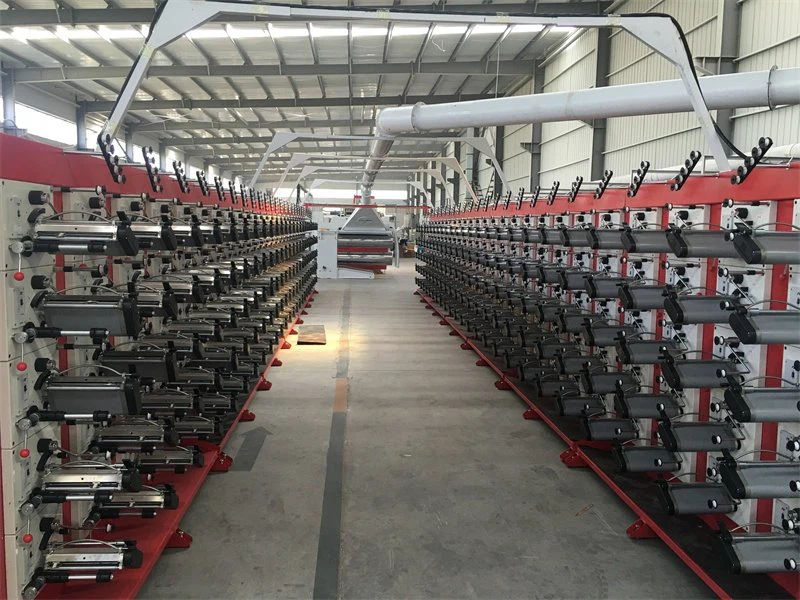

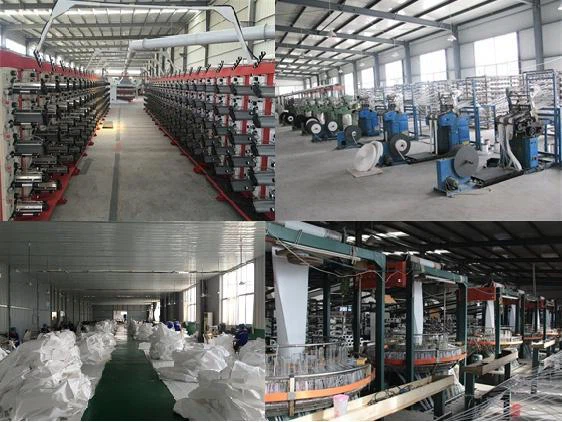

Why choose us as your packing suppliers?Services
We have over 20 years of experience in the mining and mineral processing industries.
Our technical teams have visited over 80 countries to ensure our clients have the suitable bag design through a detailed construction environment.
QualitySince the start of our company, we have designed thousands of custom jumbo bags for carring million tons of minerals concertrates around the world.
Our mission is to design you a better, a more efficient and more suitable packaging solutions—not just a cheaper one.
CommitmentWe understand how important a secure and steady supply of big bag for packing minerals is to your process of mining operation.Our NO 1 aim is to keep your industry supplied with dependable products that can effectively carry, store and transport your materials, so your focus stays on the safety.Contact us today to start your journey on the path to better and suitable bags for your mining operation!
Features
Product SpecificationCONTACT US:
Mr.Daniel
Mobile Phone:+86-13802155833
WeChat:+86-13802155833
WhatsApp:+86-13802155833
E-mail: tjwoking@163.com
Dimension: | 35’’x35’’x44’’ | Model item | Tubular, U-panel, 4-panel, Baffle |
Material: | Virgin PP material | Color: | White, Beige, Black, Green, Blue etc. |
Feature: | Recyclable | Lamination: | 1 or 2 side lamination or BOPP lamination |
Top Option: | Duffle skirt, filling spout | Inner liner： | Tubular or Form fit liner or EOVA liner |
Bottom Option: | Flat, Discharge spout | Usage: | Fertilizer, Industrial use or Construction |
Fabric weight: | 60g/㎡- 250g/㎡ | Sewing: | Normal or lock stitch or Chain stitch |
Loop Option: | Cross corner, side seam or fully bottom | Packing： | On bales or Pallets as customer's require |
Safety Loading: | 500kgs - 3000kgs | Safety factor: | 3:1, 5:1, 6:1 |
Product feature and Application
1 ton big bag also belongs to big bag, Normally it should be considered the following features before using the bag:
● Lifting Options: Cross corner, Side seam, Fully bottom lifting loops

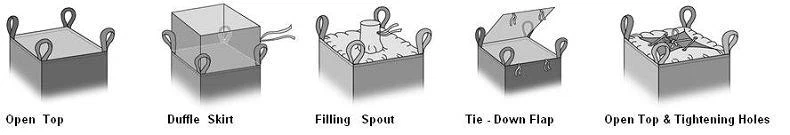

● Filling Options: Duffle skirt, Filling spout, Top fully open
● Discharge Options: Flat bottom, Discharge spout

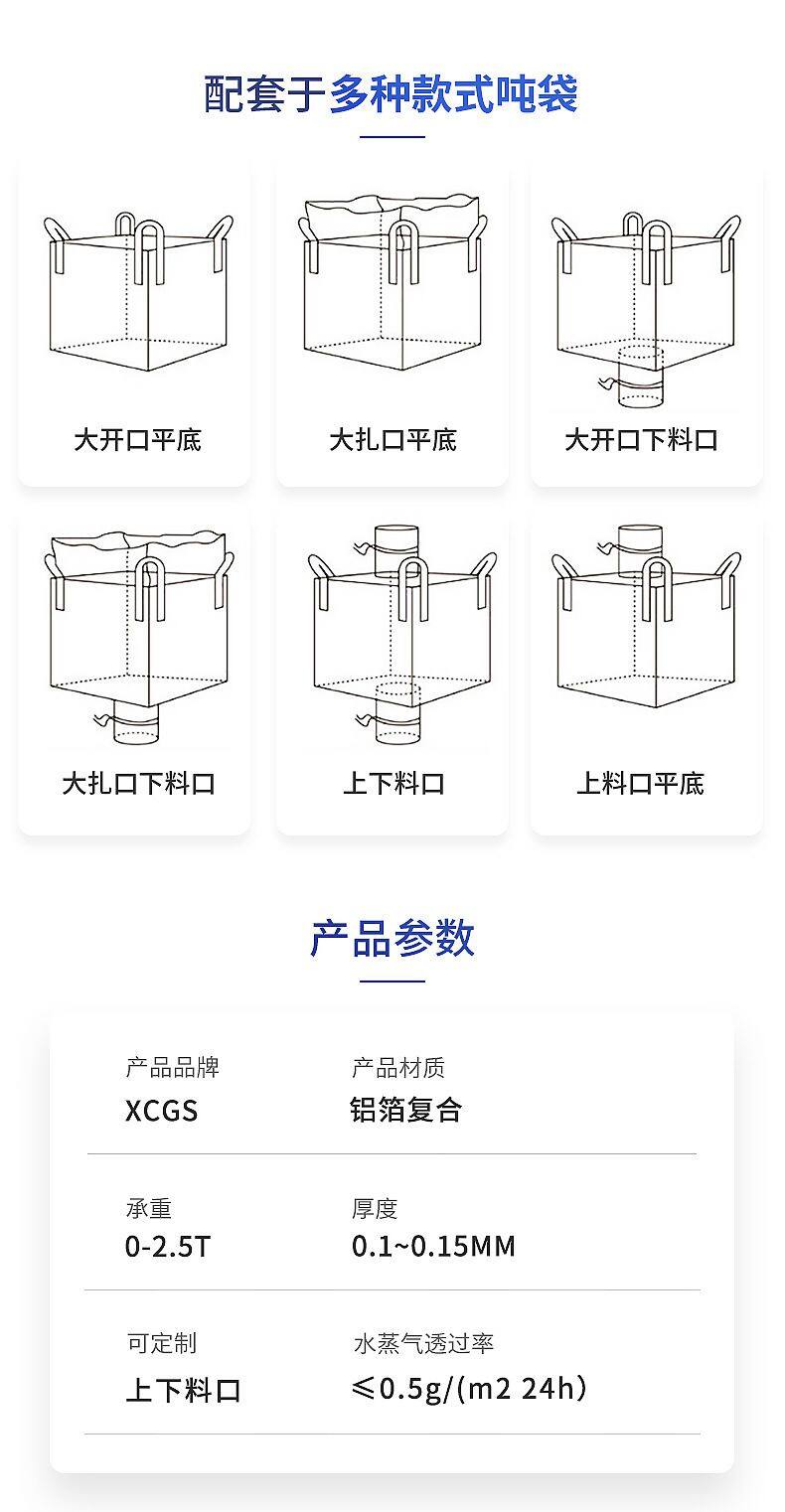

● Construction Type: U Panel, 4 Panel, Circular (Tubular shape) panel, Baffle etc.

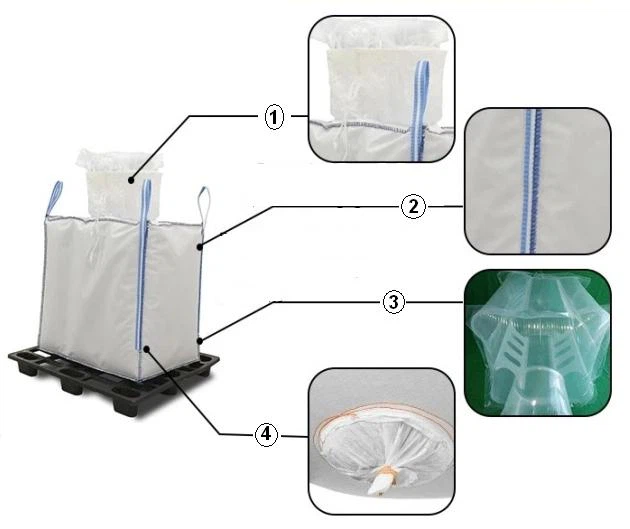

● Liners: Form Fitted Liner, Tube Liner, Baffle Liner or Other liners.
● Sewing Options (Sift Resistance Construction):
Standard, Single Dust proof Stitch, Double Dust proof Stitch, Triple Dust proof Stitch (With Felt), Over-lock Stitch with Safety Stitch and other according to clients' require.
