Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jianzhi
Place of Origin:
China
Type:
Elbow
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
45 Degree Black Iron Elbow Fitting Fig. 120 Hot SaleNegotiableMOQ: 200 Pieces -
GI Reducer Pipe Fitting Socket Fig. 529A Hot SaleNegotiableMOQ: 200 Pieces
-
Pipe Connector Lateral Y Branch Tee 45 Degree Fig.165 Hot SaleNegotiableMOQ: 200 Pieces
-
Female Bend 90 Degree Fig.2NegotiableMOQ: 200 Pieces
-
Galvanised Pipe and Fittings Union Nut Fig. 374NegotiableMOQ: 200 Pieces
Brand Name
Jianzhi
Place of Origin
China
Type
Elbow
Shape
Other
Technics
Casting
Head Code
Other

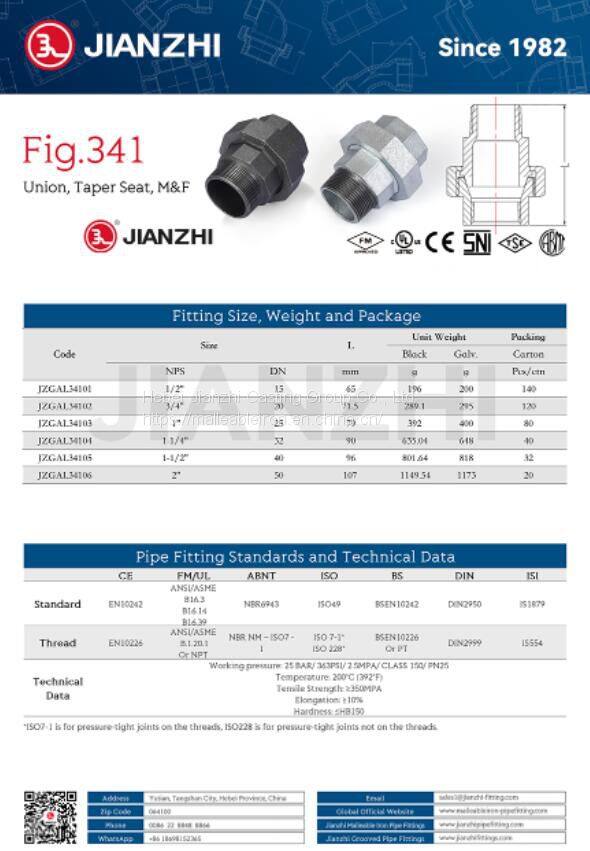

Industrial Pipe Fittings Union Taper Seat Fig. 341
union pipe fitting
Size: 1/8''-6''(DN6-DN150)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 36Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
PRODUCT DESCRIPTION
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 21%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
PRODUCT DIMENSIONS
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
1982
Port of Shipment
Tianjin
Main Markets
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
