4 Way Pipe Fitting Equal Cross Fig.180 Hot Sale

4 Way Pipe Fitting Equal Cross Fig.180

Size: 1/2''-4''(DN8-DN100)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

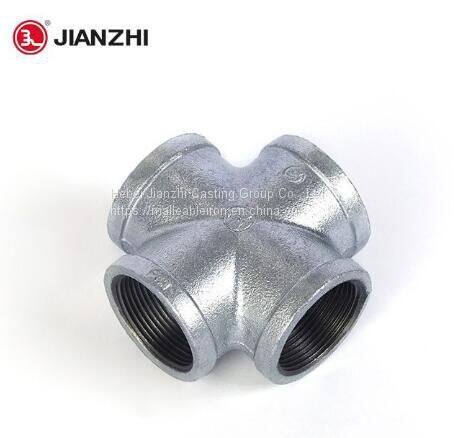

4 Way Galvanized Pipe Fitting Cross

The appearance of the four-way pipe is a cross, so we usually call the four-way pipe "cross". It generally has two functions: one is to control the flow direction, which can distribute the fluid in one direction to the other three directions, and the second is to combine the fluid from different directions into one direction.

The 4 way galvanized pipe connector are made of malleable cast iron, which is more cost-effective than other four-way pipe fittings in the same industry. Good performance in transporting fluids, gases, or corrosive liquids.

The four-way pipe fittings crpss are hot-dip galvanized. The zinc is evenly plated on the surface of the pipe fittings. The zinc layer is uniform, and the thickness meets the requirements of the European Union. The thickness of the zinc layer is satisfactory no matter from the inside or outside.
