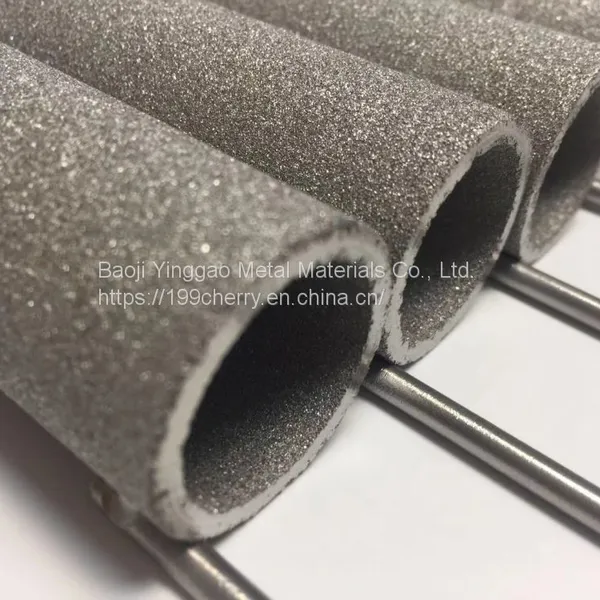

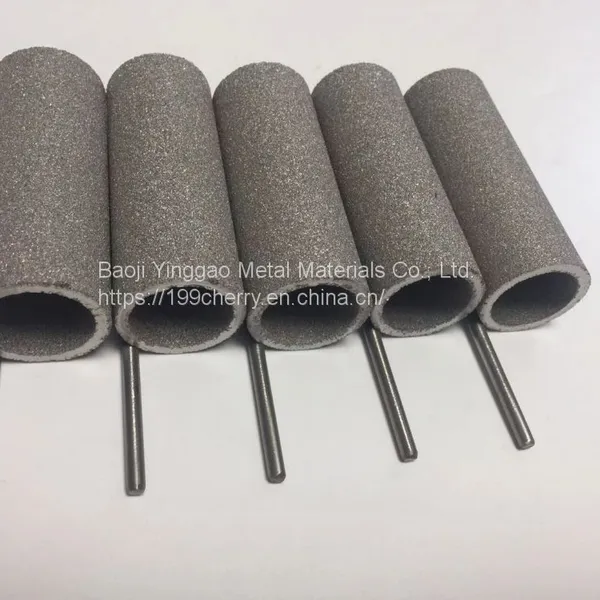

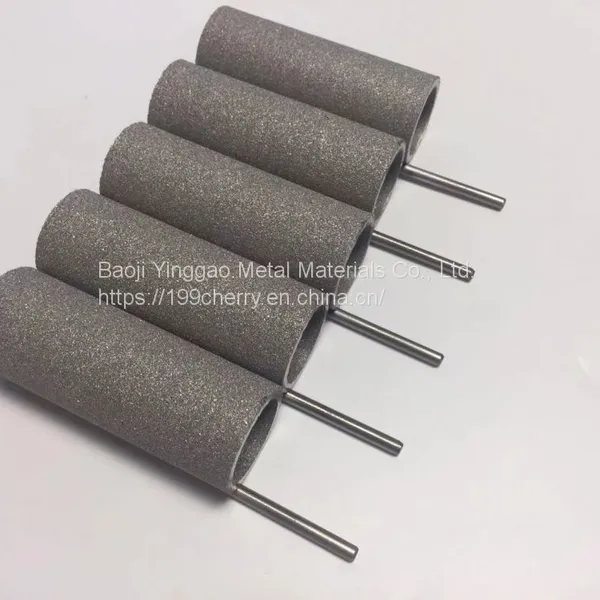

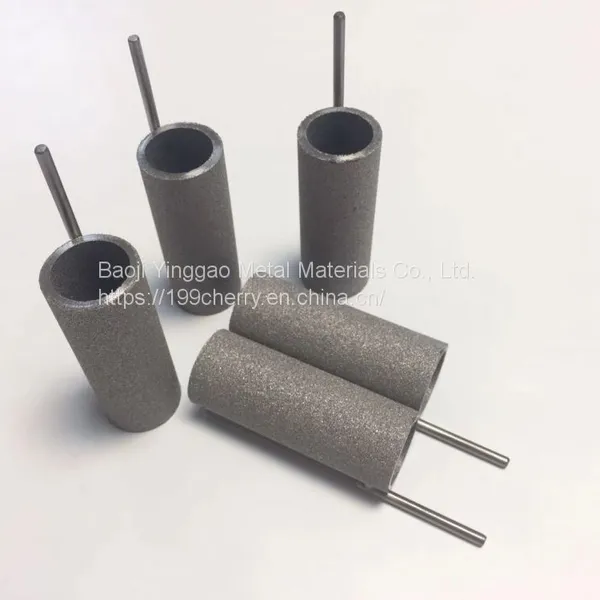

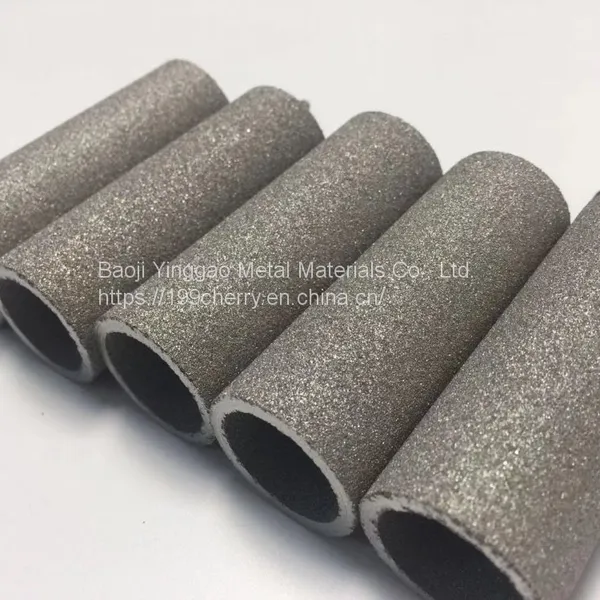

Help CenterCustomized Cylinder Titanium Filter Tube Cartridge
Related Products
Customized cylinder titanium filter tube is a new type of high-efficiency porous filter material made of metal titanium powder as the raw material through powder sieving, cold isostatic pressing molding, sintering, mechanical welding processing, etc., because its pores and filtration accuracy can be carried out in a wide range Adjustment is widely used in the fields of self-lubrication, filtration, separation, catalysis, flame extinguishing, heat exchange, thermal electron generation, and gas distribution.
Brand: TopTiTech
Origin: Baoji, China
Material: Titanium
Main purpose: used for gas and liquid filtration and gas distribution.
Filtration accuracy: 0.2-50μm
Diameter: 30-80mm
Length: 100-1000mm (special specifications can be customized)
Filtration principle: Customized cylinder titanium filter tube is a porous titanium metal filter material made by powder metallurgy. Its internal pores are curved and crisscrossed. The pore size distribution is uniform. The filtration mechanism is typical of deep filtration.
Performance:
This product has excellent properties such as corrosion resistance, high-temperature resistance, high strength, easy filter accuracy, and easy regeneration;
the titanium filter is formed by titanium powder formed and sintered at high temperature, so the surface particles are not easy to fall off;
in the air the use temperature can reach 500-600℃;
it is suitable for the filtration of various corrosive media, such as hydrochloric acid, sulfuric acid, hydroxide, seawater, aqua regia, and iron, copper, sodium, and other chloride solutions;
It has excellent mechanical properties, and can be cut, welded, and another machining;
high compressive strength, internal pressure damage strength up to 2MPa or more; 7. its filtration accuracy is easy to ensure, even if it works under high temperature and pressure, the pore size will not be deformed;
the porosity is up to 35-45, the pore size distribution is uniform, the dirt holding capacity is large;
the regeneration method is simple and can be reused after regeneration.
Application
Liquids or gases filtration in high temperature and pressure;
Filtration of liquids or gases containing ozone;
Prefiltration and decarbonization in pharmaceutics industry, as a small injection, oral, etc ;
Highly corrosive liquid and gas purification.
