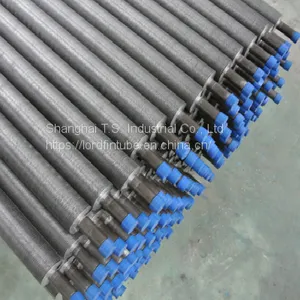

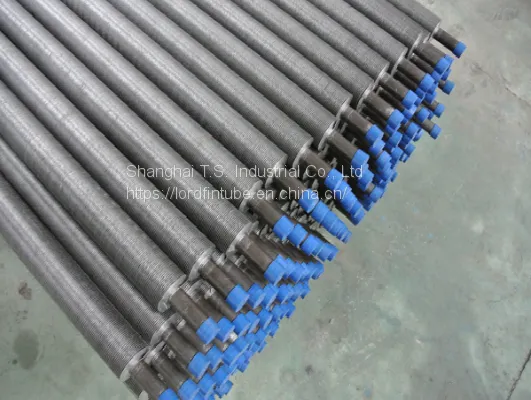

Help CenterG Type Fin Tube | Embedded Finned Tube
Related Products
-
S Type Fin Tube | Square Finned TubeUS$ 50 - 3000MOQ: 100 Pieces -
Embedded Finned Tube | G Type Fin TubesUS$ 50 - 3000MOQ: 100 Pieces
-
WOS Type Fin Tube | Welded On Serrated Finned TubeUS$ 50 - 3000MOQ: 100 Pieces
-
LFW Type Fin Tube | Longitudinal Finned TubeUS$ 50 - 3000MOQ: 100 Pieces
-
HY Type Fin Tube | Extruded Finned TubeUS$ 50 - 3000MOQ: 100 Pieces
The fin strip is wound into a mechanically produced groove and tightened by backfilling the base material under pressure. Groove depth appr. 0,4 mm.
Advantages: High fin stability, excellent heat transfer, and high operating temperature.
Material Combinations:
G Fin Tube Core Tube: Carbon steels, low-alloy steels, stainless steels, brass, copper, copper-nickel alloys, aluminum bronze, nickel-alloys (Alloy 400, etc.), bimetal, titanium, and others
G Fin Tube Fins: Aluminium / Copper / Steel / Galvanized Steel
Fields of Application:
• petroleum, chemical, and petrochemical industries
• natural gas treatment
• steel industry: blast furnace and converter systems
• power generation: steam turbine exhaust condensing
– contact condensing with cooling of circulating condensate
– fossil and nuclear power plants
• air conditioning (freon, ammonia, propane)
• incineration of household refuse
• compressor coolers, etc.
Manufacturing Process:
The manufacturing tool is made up of 2 non-cutting plates set at 90° to the axis of the base tube. The first plate affects a groove for metal spinning. The second directs the ribbon in the groove and sets the fin foot in the groove through pressure on the metal displaced for the groove. A similar plate made of tungsten carburetor allows us to manufacture G-finned tubes with base tubes made of austenitic steel or exotic alloys.
Advantages:
1) G Fin Tube Thermal
The fin/tube wall contact is constant because of the setting and makes it possible to use a wall temperature of up to 400° C.
2) G Fin Tube Mechanical
The fin is set throughout its length and consequently does not unwind even when partially uprooted.
In order to forward you a prompt offer we would be pleased to receive your detailed inquiry containing:
• Base tube material and quantity
• Base tube size
• Fin material
• Fin type
• Fin diameter or height
• Fin thickness
• Fins per inch, meter, or fin pitch
• Lenght of plain, unfinned ends
(necessary to roll or weld the tubes into tubeplate or assembly)
