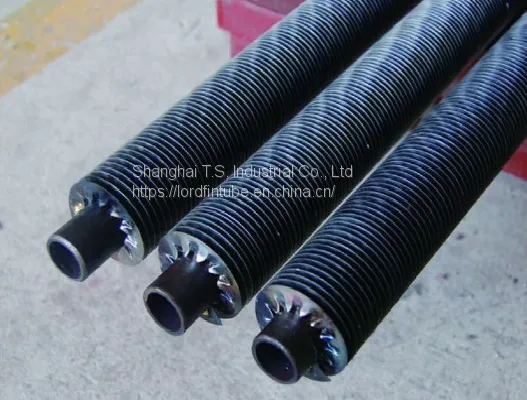

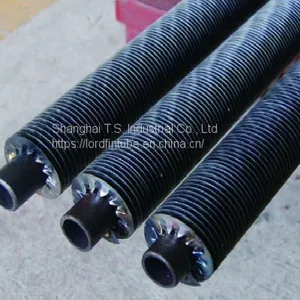

Help CenterI Type Fin Tube | Tension Wound Finned Tube
Related Products
-
Laser Welding Finned Tube | Laser Welded Stainless Fin TubeUS$ 50 - 3000MOQ: 100 Pieces -
L, LL, KL Type Fin Tube | DL Fin TubeUS$ 50 - 3000MOQ: 100 Pieces
-
G Type Fin Tube | Embedded Finned TubeUS$ 50 - 3000MOQ: 100 Pieces
-
S Type Fin Tube | Square Finned TubeUS$ 50 - 3000MOQ: 100 Pieces
-
Embedded Finned Tube | G Type Fin TubesUS$ 50 - 3000MOQ: 100 Pieces
The fin strip is tension wound onto the base tube. Typical fin materials: carbon steel, stainless steel, copper, brass, and copper-nickel.
Size Range:
- Base tube size: 6-219.1 (other sizes upon request)
- Fins: 50-500 fins/meter
- Fin thickness: 0.2-1.5 mm
- Fin quantity and size depend on the diameter of the base tube. In case of deviation against the sizes of the opposite page, please ask us.
- Tolerances: Fin height: +/- 1mm
- Fins/meter: +/- 2%
- Plain ends: +/- 5mm
Fields of Application:
Climatic Industry, Cooling, Heating, Drying
Manufacturing Process
Fins are spirally wound on a base tube, without welding, just fin spot welded. Non-ferrous tubes and fins on either
root soldered or completely tinned
Execution: black, galvanized, and for special applications
Stainless Steel, Copper, Brass, and/or Aluminium.
Ends can be beveled or bent upon request.
In order to forward you a prompt offer we would be pleased to receive your detailed inquiry containing:
• Base tube material and quantity
• Base tube size
• Fin material
• Fin type
• Fin diameter or height
• Fin thickness
• Fins per inch, meter, or fin pitch
• Lenght of plain, unfinned ends
(necessary to roll or weld the tubes into tubeplate or assembly)
