Multifunction Small Biomass Gasifier

Introduction:

Due to the rapid increase in the need of energy source, more people start to become interested in biomass recycling business. Biomass gasification generator is renewable, Eco-friendly energy especially for agricultural countries.

Biomass gasification generator investment is a best project to generate revenue from agro-forestry waste and to produce Green Energy to protect the global environment. The awareness of using Eco-friendly & Non-conventional Bio-coal / Bio-fuel is increasing day-to-day due to the increasing of the conventional fuel cost.

Raw Material:

Any type of Agro-Forestry waste can be used.
Groundnut-shell, Sugarcane residue, Caster Shells/Stalk, Saw dust, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco waste, Mustard Stalk, Jute waste, Bamboo Dust, Tea waste, Wheat Straw, Palm husk, Soybeans husk, Rice Husks, Forestry wastes, Waste paper, Cardboard, Wood Chips and many other Agro wastes.

Features:

1. New design, advanced technology, scientific and compact structure, high efficiency, simple

 operation.

2. Only 2 minutes to generate gas. And it takes 8-12 minutes to boil 4.5kgs water same as the natural gas.

3. Feeding raw material, generating gas, using gas can realize simultaneously.

4. Good cleaning device to control the tar content, ash content, water content and guarantee the

 gas clean and good.

5. The occupy area is not over 1 square meter. Gasifying efficiency can get to 70%. The heat

value of gas is 4600-5200KJ/m3.

6. And we can design the suitable power according to customer’s electricity situation.

Technical parameters :

Working Principle:

The principle of gasifying process: biological materials enter reactor, and undergo heat drying. As the temperature increases, the volatile is separated out and split. After splitting, the gas and carbon meet supplied air in the oxidation area and combustion takes place. The combustion results in CO and vapor. The heat from combustion is utilized to maintain dryness, splitting reaction and endothermic reaction of the underneath reversion area. The gas resulted from the combustion goes through the reversion area and reacts with carbon layer (C+CO2 =2CO, C+HO2 =H2 +CO), which produces burnable gas consisting of CO, H2, CH4, CmHn.

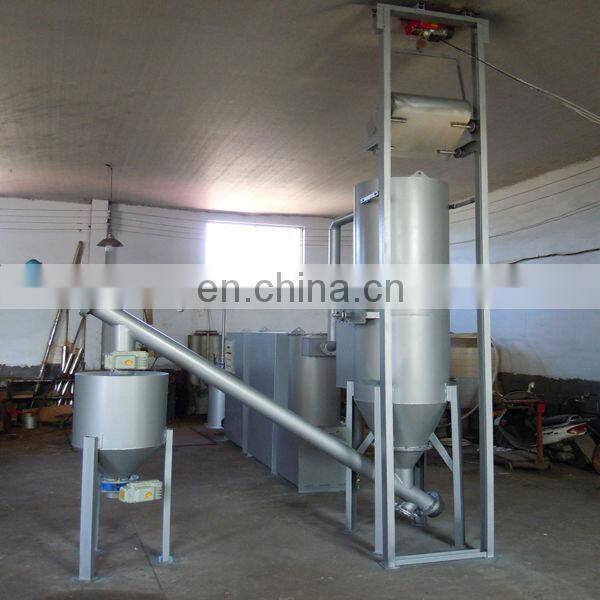

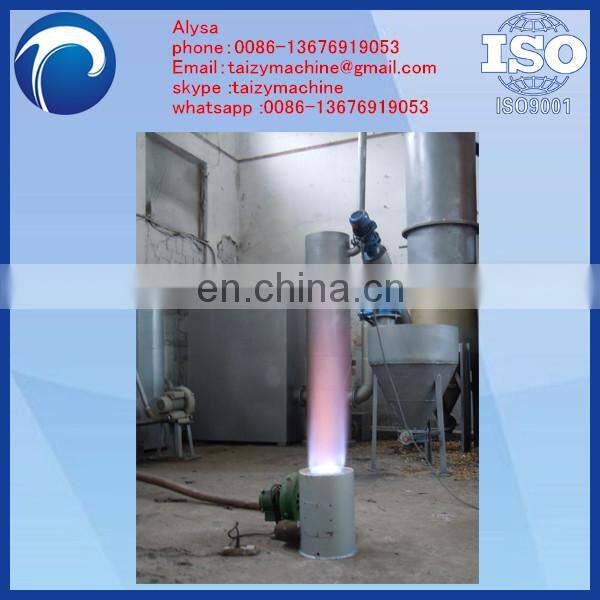

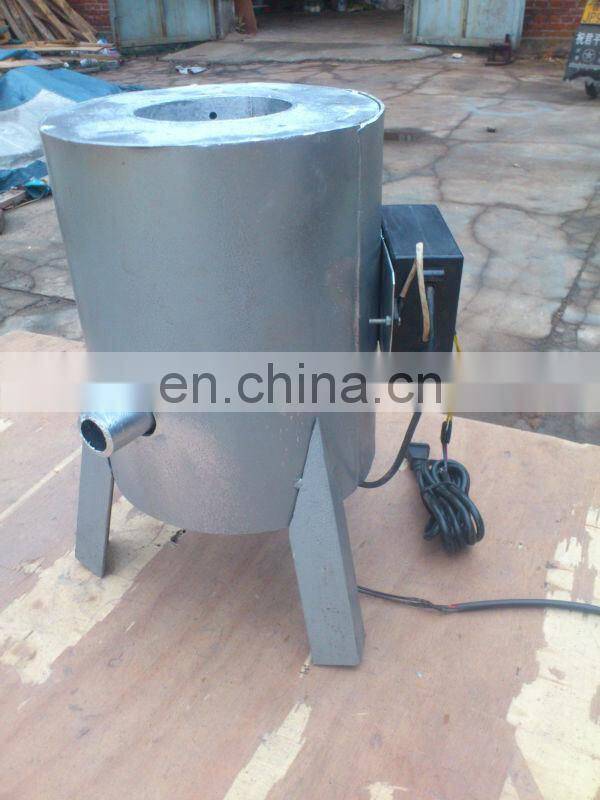

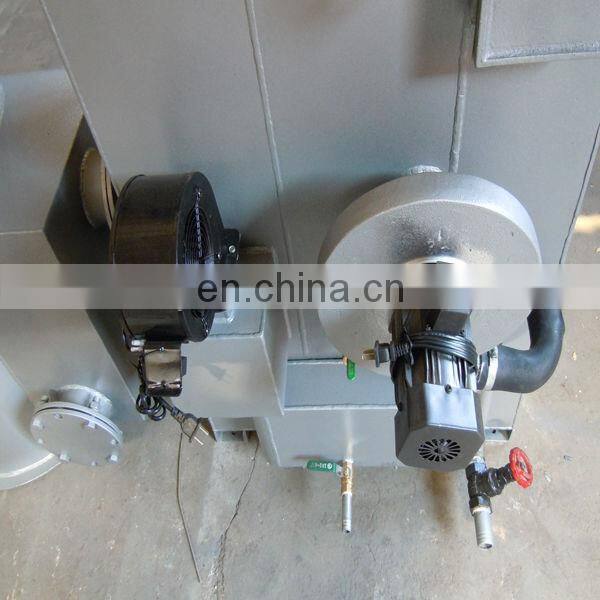

product show :

our service

1.pre--sale service

  1) sales person,project manager ,technical engineer,accountant staff

   2)professional responding team :would be very fastly and exactly

service:

   1)super and solid quality

    2)fastly delivery

    3)standard export package and as your demand

    4)24 hours online service

3.after-sale service

   1)assistance to bulid factory

    2)repairing and maintaining if the machine have any problem in warranty

    3)installion and clerk training

    4)spare and wearing parts for free  or with a big discount

    5)any feedback for machine can be told us ,and will try our best to support
