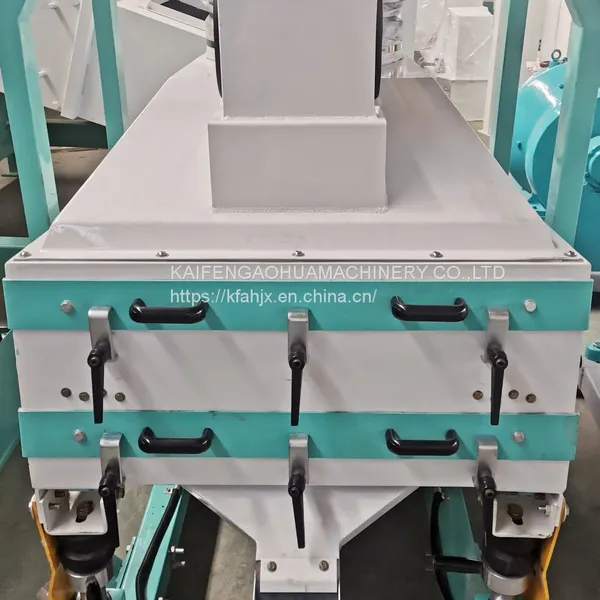

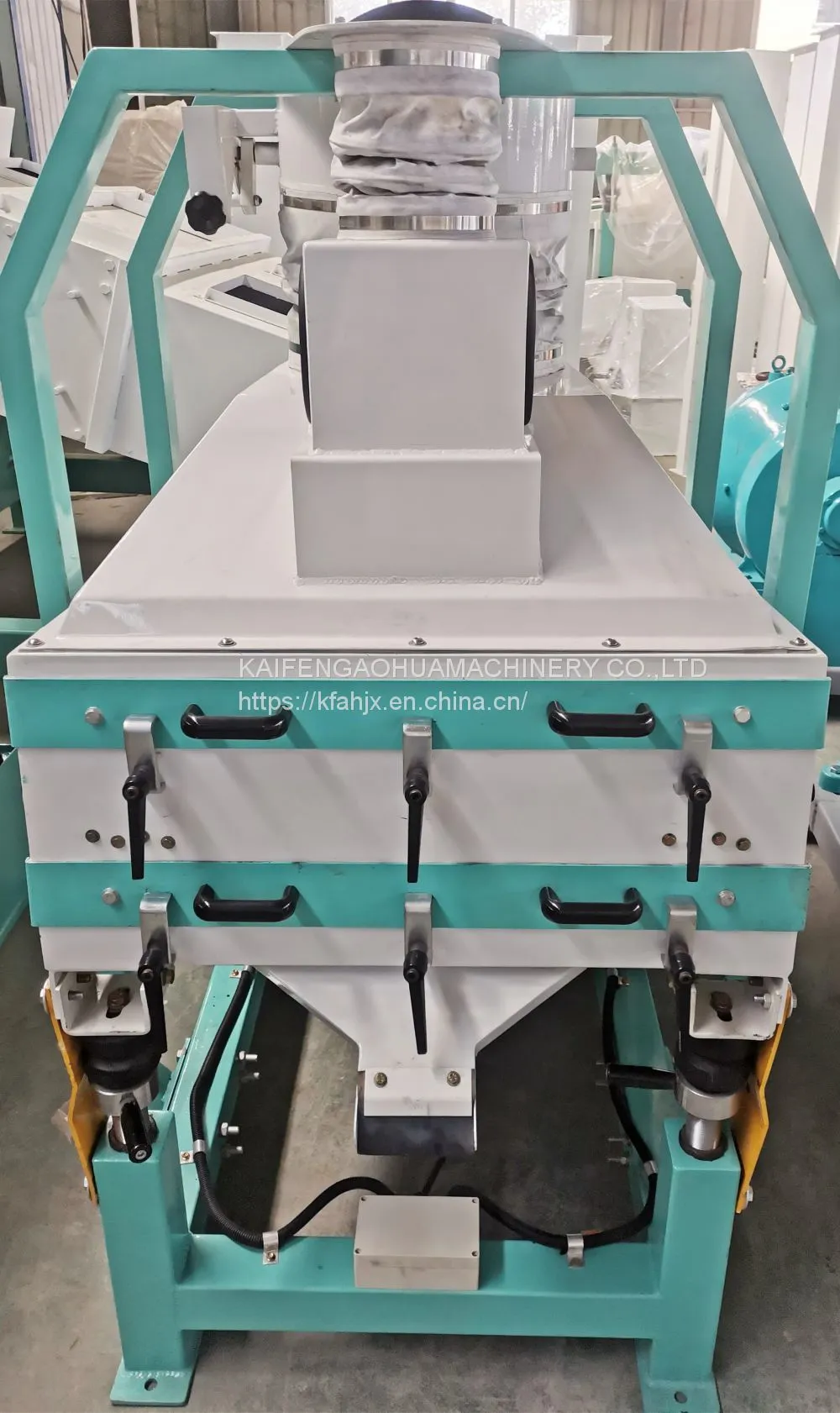

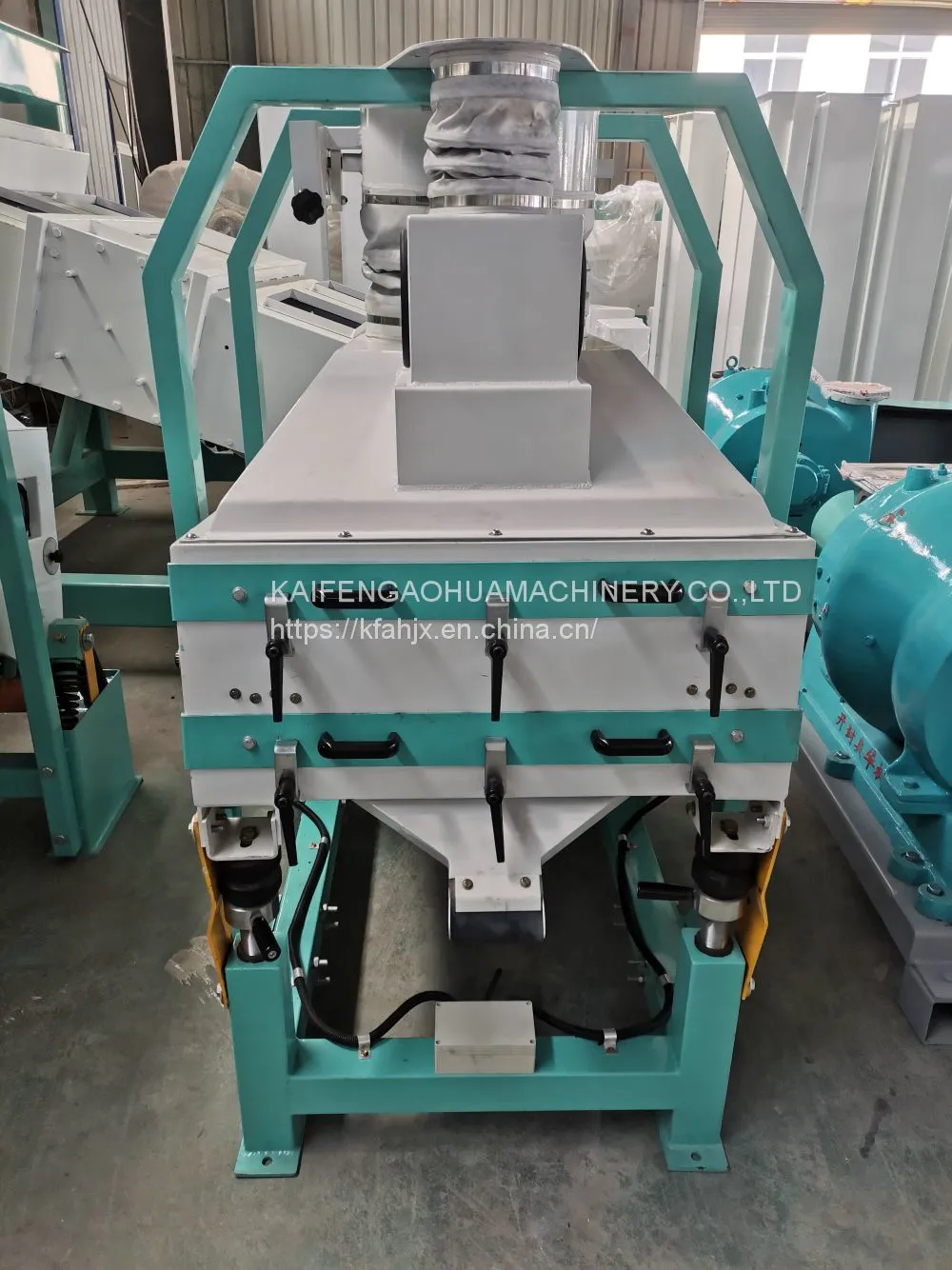

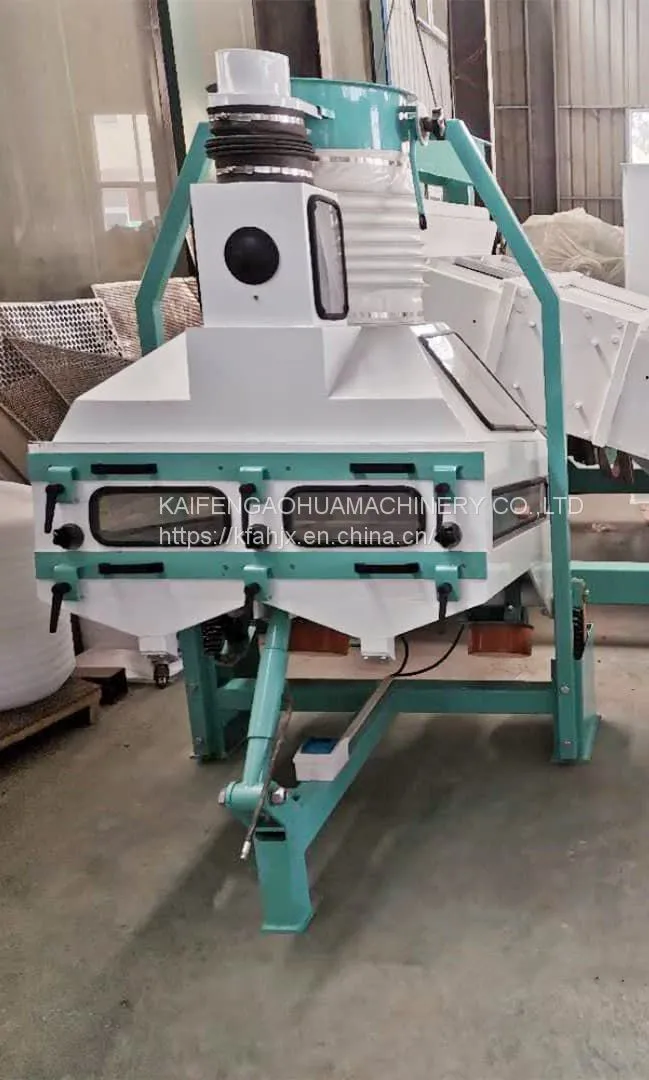

Product introduction: This equipment is suitable for grading and stone removal equipment for garlic, wheat, soybean, corn, etc. Due to the effect of wind selection, it can effectively remove impurities with a large proportion in the material, assist in cleaning the light impurities in the material, and effectively remove the light impurities in the grain particles. At the same time, it can also be used for seed selection of various grains.
Product features: a variety of structural forms of stone removal machine for users to choose, two layers of screen, upper layer classification, lower layer stone removal, large output, good stone removal effect, adjustable screen surface inclination angle, adjustable suction size, coil spring support Or rubber spring support, smooth operation and low energy consumption.
| Specifications | Sieve width [cm] | Yield【wheat】【t/h】 | Wind pressure [pa] | Suction volume [m2] | Amplitude【mm】 | Power【KW】 | Amplitude【times/min】 | Weight【kg】 | Dimensions [LxWxH] |
| TQSF100 | 100 | 7-9 | <980 | 8000 | 4-5 | 2x0.5 | 960 | 400 | 1500x1246x1900 |
| TQSF125 | 125 | 9-11 | <980 | 10200 | 4-5 | 2x0.5 | 960 | 500 | 1470x1496x1920 |
| TQSF150 | 150 | 11-14 | <980 | 12000 | 4-5 | 2x0.5 | 960 | 600 | 1220x1746x1920 |
| TQSF175 | 170 | 14-18 | <980 | 15000 | 4-5 | 2x0.5 | 960 | 750 | 1220x1900x1920 |
| TQSF200 | 200 | 16-20 | <980 | 17000 | 4-5 | 2x0.5 | 960 | 1000 | 1220x2292x1920 |
| TQSF250 | 250 | 20-22 | <980 | 20400 | 4-5 | 2x0.5 | 960 | 1050 | 1220x2835x2920 |
