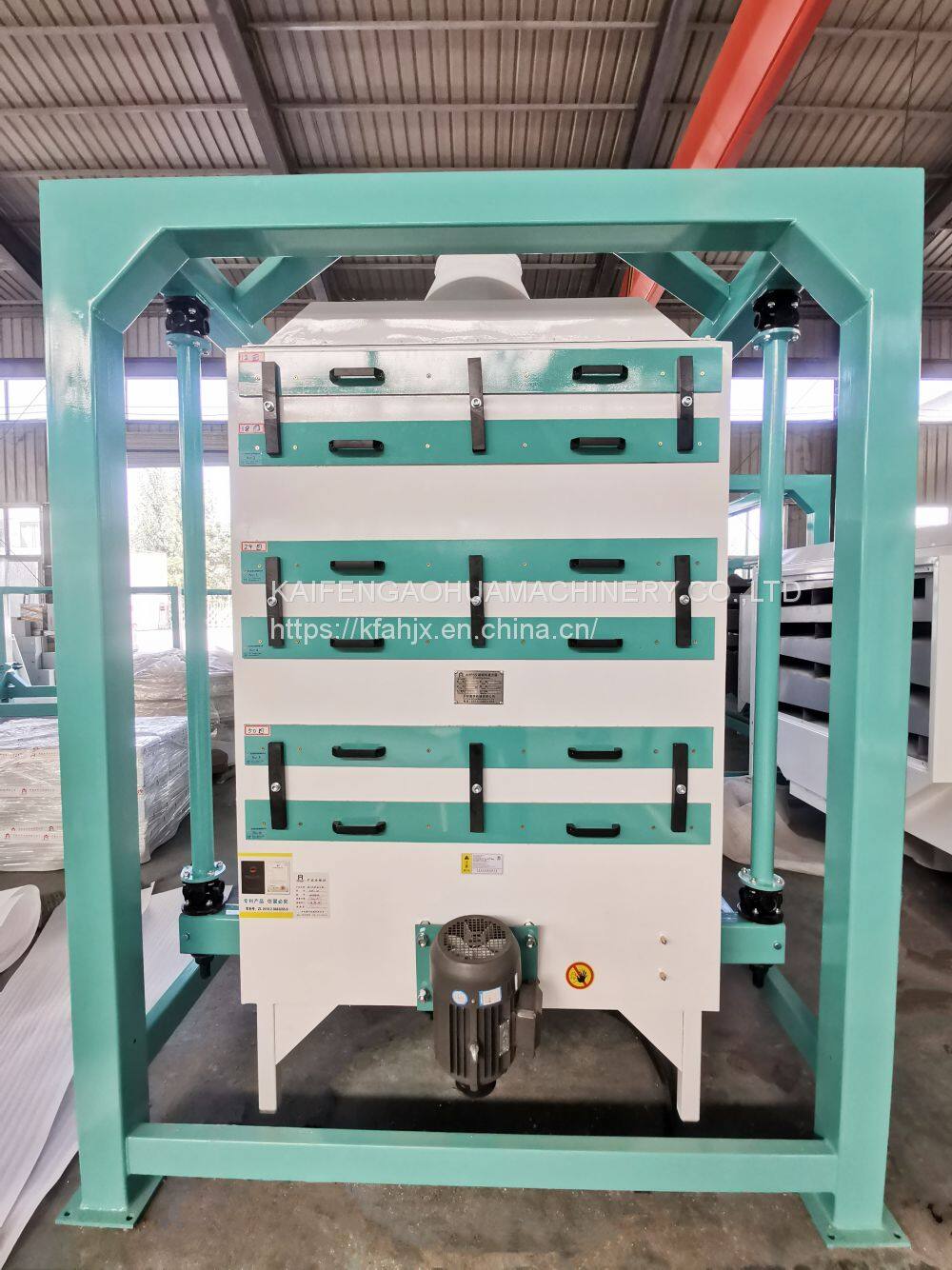

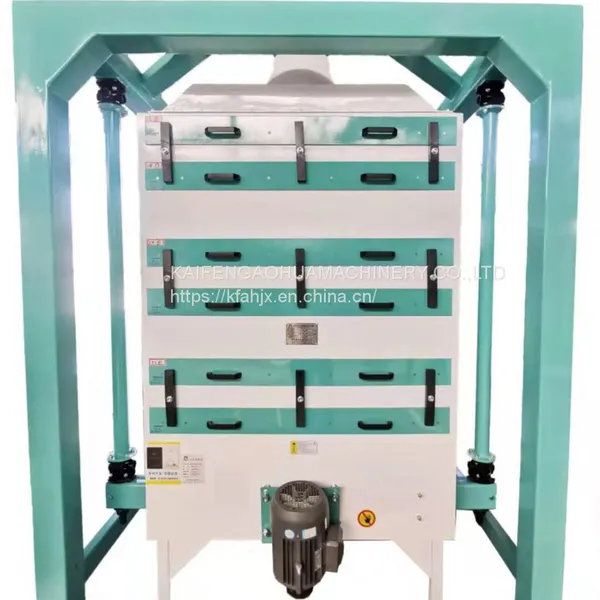

Product introduction: Coarse crushing safety screen generally has a crushing capacity of 20-30T/h. It is enough to choose a safety screen AHBXS125*190, and the installed screen mesh is 10 mesh. Reduce the unqualified products caused by the failure of the screen to replace the screen in time, and reduce the probability of returning materials.
Product features: adopt reasonable parameters, high speed, small turning radius, high sieving efficiency
The universal joint seamless steel pipe link is strong and durable, which makes the screen body run more smoothly and the material travels more smoothly. Small size, it can screen and classify a variety of materials to meet different process requirements. Small, very suitable for installing the screen box in the narrow place of the workshop. Strict dimensions, compact structure, good sealing, no leakage
The screen box adopts an enlarged, large-flow screen, and the screen area is 30% larger than that of the ordinary screen.
| Specifications | Processing capacity t/h | Power kw | Rotation diameter mm | Weight kg | Dimensions [LxWxH] |
| AHBXS125x190 | 20-25 | 2.2 | 45-55 | 1500 | 2540x1890x2100 |
| AHBXS160x220 | 40-50 | 3 | 50-60 | 2200 | 2850x2450x2540 |
