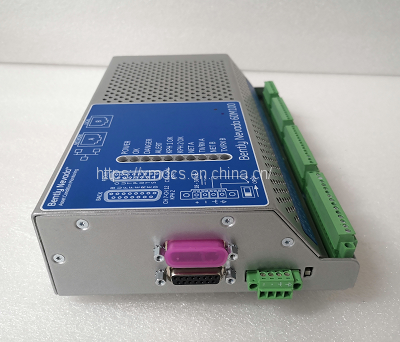

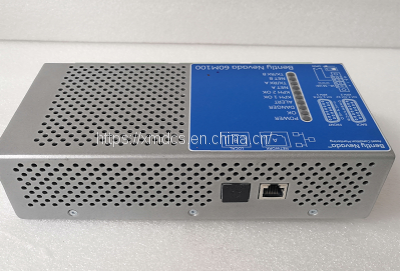

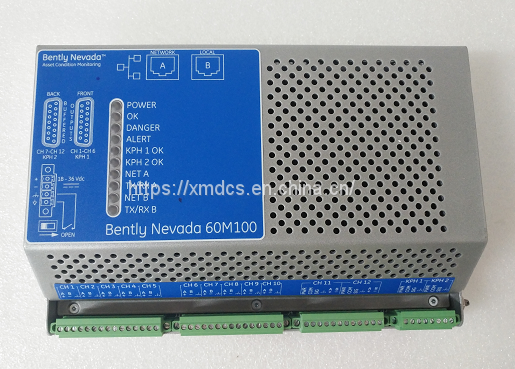

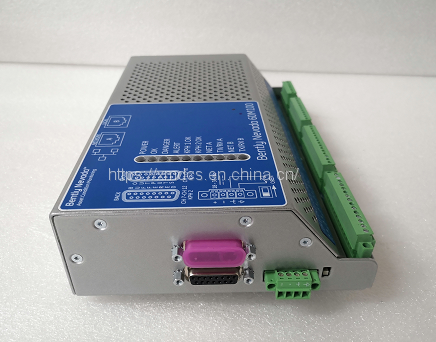

Bently Nevada 60M100-00 Programmable logic controller processor

I. Monitoring system

1. Continuous online monitoring system

A. 3500 series

B. 3300 series

C. 1900 series

D.ADAPT Wind fan online monitoring

2. Inspect the online monitoring system

A. Inspection monitoring

B.esential Insight.Mesh Wireless solution

C. nomAlert motor abnormal detection

Two, sensor

1. Eddy current sensor

2. Speed acceleration sensor

3. Pressure sensor

4. Shell expansion and valve position sensor

5. Optical sensor

Three, portable diagnostic instrument

1. Portable fault diagnosis equipment ADRE system: ADRE 408 DSPi hardware

B. Portable data acquisition and analyzer: ScOUT 100/140

Four, test and calibration equipment

Eddy current probe calibrator :TK-3 condition monitoring calibrator

Other test calibration equipment: Tester that uses Snapshot to test TIM

High precision micrometer

Rotor test stand

Velomitor Power supply module key believe sign multiplier/divider Torsional vibration signal regulator oscilloscope excuse module

Xiamen Xiongba Electronic Commerce Co. LTD

FROM：Mr. Wei

E-Mail：2322181769@qq.com

TEL/WeChat:15396237607

Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22m,

bently3500 Bentley power high voltage AC 220V, spare parts as follows

127610-01 AC power module

125840-01 High-Voltage AC Power Input Module (PIM)

125840-02 Low-Voltage AC Power Input Module (PIM)

129486-01 High voltage DC power module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 Low voltage DC power module

133300-01 Low Voltage DC Power Input Module (PIM)

Spare fuse (two types of AC PIM and HVDC PIM)

01720045 Spare Fuse (Low voltage DC PIM)

129677-01 Power Operation and Maintenance manual

The order information and model of Bentley power supply bently 3500/15 are as follows:

3500/15-AXX-BXX-CXX option description

A: Power supply type (upper notch)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

B: Power supply type (lower notch)

No power supply (only used if single power supply is required)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

C: Approve the unit option

00 without

01 CSA/NRTL/C

02 ATEX/IECEx/CSA (Class 1, Zone 2)

CN China

Specific models are as follows:

3500/15 (front panel 127610-01, rear panel 125840-01)

3500/15-02-02-00, upper notch and lower notch are installed, so dual power supply,

3500/15-02-00-00, upper notch is installed, lower notch is not installed, so it is a single power supply

3500/15-05-05-00, upper notch and lower notch are installed, so it is dual power supply

The following is the upgraded 3500/15 universal AC power module:

3500/15(106M1079-01 front panel, 106M1081-01 rear panel)

3500/15-05-05-00, upper notch and lower notch are installed, so it is a set of double power supply

3500/15-05-00-00, upper notch is installed, lower notch is not installed, so it is a set of single power supply
