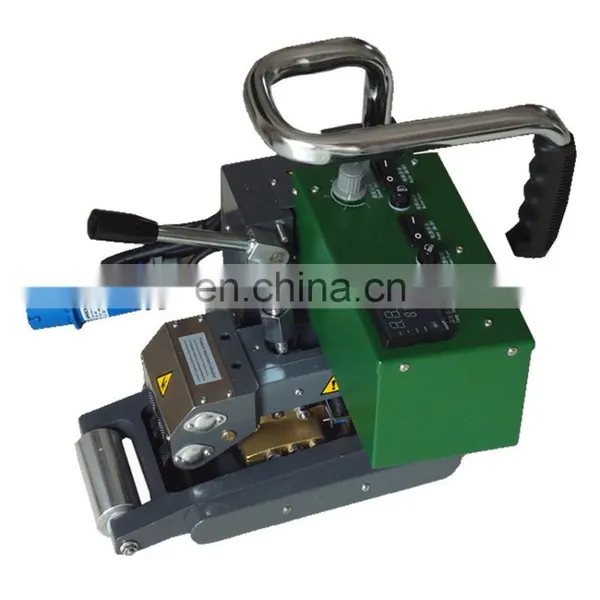

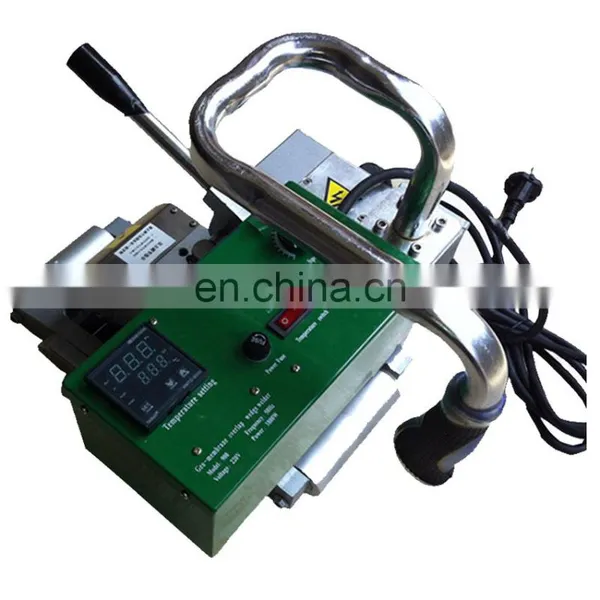

1800W 12cm Overlap width geomembrane plastic welding machine
Our company have different model geomembrane hot wedge welder machine , such as CL800 , CL810 , CL812 and CL900 , our machine can meet different Overlap width . Our machine mainly meet 10cm , 12cm , 15cm and 20cm overlap width .
Product Description
The machine is excellent in performance and easy for operation, with high welding speed and good work quality, it’s extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on. It is available for welding HDPE, LDPE, EVA, PVC, ECB,PP and other hot melt materials
Application

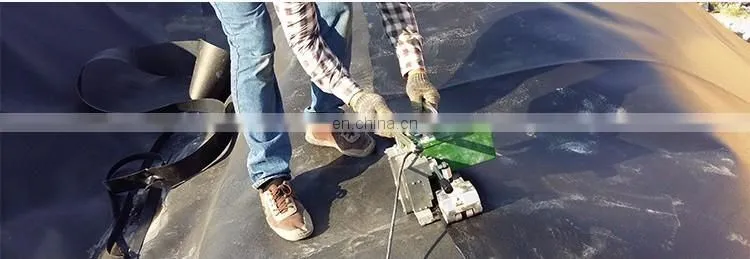

Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project, lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project, minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing project etc.
Mainly technical data
| Voltage | 220V |
| Frequency | 50HZ/60HZ |
| Power | 1800W |
| Welding speed | 6m/min |
| Heating temperature | 0-450 degree |
| Thickness of materials to be welded | 1mm-3mm |
| Overlap width | 120mm |
| welding width | 15mm*2 , interior cavity 15mm |
| Seam strength | 85% base material |
| Gross weight | 19kg |
Operation principle
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain, slide carriage drive the hot wedge and insert it between base materials, at the same time lever presses pressure rollers and engages the two fused base materials
Maintenance
1.The complete machine should be cleaned , greased and placed in a dry place in a dry place if it is not used .
2. For PVC welding , the adhesions on hot wedge should be cleaned off if it is not used longer than 4 hours to prevent wedge corrosion and service life being shortened .

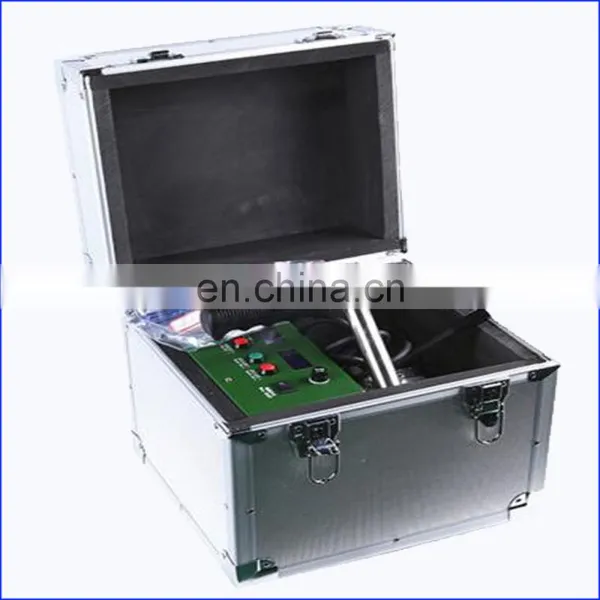

1 . Packing by aluminium box
2 . Packing size : 50cm*37cm*40cm
3. Shipping by express , such as DHL , Fedex or other way .
1. Our machine warranty one year
2. When shipping machine , we will provide necessary accessories .
3.We will provide best technical Support .
4. Fast shipping product .
Regarding our welding machine , if you interesting it , please free to contact us , we will do our best for you .
