hdpe geomembrane welding machine for sale

hdpe geomembrane welding machine for sale

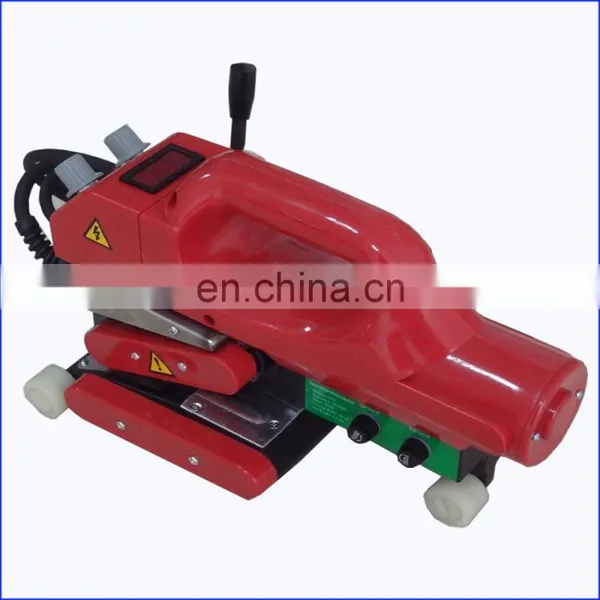

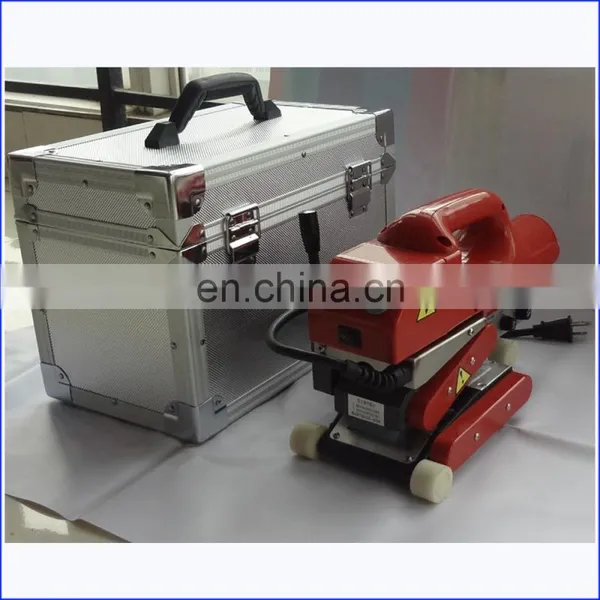

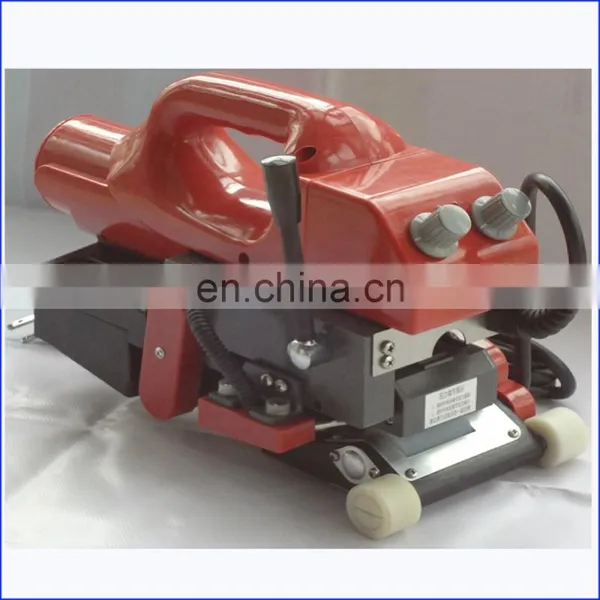

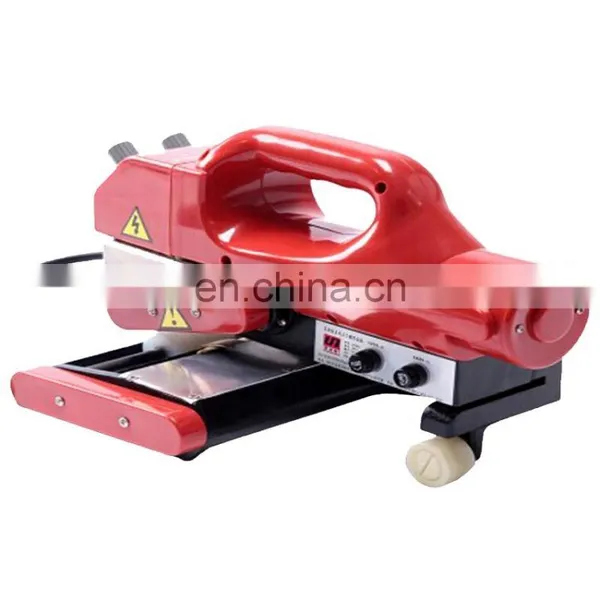

CL800 series geomembrane welding machine is can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on . It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on .

Feature

1. The series welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation

2. Speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor . It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load.

3. Also this series welding machine is stable in performance despite of external temperature and voltage variation

4. This series welding machine is easy operating ,high welding speed and good work quality

Technical data

Operation principle

Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain . Slide carriages drive the hot wedge and insert it between the two base materials , at the same time lever presses pressure rollers and engages the two fused base materials .

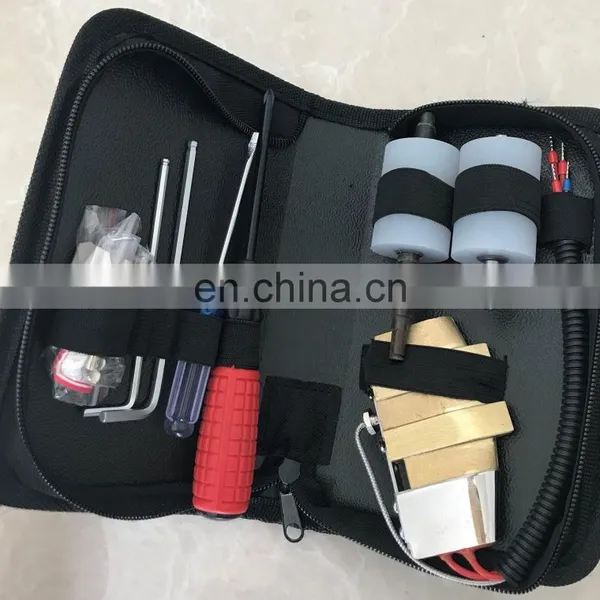

Supplied Accessories

Protector tube : 4pc ( 2pc 4A and 2pc 1A)

Cross rubber pad for coupling : 1pc

Philips driver : 1pc

Inner hexagonal spanner : 2pc

Slilica gel wheel : 1pair

Regarding our machine , if you need more information about it , please free to contact u , we will do our best for you .
