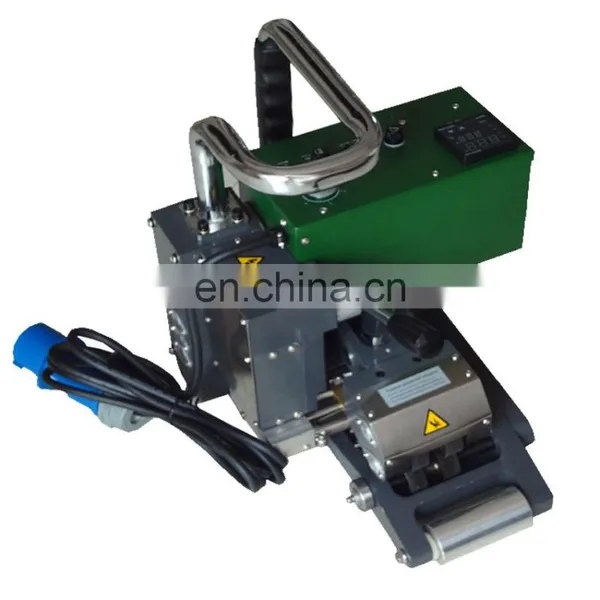

Plastic Geomembrane Film Hot Wedge Climbing Welder
Product Description
CL900 series geomembrane welding machine with a display controller is small, light, high welding efficient. Which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on

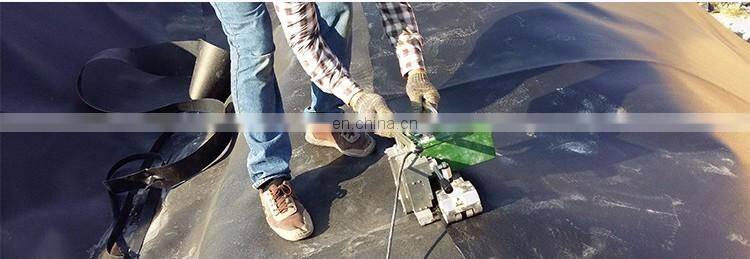

This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on .
Operation principle
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain . Slide carriages drive the hot wedge and insert it between the two base materials , at the same time lever presses pressure rollers and engages the two fused base material
Technical data
| Votage | 220V |
| Power | 1800W |
| Frequency | 50HZ/60HZ |
| Heating temperature | 0-450°C |
| Thickness of material | 1mm-3.5mm |
| Overlap width | 120mm |
| Welding width | 15mm×2, interior cavity 15mm |
| Gross weight | 19Kg |
| Seam strength | ≥85% base material (tensile resistant in shear direction) |
Precautions
1.Use with grounded 3 cords mains cable and socket , plug will not be modified without prior permission
2.For good welding quality , please assign specified personnel for operation
3.Pressure roller will not engage on free running
4.Do not operate when it is exposed to water to prevent inferior quality
5.The machine has been regulated before leaving factory . Please don’t adjust it at all .
6.Preheat for 30 minutes before start up .
Supplied Accessories
1. Hot wedge
2. Steel pressure wheel
3. Temperature controller
4. Relay

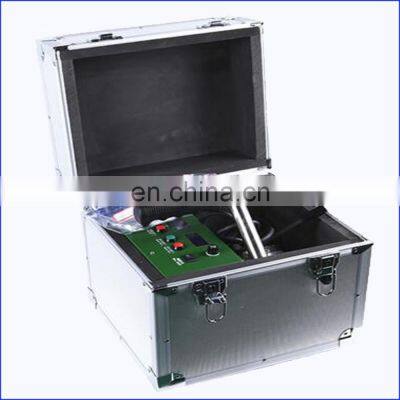

1 . Packing by aluminium box
2 . Packing size : 50cm*37cm*40cm
3. Shipping by express , such as DHL , Fedex or other way .
1. Our machine warranty one year
2. When shipping machine , we will provide necessary accessories .
3.We will provide best technical Support .
4. Fast shipping product .
Regarding our welding machine , if you interesting it , please free to contact us , we will do our best for you .
