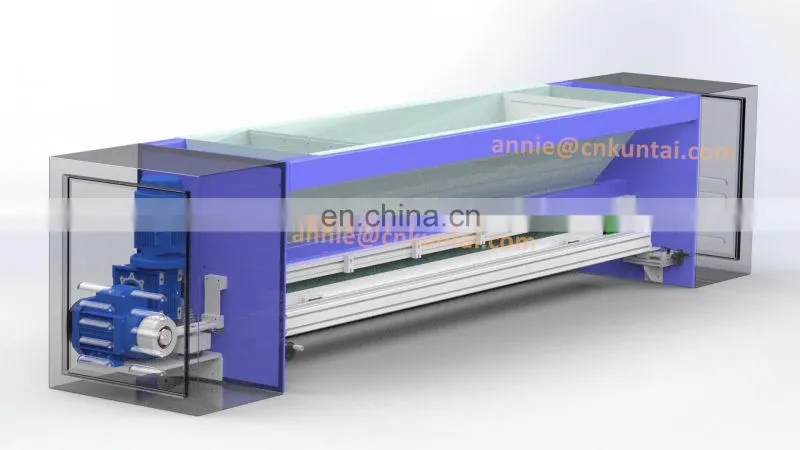

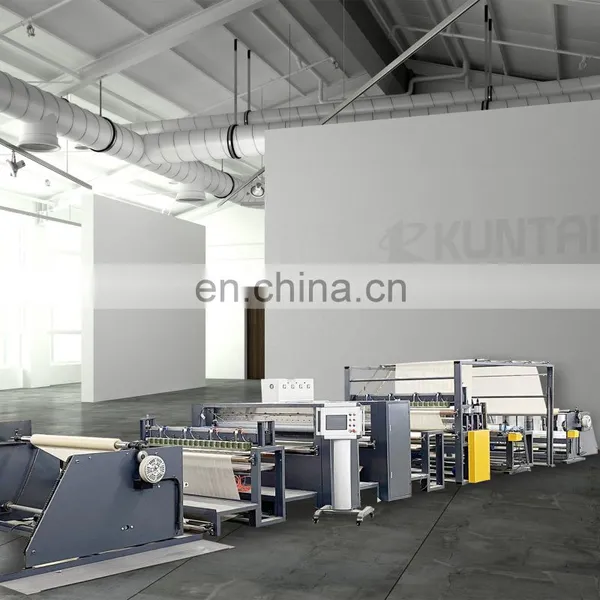

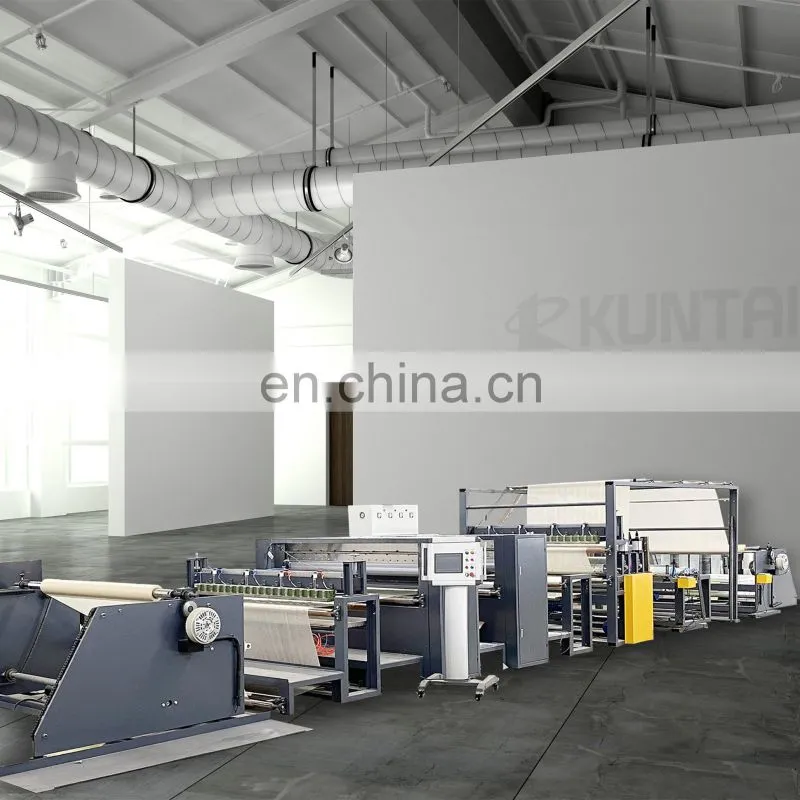

Activated Carbon Scattering Laminating machine for Automotive Air Conditioner
General Principle: Spray hot melt adhesive in fibrous form onto the base material and scatter carbon materials onto the hot melt adhesive surface to realize attachment and laminating another layer of base material using hot melt adhesive. Compared with traditional line of pre-stirring carbon and powder, this spray-scatter new technology does not need high-power drying oven.The amount of hot melt adhesive and powder can be set as per user needs.
Application: Automotive interiors, filter consumables, home furnishing, building decoration materials and other industries.
Main Features:
1) The temperature is controlled by intelligent digital display temperature control instrument. The temperature difference is less than +-2 celcius degree. The operation panel design is humanized and easy to operate.
2) Large internal space, easy heat dissipation and good heat insulation effect.
3) Frame-type fuselage structure and openable control cabinet door design make installation and maintenance simple and quick.
4) Well-known brand electrical parts will be used.
5) High-precision gear pump, stable glue volume pressure output, stable glue volume control, improve production efficiency.
6) The fine filtering device removes impurities, keeping the glue flowing smoothly and prevents the nozzle from clogging.
7) High-precision return valve is equipped to keep the glue output stable.
8) The drive adopts frequency conversion synchronization control system to ensure that the machine speed is synchronized with the powder scattering, so that the powder amount is well and stably controlled.
| Model | KT-2000A |
| Maximum Material Width | 1200, 1400, 1600, 1800, customizable |
| Machine Roller Width | 1400, 1600. 1800, 2000, customizable |
| Gluing Amount | 5-10gsm, customizable |
| Machine Speed | 5-25m/min |
| Power | 30-70kw |
| Nearby Power Supply | 220v, 380v, customizable |
| Weight | 7000-20500kgs |
| Dimension | 11800x2900x3600mm |
